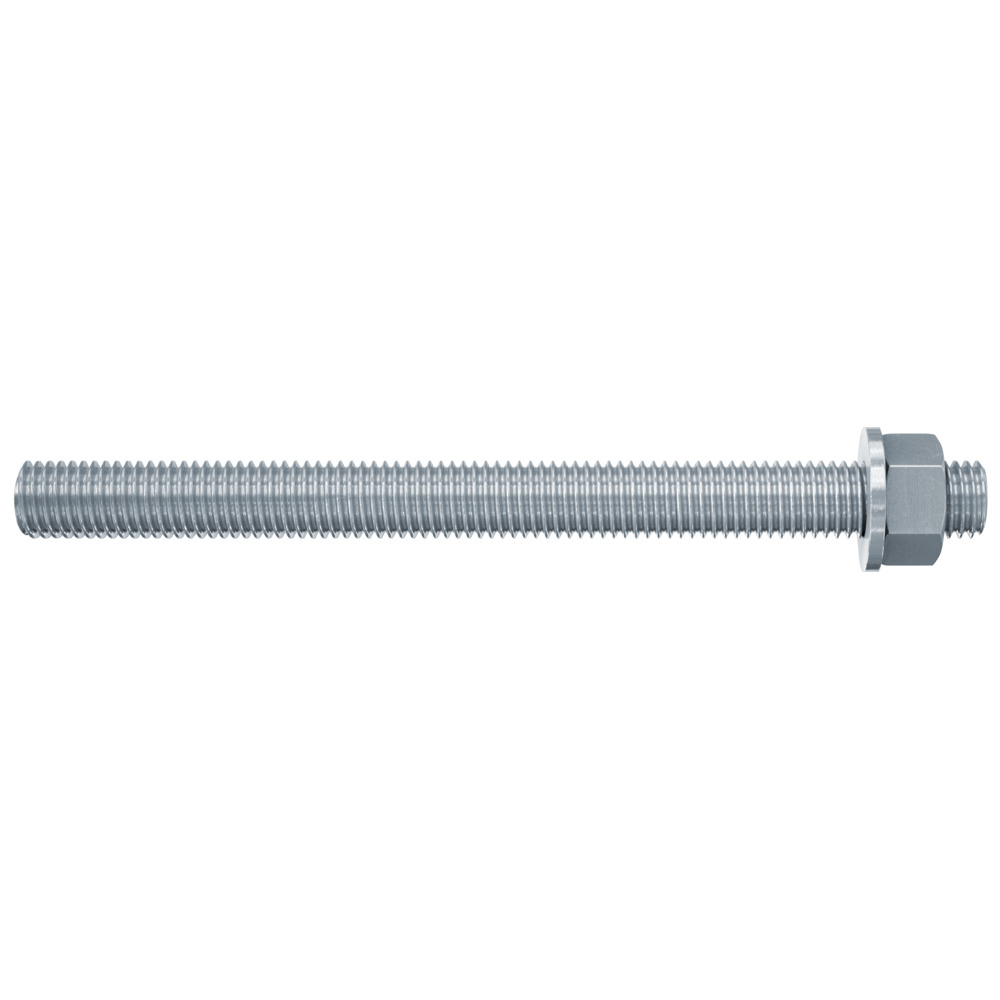

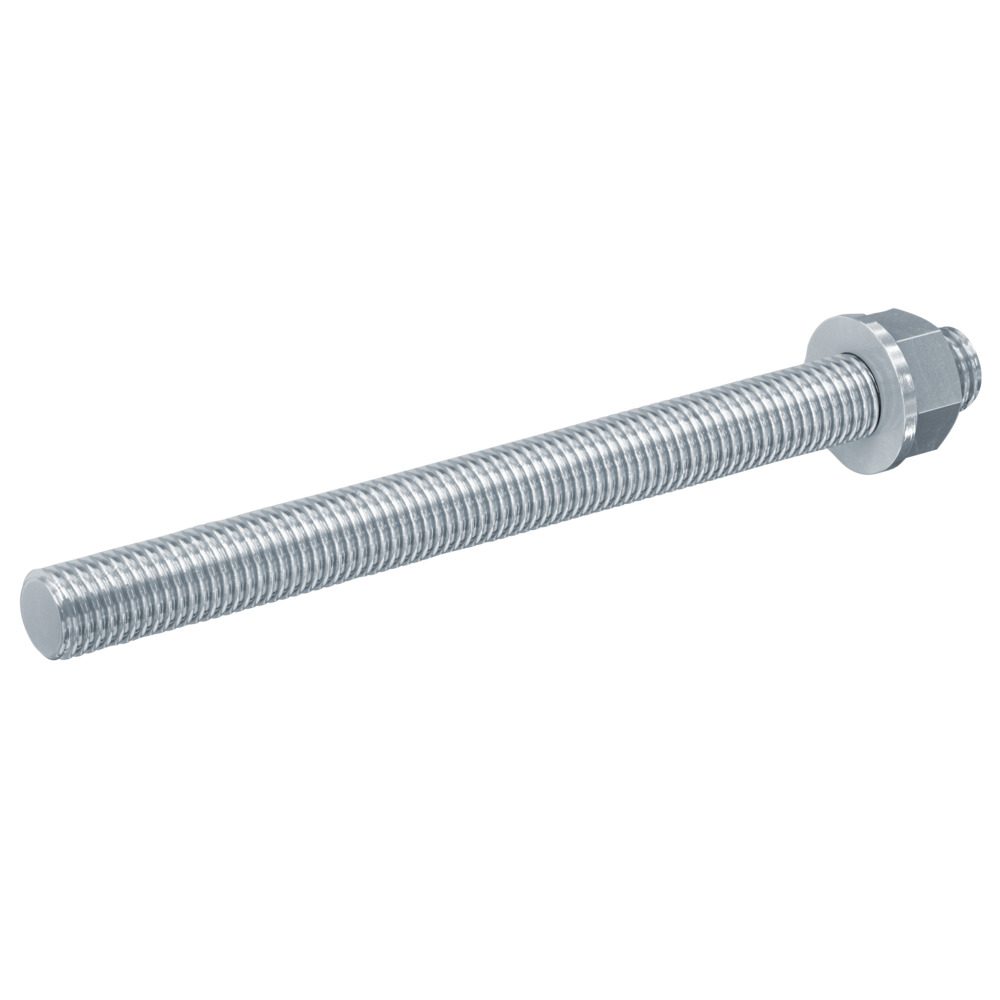

fischer Threaded Rod FIS AM 12X120 gvz steel grade 5.8

The FIS A versatile rod anchor

Price : 1604.80 ₹
Available Product Variants
Top Features
  • The universal solution for various fischer injection mortars. For a manageable range and simpler storage.
  • Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various fischer injection mortars.
  • Optimum load adaptation due to variable anchorage depths. This lowers installation and material costs.
Product Picture
Product Picture
Application Picture
Product Picture
Product Picture
Application Picture
1   1
Variant Art.-No. 44971 fischer Threaded Rod FIS AM 12X120 gvz steel grade 5.8
ETA-approval
Drill diameter 14 [mm]
Packaging Folding-box
Quantity/pack 10 [St.]
GTIN (EAN-Code) 4006209449714
Price / Pack 1604.80 ₹

Product Description

The fischer threaded rod FIS A is a system component for use with the fischer injection mortars FIS PM, FIS SB, FIS EM Plus, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN. In accordance with the relevant approval of the injection mortar used, the threaded rod is suitable for the fixation of steelwork constructions, staircases, and machines into numerous building materials both inside and outside. The extensive assortment in diameters M6 - M30, different lengths, and different steel grades enables extremely diverse applications. The approvals of the various injection mortars must be observed.
Advantages
  • The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements, thus allowing for a wide range of applications.
  • The wide range of approved threaded rods FIS A from M6 to M30 allows for various applications.
  • Please refer to the approvals of the injection mortar used.

Application and Permission

Applications
  • Anchorings with the injection mortars FIS PM, FIS SB, FIS EM Plus, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN
Building materials
  • In connection with several fischer injection mortars the threaded rod FIS A is approved or suitable for different building materials.

* You can find detailed information on building materials in the registration document.

Permission

  • ETA-02/0024, ETAG 001-5
  • DoP 0188
  • DoP No. 0007
  • DoP No. 0072
  • DoP No. 0094 - EN
  • ESR-3572
For Details see corresponding Documents

Assembly Instruction

Functionality
  • The threaded rod FIS A is suitable for pre-positioned and push-through installation.
  • FIS A is set manually into the drill hole, by lightly rotating it until it reaches the drill hole base.

Technical Data

Technical Data

ETA-approval
Drill diameter 14 [mm]
Packaging Folding-box
Quantity/pack 10 [St.]
GTIN (EAN-Code) 4006209449714
Legend = Permission Available — = Permission not Available

Documents for Downloading

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 4 MB) European Technical Assessment for Injection System fischer FIS V - Bonded anchor for use in concrete ETA-02/0024, ETAG 001-5 13-05-2020
DOP - Declaration of Performance (PDF, 4 MB) DoP 0188 27-05-2020
DOP - Declaration of Performance (PDF, 2 MB) Declaration of Performance fischer Injection resin FIS V, according European Technical Assessment ETA-02/0024 DoP No. 0007 05-02-2015
DOP - Declaration of Performance (PDF, 5 MB) Declaration of Performance fischer Injection resin FIS V, according European Technical Assessment ETA-02/0024 DoP No. 0072 24-06-2016
DOP - Declaration of Performance (PDF, 6 MB) Declaration of Performance fischer Injection resin FIS V, according European Technical Assessment ETA-02/0024 DoP No. 0094 - EN 20-02-2017
ICC-approval (PDF, 1 MB) ESR-3572 30-04-2001 30-04-2021
