fischer Hammer Fix N 8 x 60/20 S with countersunk head gvz

The hammer-in plug for a simple, fast and economical installation

Price : 726.88 ₹
Available Product Variants
Top Features
  • Fast Hammerset installation saves time: ideal for series installation.
  • Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading.
  • Subsequent dismantling of the nail screw with a cross-slot recess is possible.
  • With countersunk head.
Product Picture
Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 50356 fischer Hammer Fix N 8 x 60/20 S with countersunk head gvz
Drill diameter 8 [mm]
Anchor length 60 [mm]
Max. fixture thickness 20 [mm]
Drive PZ3

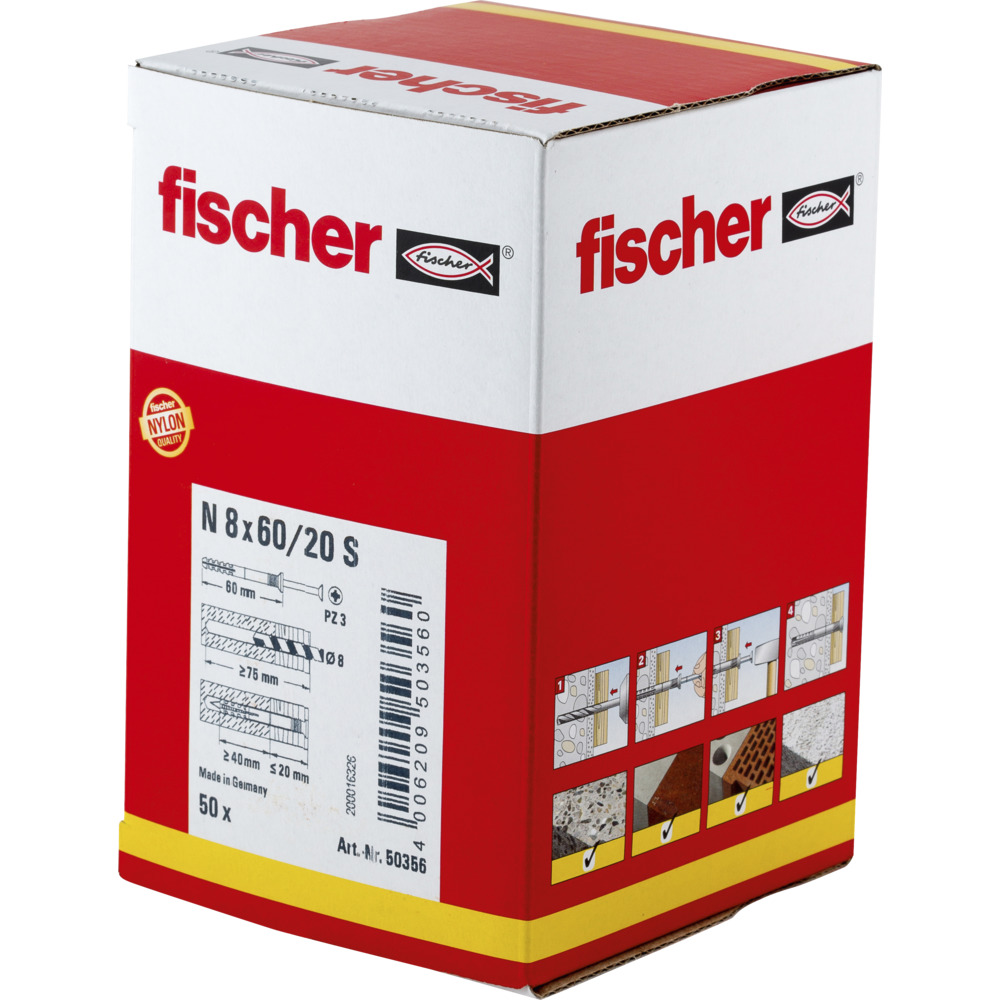

Packaging Foldingbox
Quantity/pack 50 [St.]
GTIN (EAN-Code) 4006209503560
Price / Pack 726.88 ₹

Product Description

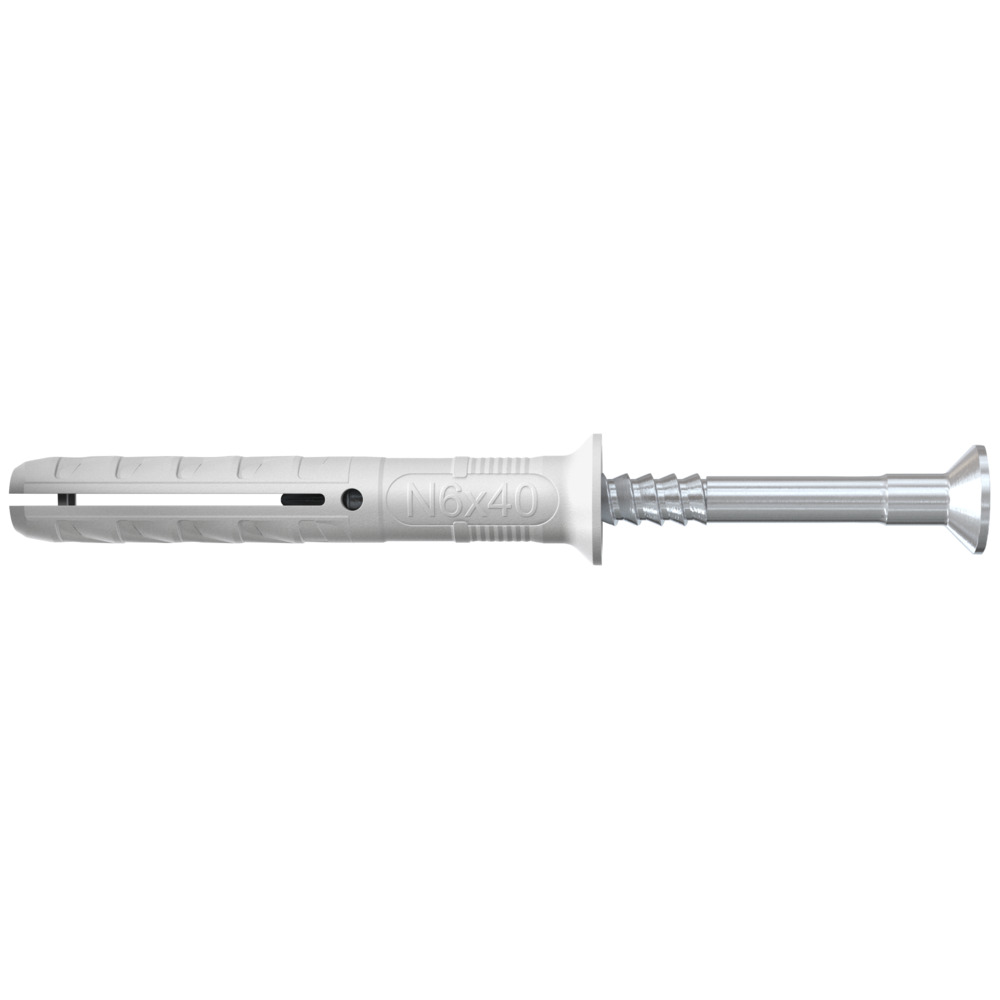

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.
Advantages
  • The rapid hammerset installation reduces the amount of time required and allows for an economic series installation.
  • The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation.
  • Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling.
  • The wide range of diameters and usage lengths provides the correct plug for every fixing.

Application and Permission

Applications
  • Substructures made of wood
  • Wall connection or plaster profiles
  • Cable and pipe clips
  • Perforated tapes
Building materials
  • Concrete
  • Solid sand-lime brick
  • Building brick
  • Natural stone
  • Solid brick made from lightweight concrete
  • Aerated concrete
  • Solid panel made from gypsum
  • Vertically perforated brick
  • Perforated sand-lime brick
  • Hollow blocks made from lightweight concrete

You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality
  • Suitable for push-through installation.
  • When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
  • Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Drill diameter 8 [mm]
Anchor length 60 [mm]
Max. fixture thickness 20 [mm]
Drive PZ3
Packaging Foldingbox
Quantity/pack 50 [St.]
GTIN (EAN-Code) 4006209503560
