fischer Universal FireStopping Sealant UFS 310

Universal firestopping sealant which is suitable for metallic, non-metallic services and construction joints

Price : 163123.20 ₹
Available Product Variants
Top Features
  • Water based.
  • Low VOC.
  • Excellent acoustic properties.
  • Freeze - thaw capabilities.

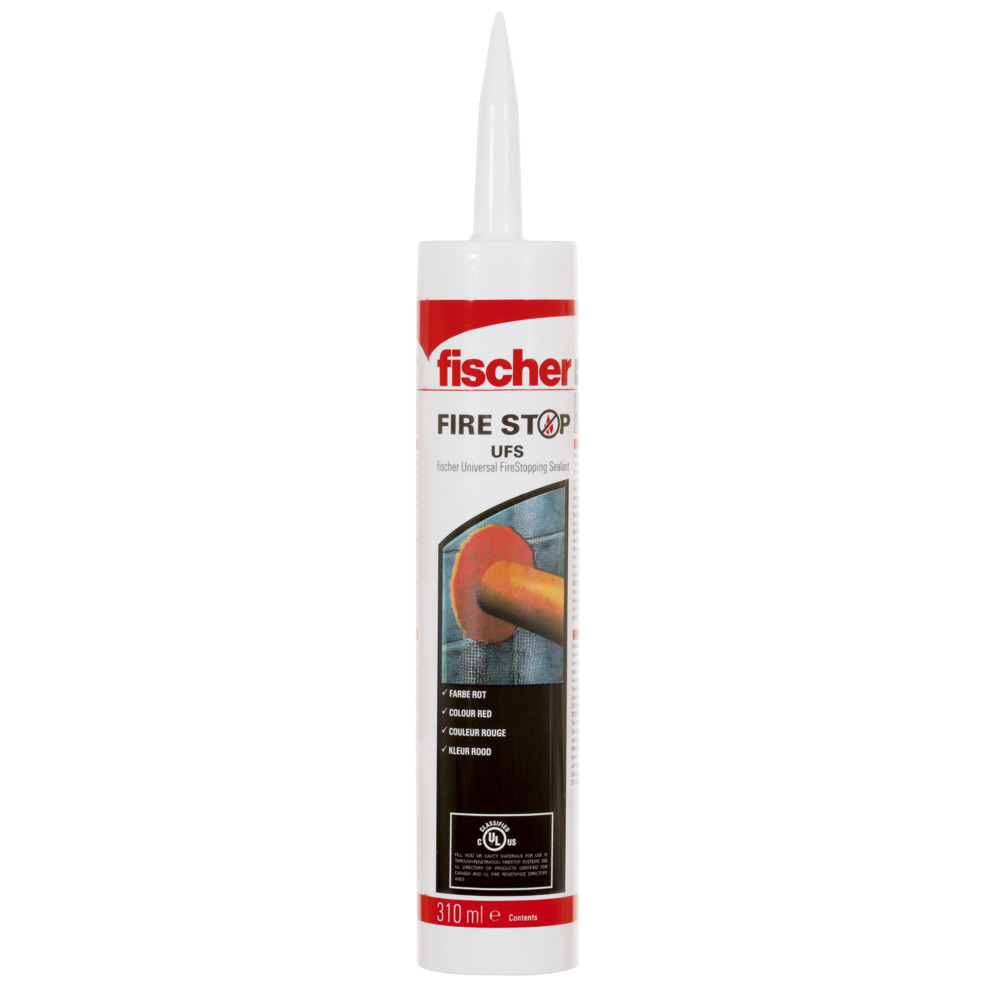

Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 516538 fischer Universal FireStopping Sealant UFS 310
Languages on the cartridge DE,FR,EN,NL
Contents 310 [ml]
GTIN (EAN-Code) 4048962138719
Price / Pack 163123.20 ₹

Product Description

fischer UFS 310 is a one part water based intumescent sealant which is used for sealing construction joints and service penetration in both vertical and horizontal applications. Tested in accordance with ASTM E 814 (UL1479) ASTM E 1966 (UL2079) ASTM E 84 (UL723) the fischer UFS 310 can provide upto 4 hours fire rating. Vast testing with a variety of service penetrations and joint configurations makes it a universal firestop for most applications. properties and is formulated to be halogen and solvent free.
Advantages
  • Water based
  • Flexible set
  • Contains mould growth inhibitor
  • Freeze - thaw capabilities
  • Paintable
  • Accelerated age and humidity tested
  • Low VOC
  • Excellent acoustic properties

Application and Permission

Applications
  • Metallic services: steel and cast iron 20“ (500 mm) - copper 6“ (150 mm)
  • Non metallic service: PVC 2“ (51 mm open) 3“ (75 mm closed)
  • Insulated service: 20“ (500 mm)
  • Construction joints: 4“ (100 mm)
  • HVAC 100“ (2500 mm)
  • Cable bunches 4“ (100 mm): busway 27“ (686)
Building materials
  • Wall constructions - linear joints
  • Floor constructions - linear joints
  • Flexible wall
  • Masonry
  • Concrete

Assembly Instruction

Functionality
  • UFS 310 is a one-part water-based intumescent sealant which is used for sealing construction joints and service penetration in both vertical and horizontal applications.
  • Up to 4 hours of fire rating can be provided.
  • It exhibits excellent slump characteristics, is easy to apply and cures to a flexible set. It is suitable for internal applications and conditions where dynamic movement may occur.
  • UFS 310 can be used for most application properties.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Languages on the cartridge DE,FR,EN,NL
Contents 310 [ml]
GTIN (EAN-Code) 4048962138719
Legend = Permission Available — = Permission not Available
