fischer Firestop FiAM310

Flexible fire resistant acoustic mastic

Price : 424.80 ₹
Available Product Variants
Top Features
  • Up to 5 hours fire resistance.
  • Movement capability ± 25 %.
  • Halogen and solvent free.
  • Low VOC.
  • Water based.

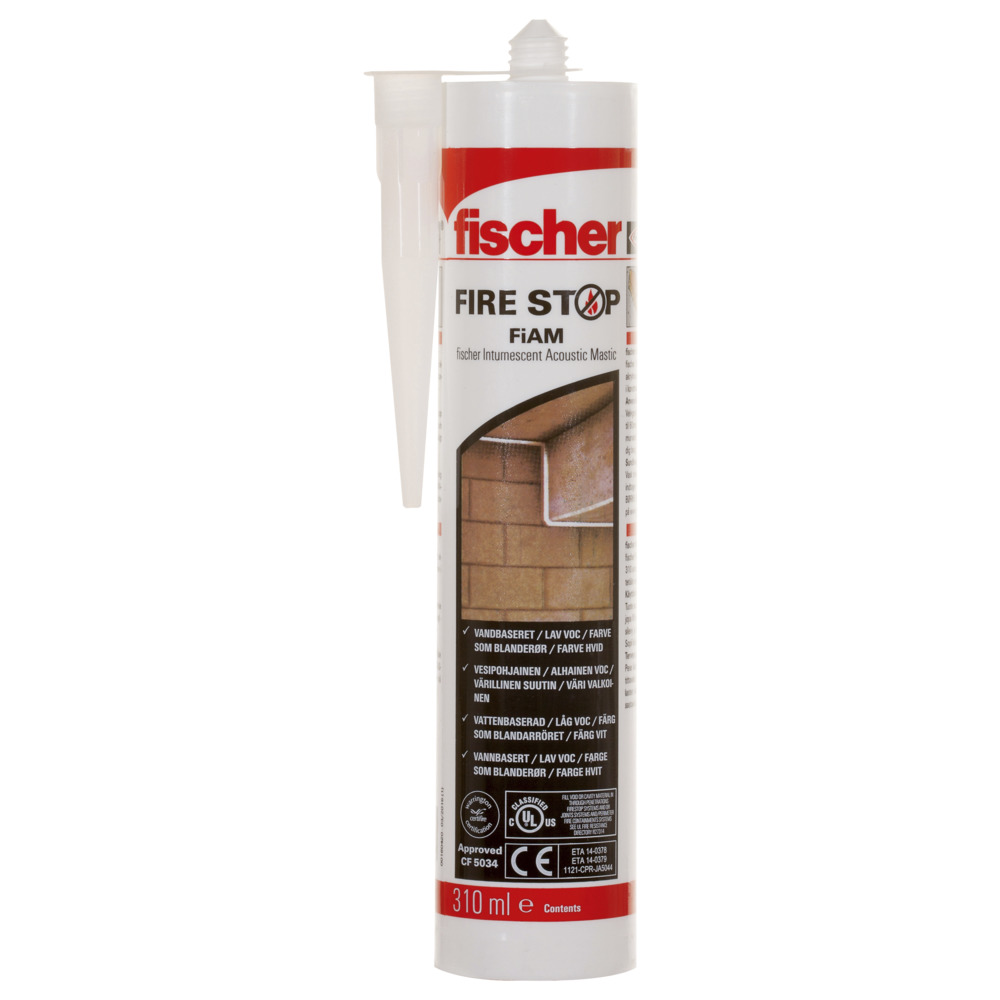

Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 53011 fischer Firestop FiAM310
ETA-approval
Languages on the cartridge DE,FR,EN,IT
Contents 310 [ml]
GTIN (EAN-Code) 5012184530117
Price / Pack 424.80 ₹

Product Description

fischer FiAM is a one part water based acrylic emulsion that can provide up to 5 hours fire resistance when used in construction joints and services in both vertical and horizontal applications. When exposed to fire, it reacts to form a highly insulative char that slows down heat transfer, and provides a barrier to fire seal. Tested to BS EN1366-3 & 4, UL 2079 and BS476-20 the FiAM is also ETA appoved and CE Marked. Formulated to be halogen and solvent free the FiAM exhibits excellent slump characteristics and has been designed to maintain the sound reduction index of a structure.
Advantages
  • Water based
  • Low VOC
  • Movement capability ± 25 %
  • Excellent acoustic properties
  • Approved for infinite linear gap length
  • Halogen and solvent free
  • Paintable and excellent slump characteristics

Application and Permission

Applications
  • Metallic pipes: 6" (159 mm)
  • Cable trays: 18" x 2" (450 x 50 mm)
  • Cable bunches: 3" (80 mm)
  • Linear joints: flexible and rigid construction elements
  • Joints between FCPS coated panel system
Building materials
  • Flexible wall constructions
  • Rigid floor and wall constructions
  • Masonry
  • Concrete
  • Timber
  • Steel
  • FCPS System

Permission

  • DoP: FS_01_2020-J
  • DoP: FS_01_2020-P

Assembly Instruction

Functionality
  • FiAM is a one-part water-based acrylic emulsion.
  • It has a fire resistance of up to 5 hours when used in construction joints and services in both vertical and horizontal applications.
  • When exposed to fire, it reacts to form a highly insulative char that slows down heat transfer and provides a barrier to fire seal.
  • It is suitably compatible in a variety of materials, and is utilised within the FCPS which is designed to seal large openings in fire rated floors and walls.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Languages on the cartridge DE,FR,EN,IT
Contents 310 [ml]
GTIN (EAN-Code) 5012184530117
Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 431 KB) 06-05-2020
ETA - European Technical Assessment (PDF, 597 KB) 06-05-2020
DOP - Declaration of Performance (PDF, 1 MB) DOP - Declaration of Performance DoP: FS_01_2020-J 13-05-2020
DOP - Declaration of Performance (PDF, 1 MB) DOP - Declaration of Performance DoP: FS_01_2020-P 13-05-2020
