fischer Firestop FiWS-2 Intumescent Wrap Strip

Universal intumescent wrap strip for sealing combustible services

Price : 9912.00 ₹
Available Product Variants
Top Features
  • Efficient and effective for sealing of pipe openings in floors and walls.
  • Easy to fit.
  • Up to 4 hours fire resistance.
  • Moisture resistant.
  • Freeze thaw characteristics.

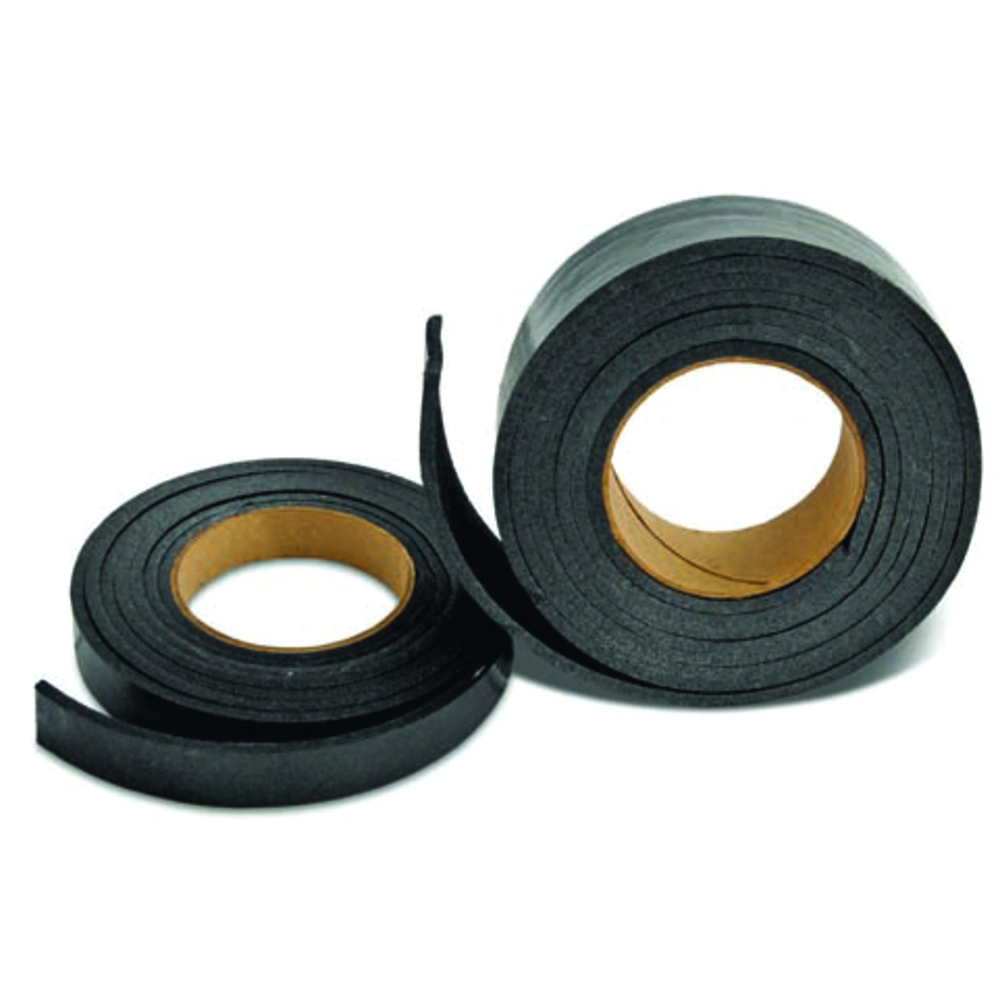

Product Picture
Application Picture
Product Picture
Application Picture
1   1
Variant Art.-No. 531397 fischer Firestop FiWS-2 Intumescent Wrap Strip
Dimensions 50mmx6mmx3.66m/2'x1/4˝x12˝
GTIN (EAN-Code) 4048962209020
Price / Pack 9912.00 ₹

Product Description

fischer intumescent Wrap Strip - FiWS is a flexible, intumescent graphite based synthetic compound strip which has been designed to be installed around non metallic pipes, conduits, trunking and cabling in both vertical and horizontal applications. Tested in accordance with ASTM E 84 (UL723) & ASTM E 814 (UL1479) the fischer FiWS can provide up to 4 hours fire resistance on a wide range of applications. The FiWS is asbestos and halogen free, and is unaffected by oil, fungus or vermin.
Advantages
  • Efficient and effective for sealing of pipe openings in floors and walls
  • Easy to fit
  • Moisture resistant
  • Freeze-thaw characteristics
  • No mechanical fixing required
  • Economical solution
  • Up to 4 hours fire resistance
  • Asbestos and halogen free

Application and Permission

Applications
  • Non-metallic service: PVC 14" (355 mm), cPVC 8" (203 mm), ABS 6" (152 mm), FRPP 4" (102 mm)
  • Insulated service: Steel 10" (254 mm), Iron 10" (254 mm), Copper 4" (102 mm), Glass fibre 3" (75 mm), AB/PVC flexible foam 1" (25 mm)
  • Cable bunches: 3" (76 mm)

Assembly Instruction

Functionality
  • FiWS is a flexible, intumescent graphite-based synthetic compound strip, which has been designed to be installed in both vertical and horizontal applications.
  • FiWS has been developed as a PRE or cast-in FireStop solution, and has been designed to work with the fischer Universal Collar for retro fitting or surface mounted applications.
  • For large openings, the FiWS can be used in conjunction with the FFSC.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Dimensions 50mmx6mmx3.66m/2'x1/4˝x12˝
GTIN (EAN-Code) 4048962209020
Legend = Permission Available — = Permission not Available
