fischer Firestop FPC/5LT

FireStop coated panel system for multiple service penetrations

Price : 5192.00 ₹
Available Product Variants
Top Features
  • Approved for light partition walls.
  • Can be installed dry.
  • Up to 4 hours integrity and 2 hours insulation.
  • Excellent acoustic properties.

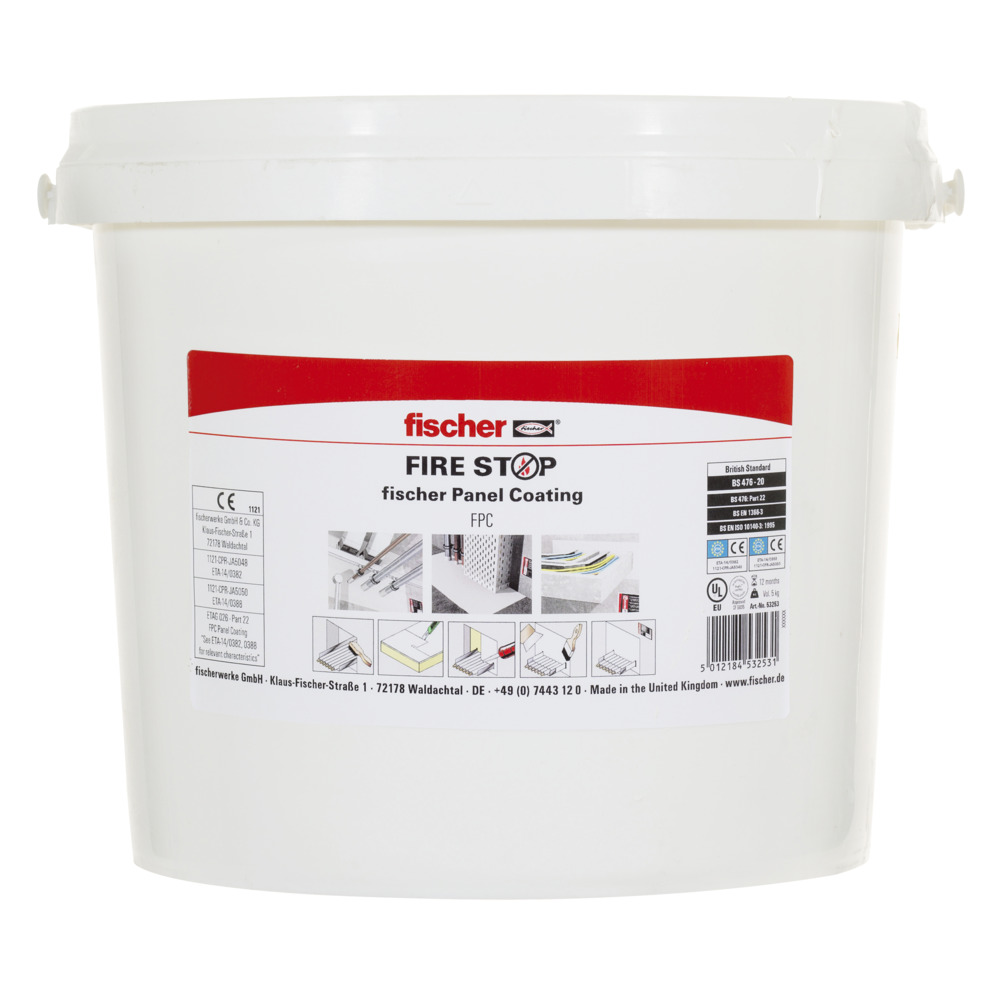

Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 53253 fischer Firestop FPC/5LT
ETA-approval
Contents 5 [l]
Quantity/pack 1 [St.]
GTIN (EAN-Code) 5012184532531
Price / Pack 5192.00 ₹

Product Description

fischer Coated Panel System FCPS is a rock fibre core coated with ablative sealant FPC - fischer Panel Coating. FCPS is designed to provide effective and efficient firestopping seals in both vertical and horizontal applications. FCPS also helps to maintain the sound reduction index of a structure. The FCPS has been tested to BS 476 part 20 & 22, EN 1366-3 and is ETA approved and CE Marked. Design to provide up to 4 hours integrity and 2 hours insulation on a wide range of applications the FCPS will allow additional services to be added or removed and will accommodate thermal and mechanical movement of services.
Advantages
  • Approved for light partition walls
  • Can be installed dry
  • No coatback required for services
  • Excellent acoustic properties
  • Asbestos and halogen free

Application and Permission

Applications
  • Small and large openings
  • Cables/cable trays
  • Air ducts with dampers
  • Metallic or non-metallic pipes

Assembly Instruction

Functionality
  • FCPS is a rock fibre core coated with ablative sealant FPC for use in both vertical and horizontal applications.
  • It maintains the sound reduction index of a structure.
  • The FCPS will allow additional services to be added or removed and will accommodate thermal and mechanical movement of services.
  • FPC can be used to adhere sections of FCPS board when jigsaw assembly is required and can also be used to enhances smoke and acoustic performance.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Contents 5 [l]
Quantity/pack 1 [St.]
GTIN (EAN-Code) 5012184532531
Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 424 KB) 07-10-2014
ETA - European Technical Assessment (PDF, 969 KB) 28-10-2019
DOP - Declaration of Performance (PDF, 1 MB) DOP - Declaration of Performance DoP: FS-15-2020-A 04-11-2019
DOP - Declaration of Performance (PDF, 2 MB) DOP - Declaration of Performance DoP: FS-15-2020-B 14-10-2014
Cartificate(PDF, 969 KB) 15-01-2020 16-09-2025
Cartificate(PDF, 336 KB) 27-10-2017 01-05-2022
Cartificate(PDF, 635 KB) 17-09-2015 17-08-2025
Cartificate(PDF, 542 KB) 10-11-2016 09-11-2026
