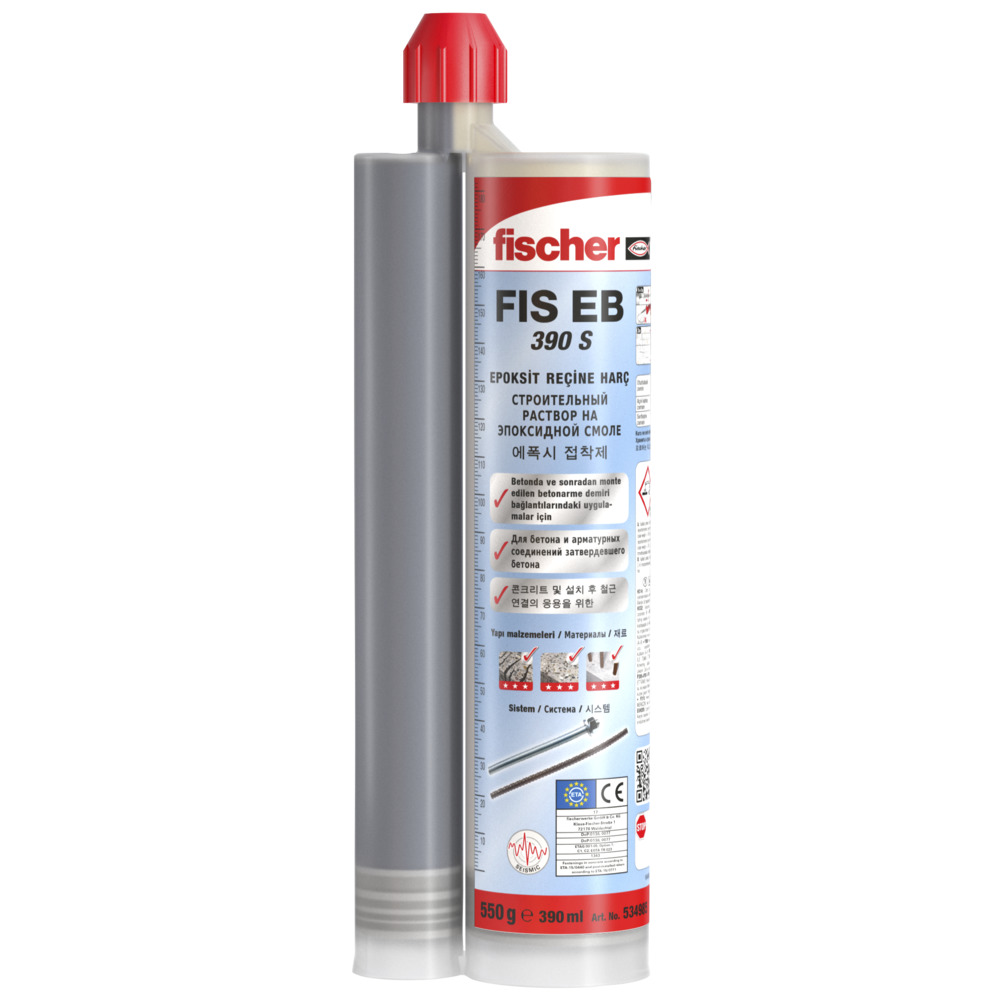

fischer Epoxy mortar FIS EB 390 S

The basic epoxy mortar for applications in concrete

Price : 2407.20 ₹
Available Product Variants
Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 534984 fischer Epoxy mortar FIS EB 390 S
Contents 1cartridge390 ml,2xFISMRPlus
GTIN (EAN-Code) 4048962236941
Price / Pack 2407.20 ₹

Product Description

The fischer injection mortar FIS EB is an economical epoxy resin mortar for standard applications in cracked and and non-cracked concrete and for rebar connections. It is suitable for fixing heavy loads both inside and outside. The FIS EB is processed with the approved system components fischer threaded rod FIS A or with reinforcement bars. The FIS EB can be used in dry or wet concrete, but also in water-filled drill holes. This makes the epoxy resin mortar a secure and reliable system even in unfavourable conditions.
Advantages
  • FIS EB is approved for rebar connections according to ETA and for use in cracked concrete according to ETA and ICC. The injection mortar achieves a reliable performance in many applications which enables economical use.
  • FIS EB can be used under various installation conditions and is approved for seismic applications, making it a safe system.
  • Variable anchorage depths allow ideal adaptation to the load to be transmitted.

Application and Permission

Applications
  • Heavy steel constructions
  • Consoles
  • Silo installations
  • Tall shelving
  • Post-installed rebar connections
Building materials

Building materials

Approved for anchorings in:

  • Concrete C20/25 to C50/60, cracked and non-cracked * You can find detailed information on building materials in the registration document.

Permission

  • ETA-15/0440, ETAG 001-5
  • ETA-15/0440, ETAG 001-5
  • ETA-15/0771, ETAG 001-5
  • DoP No. 0068
  • DoP No. 0077
  • DoP No. 0138
  • DoP No. 0160
  • ESR-4495
  • GS 3.2/18-020-3

Assembly Instruction

Functionality
  • The epoxy mortar FIS EB combined with the threaded rod FIS A is suitable for pre-positioned and push-through installation.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
  • The mortar is injected bubble-free from the drill hole base.
  • The mortar bonds the entire surface of the threaded rod with the drill hole wall and seals off the drill hole.
  • The threaded rod is set manually by slightly rotating it until it reached the drill hole base.
  • During push-through installation, the annular gap between the threaded rod and the attachment is filled with FIS EB.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Contents 1cartridge390 ml,2xFISMRPlus
GTIN (EAN-Code) 4048962236941
Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 4 MB) European Technical Assessment for fischer injection system FIS EB for use in concrete ETA-15/0440, ETAG 001-5 06-07-2015
ETA - European Technical Assessment (PDF, 3 MB) European Technical Assessment for rebar connection with fischer injection system FIS EB ETA-15/0440, ETAG 001-5 13-12-2017
ETA - European Technical Assessment (PDF, 3 MB) European Technical Assessment for rebar connection with fischer injection system FIS EB ETA-15/0771, ETAG 001-5 14-12-2015
DOP - Declaration of Performance (PDF, 2 MB) DoP No. 0077 21-12-2015
DOP - Declaration of Performance (PDF, 6 MB) DoP No. 0138 21-12-2017
DOP - Declaration of Performance (PDF, 4 MB) DoP No. 0160 12-10-2017
ICC-approval (PDF, 838 KB) ESR-4495 01-01-2020 31-01-2021
Test report (fire protection) (PDF, 9 MB) GS 3.2/18-020-3 29-06-2018
DOP - Declaration of Performance (PDF, 5 MB) DoP No. 0068 17-08-2015
