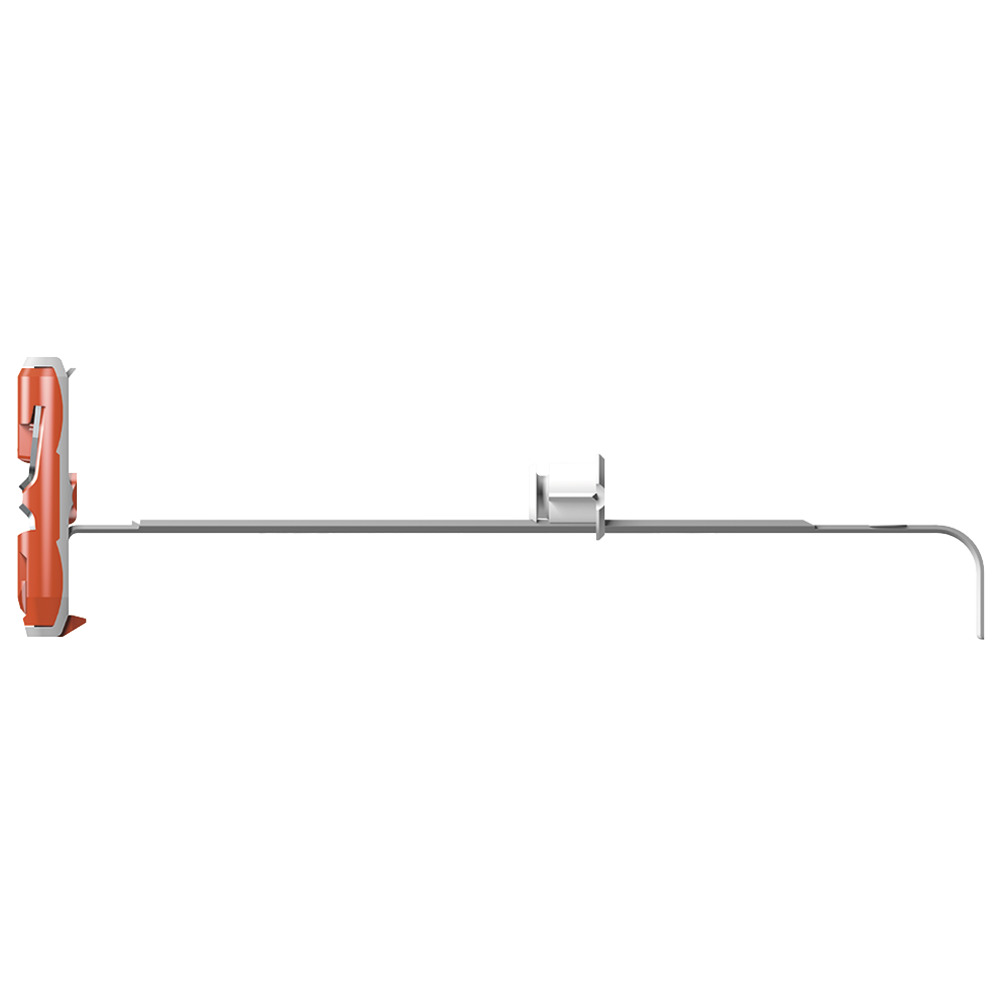

fischer Nylon Toggle DUOTEC 10

Easy to install nylon toggle for high loads in all panel building materials

Price : 4248.00 ₹

Available Product Variants

Top Features

Combination of two material components for more performance.
Use of chipboard screws, hooks with fastening and screws with metric threads.
Flush sleeve strengthens the drill hole and allows considerably higher transverse loads.
Curved handle allows obstacles to be identified before installation.

1 1

Variant	Art.-No. 537258	fischer Nylon Toggle DUOTEC 10
Drill diameter		10	[mm]
Max. panel thickness		55	[mm]
Min. cavity depth		40	[mm]
Screw diameter		4.5-5.0	[mm]
Min. drill hole depth		ls-tfix+10	[mm]
Min. screw length		tfix+55	[mm]
Anchor length		50	[mm]
Max. fixture thickness		ls-55	[mm]

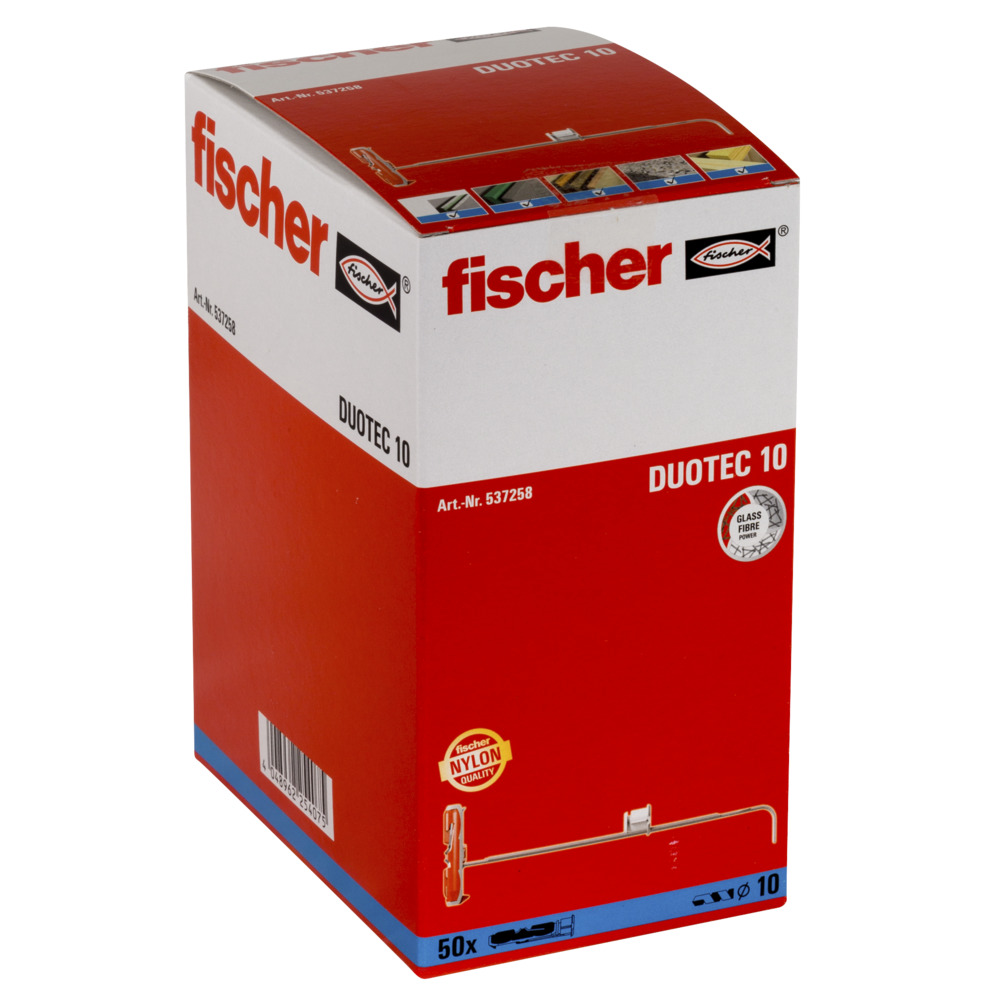

Packaging		Foldingbox
Quantity/pack		50	[St.]
GTIN (EAN-Code)		4048962254075
Price / Pack		4248.00 ₹

Product Description

The nylon toggle fischer DUOTEC for high tensile and transverse loads through 2 components. Easy installation with small drill hole diameters of 10 mm and short toggle element, even in narrow and insulated cavities. Easy pre-installation; the plug does not fall into the drill hole, even without a screw. No cutting, and thus no weakening of the gypsum plasterboard. The toggle element automatically folds behind the panel and gives it its strength. As a result of the flexible stainless steel screw seat, the gravity toggle can be used with wood and chipboard screws or metric hooks and threaded rods with lock nuts. If it hits something in the drill hole in solid building materials, it functions like an Expansion plug.

Advantages

Flexible screw mount allows for the use of screws and hooks with different thread shapes.
Glass fibre-reinforced plastics and a metal skeleton insert (fischer DUOTEC 12) allow the toggle to handle heavy tensile and transverse loads in all panel building materials.
Soft grey nylon contact surface distributes the load over the panel surface, thereby minimising weakening of the supporting building material.
Standard drill hole diameters and short tilting element for easy installation in narrow cavities, including cavities with insulation.
White flush sleeve with snap function allows the plug to be pre-installed quickly and securely in the drill hole.

Application and Permission

Applications

Kitchen hanging cabinets
Living room cabinets
Shelves
Wardrobes
Handrails
Pictures
Mirrors
Lamps
Heavy hanging baskets

Building materials

Suitable for:

Gypsum plasterboard
Gypsum fibreboard
Wooden panels, such as OSB boards, chipboard, MDF sheets
Steel plates
Plastic boards
Hollow blocks made from concrete

Also functioning in:

Solid materials, such as concrete and wood

You can find detailed information on building materials in the registration document.

For Details see corresponding Documents

Assembly Instruction

Functionality

The fischer DUOTEC is designed for pre-positioned installation.
Simple installation with a standard diameter 10 or 12 mm drill bit.
The short toggle element makes it suitable for narrow and even with mineral wool insulated cavities. Note the length of the toggle element!
Functions like an expansion plug in solid building materials such as concrete or wood. Note, not with metric screws!
Flexible screw insert allows for the use of wood, chipboard and metric screws and hooks.

Technical Data

Drill diameter	10	[mm]
Max. panel thickness	55	[mm]
Min. cavity depth	40	[mm]
Screw diameter	4.5-5.0	[mm]
Min. drill hole depth	ls-tfix+10	[mm]
Min. screw length	tfix+55	[mm]
Anchor length	50	[mm]
Max. fixture thickness	ls-55	[mm]
Packaging	Foldingbox
Quantity/pack	50	[St.]
GTIN (EAN-Code)	4048962254075

Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Load Table (PDF, 160 KB)
