fischer Nylon Toggle DUOTEC 10 S

Easy to install nylon toggle for high loads in all panel building materials

Price : 2383.60 ₹
Available Product Variants
Top Features
  • Combination of two material components for more performance.
  • Flush sleeve strengthens the drill hole and allows considerably higher transverse loads.
  • Curved handle allows obstacles to be identified before installation.

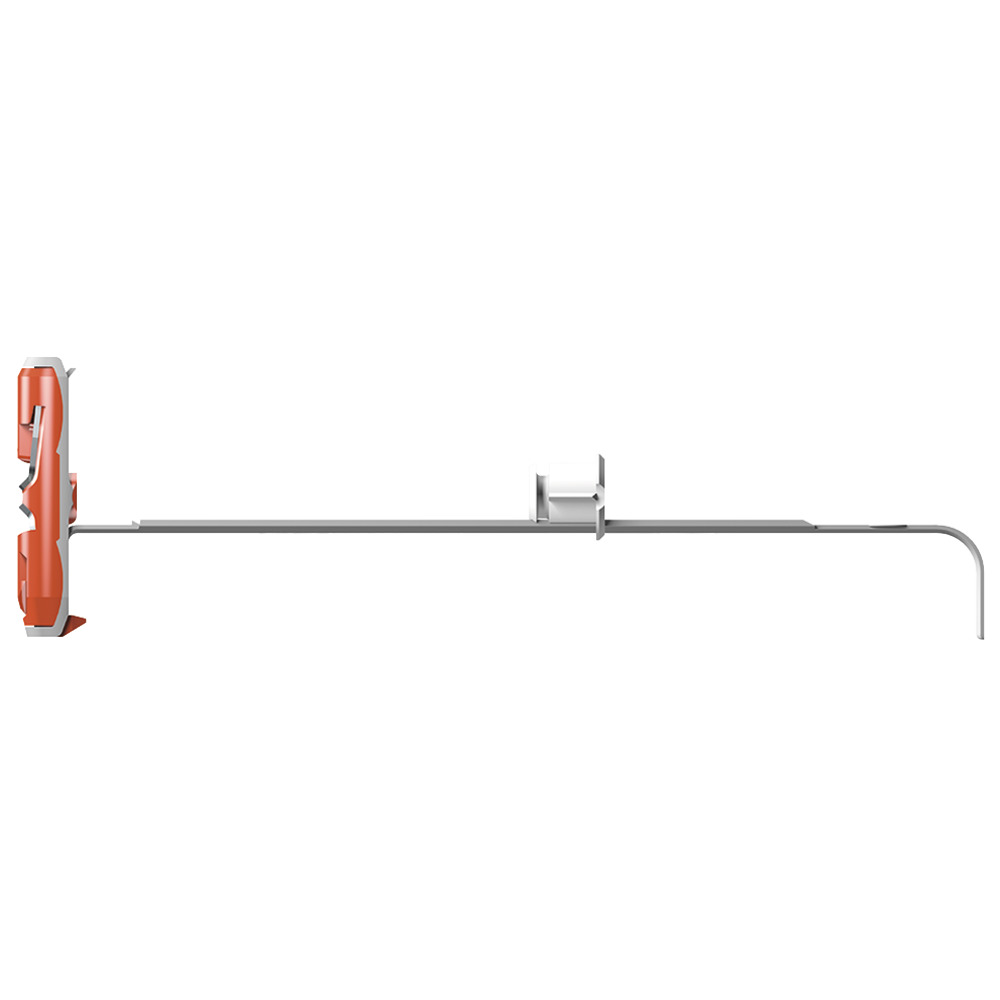

Product Picture
Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 537259 fischer Nylon Toggle DUOTEC 10 S
Drill diameter 10 [mm]
Max. panel thickness 55 [mm]
Min. cavity depth 40 [mm]
Screw diameter 5 [mm]
Screw length 60 [mm]
Min. drill hole depth 65 [mm]
Anchor length 50 [mm]
Max. fixture thickness 27 [mm]

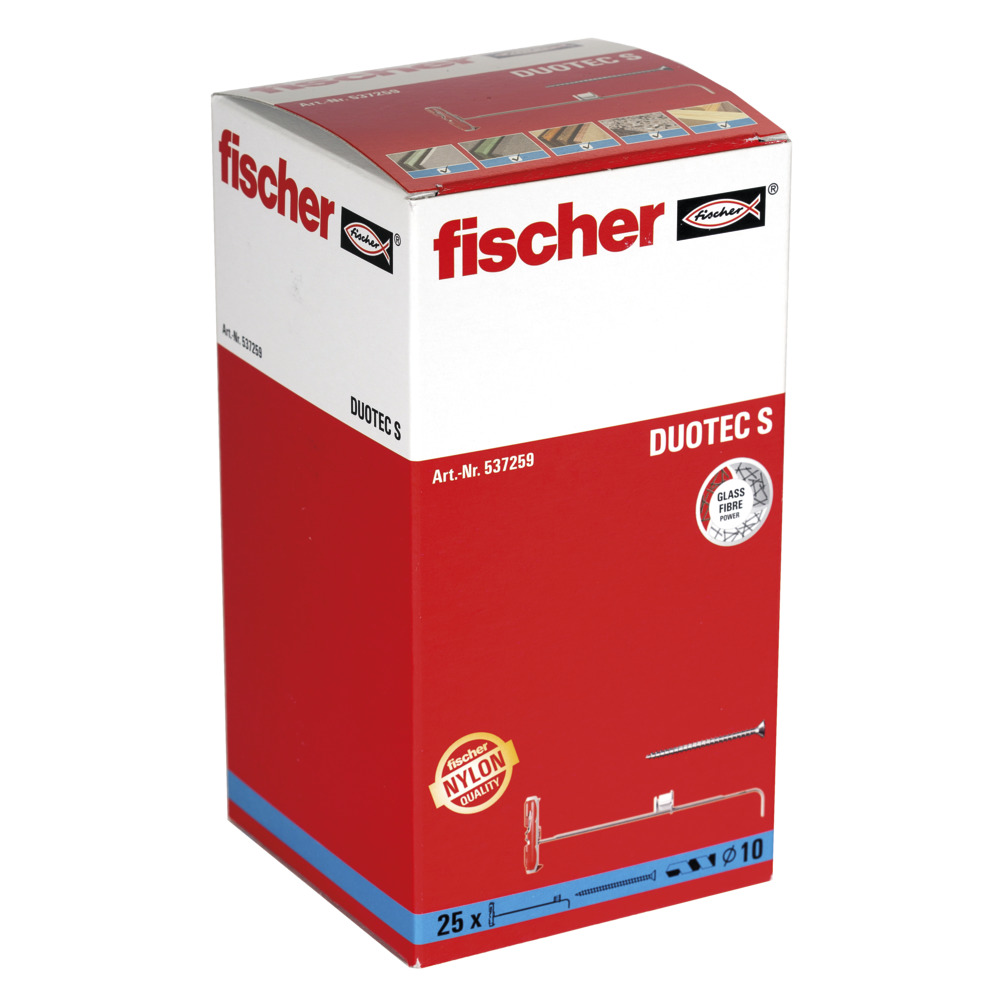

Packaging Foldingbox
GTIN (EAN-Code) 4048962254082
Price / Pack 2383.60 ₹

Product Description

The nylon toggle fischer DUOTEC for high tensile and transverse loads through 2 components. Easy installation with small drill hole diameters of 10 mm and short toggle element, even in narrow and insulated cavities. Easy pre-installation; the plug does not fall into the drill hole, even without a screw. No cutting, and thus no weakening of the gypsum plasterboard. The toggle element automatically folds behind the panel and gives it its strength. As a result of the flexible stainless steel screw seat, the gravity toggle can be used with wood and chipboard screws or metric hooks and threaded rods with lock nuts. If it hits something in the drill hole in solid building materials, it functions like an Expansion plug.
Advantages
  • Flexible screw mount allows for the use of screws and hooks with different thread shapes.
  • Glass fibre-reinforced plastics and a metal skeleton insert (fischer DUOTEC 12) allow the toggle to handle heavy tensile and transverse loads in all panel building materials.
  • Soft grey nylon contact surface distributes the load over the panel surface, thereby minimising weakening of the supporting building material.
  • Standard drill hole diameters and short tilting element for easy installation in narrow cavities, including cavities with insulation.
  • White flush sleeve with snap function allows the plug to be pre-installed quickly and securely in the drill hole.

Application and Permission

Applications
  • Kitchen hanging cabinets
  • Living room cabinets
  • Shelves
  • Wardrobes
  • Handrails
  • Pictures
  • Mirrors
  • Lamps
  • Heavy hanging baskets
Building materials

Suitable for:

  • Gypsum plasterboard
  • Gypsum fibreboard
  • Wooden panels, such as OSB boards, chipboard, MDF sheets
  • Steel plates
  • Plastic boards
  • Hollow blocks made from concrete

Also functioning in:

  • Solid materials, such as concrete and wood

You can find detailed information on building materials in the registration document.

For Details see corresponding Documents

Assembly Instruction

Functionality
  • The fischer DUOTEC is designed for pre-positioned installation.
  • Simple installation with a standard diameter 10 or 12 mm drill bit.
  • The short toggle element makes it suitable for narrow and even with mineral wool insulated cavities. Note the length of the toggle element!
  • Functions like an expansion plug in solid building materials such as concrete or wood. Note, not with metric screws!
  • Flexible screw insert allows for the use of wood, chipboard and metric screws and hooks.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Drill diameter 10 [mm]
Max. panel thickness 55 [mm]
Min. cavity depth 40 [mm]
Screw diameter 5 [mm]
Screw length 60 [mm]
Min. drill hole depth 65 [mm]
Anchor length 50 [mm]
Max. fixture thickness 27 [mm]
Packaging Foldingbox
GTIN (EAN-Code) 4048962254082
Legend = Permission Available — = Permission not Available
