fischer Intumescent Pipe Wraps FiPW E / 2mm (25 meter roll)

An intumescent single or endless wrap for sealing flammable pipes

Price : 26904.94 ₹
Available Product Variants
Top Features
  • 25 m roll in a ruler box - easy to cut to size for various pipe diameters.
  • Efficient and effective for sealing of pipe openings in floors and walls.
  • No mechanical fixing required.
  • Economical solution.

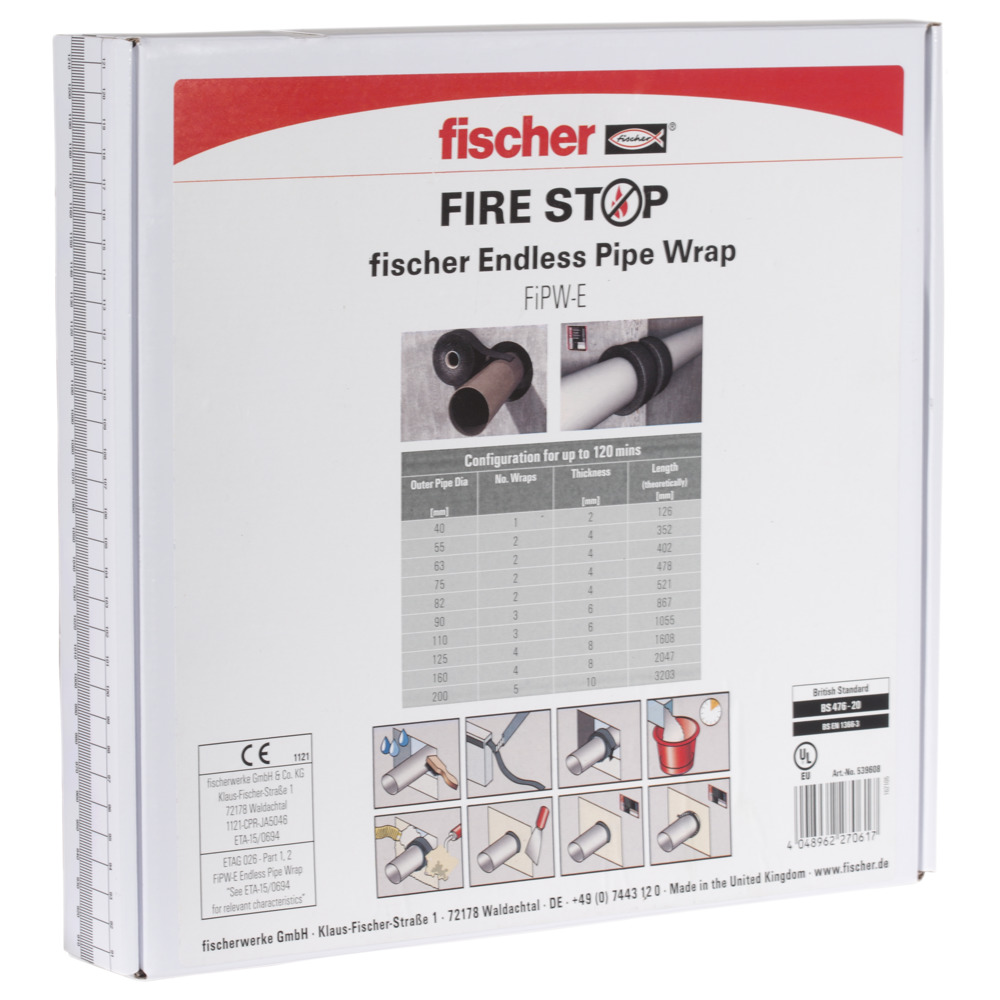

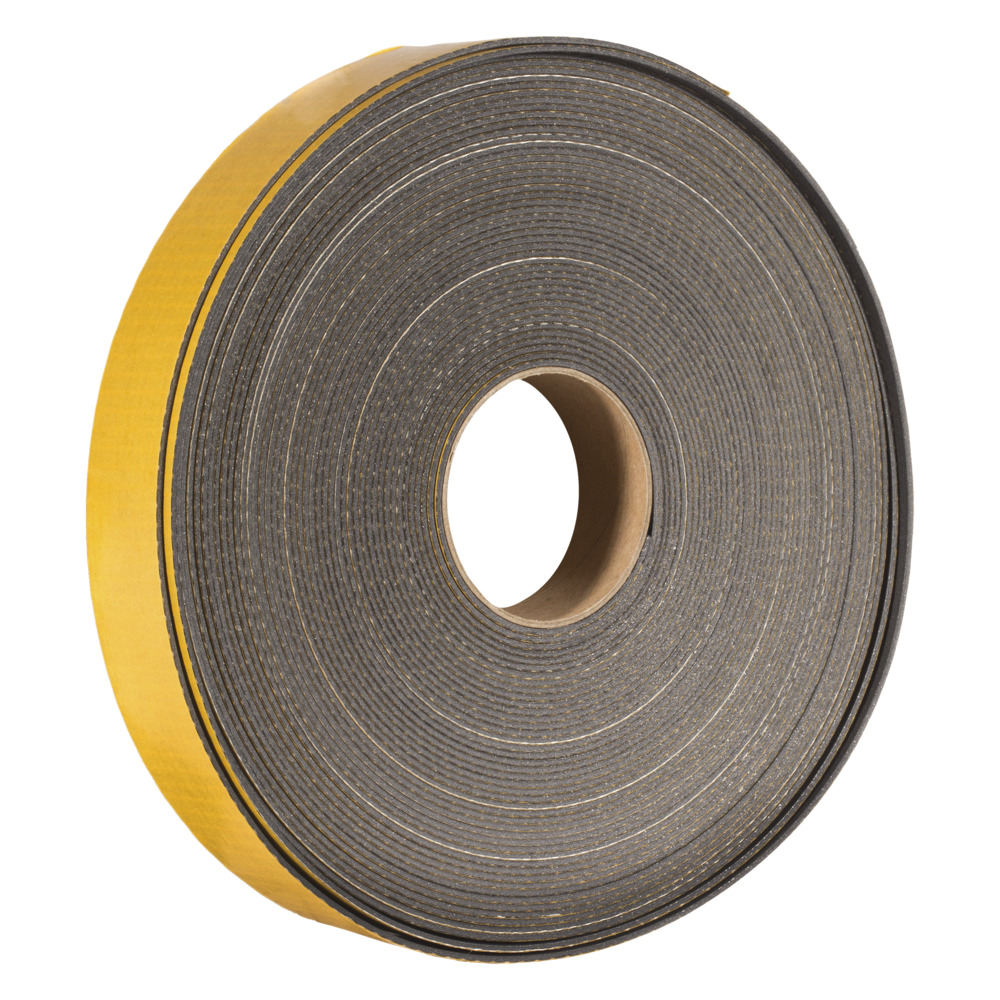

Product Picture
Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 539608 fischer Intumescent Pipe Wraps FiPW E / 2mm (25 meter roll)
ETA-approval
Fits pipe-Ø 30-200
Fire rating 2
GTIN (EAN-Code) 4048962270617
Price / Pack 26904.94 ₹

Product Description

fischer intumescent Pipe Wrap - FiPW is a flexible composite strip, composed of thermoplastic component containing intumescent graphite in a synthetic compound. Manufactured to be wrapped around non metallic pipes and trunking, FiPW is designed to expand and provide up to 4 hours fire resistance in a pipe cavity created under fire.
Advantages
  • Efficient and effective for sealing of pipe openings in floors and walls
  • Easy to fit
  • Moisture resistant
  • No mechanical fixing required
  • Economical solution
  • Up to 4 hours fire resistance
  • Asbestos and halogen free
  • Available on a roll for more flexibility in pipe diameters

Application and Permission

Applications
  • Non-metallic pipes
  • Polyvinyl Chloride PVC
  • Chlorinated Polyvinyl Chloride cPVC
  • Medium-density Polyethylene MDPE
  • High-density Polyethylene HDPE
  • Acrylonitrile Butadiene ABS

Permission

  • DoP: FS-09-2020

Assembly Instruction

Functionality
  • FiPW is a flexible composite strip, which is composed of thermoplastic component containing intumescent graphite in a synthetic compound and enclosed in an outer polyethylene cover.
  • Can also be used as a cast-in solution. For large openings, use in conjunction with FCPS or FFSC.
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Fits pipe-Ø 30-200
Fire rating 2
GTIN (EAN-Code) 4048962270617
Legend = Permission Available — = Permission not Available

Documents for Downloading

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 917 KB) 12-11-2015
DOP - Declaration of Performance (PDF, 1 MB) DOP - Declaration of Performance DoP: FS-09-2020 19-11-2015
