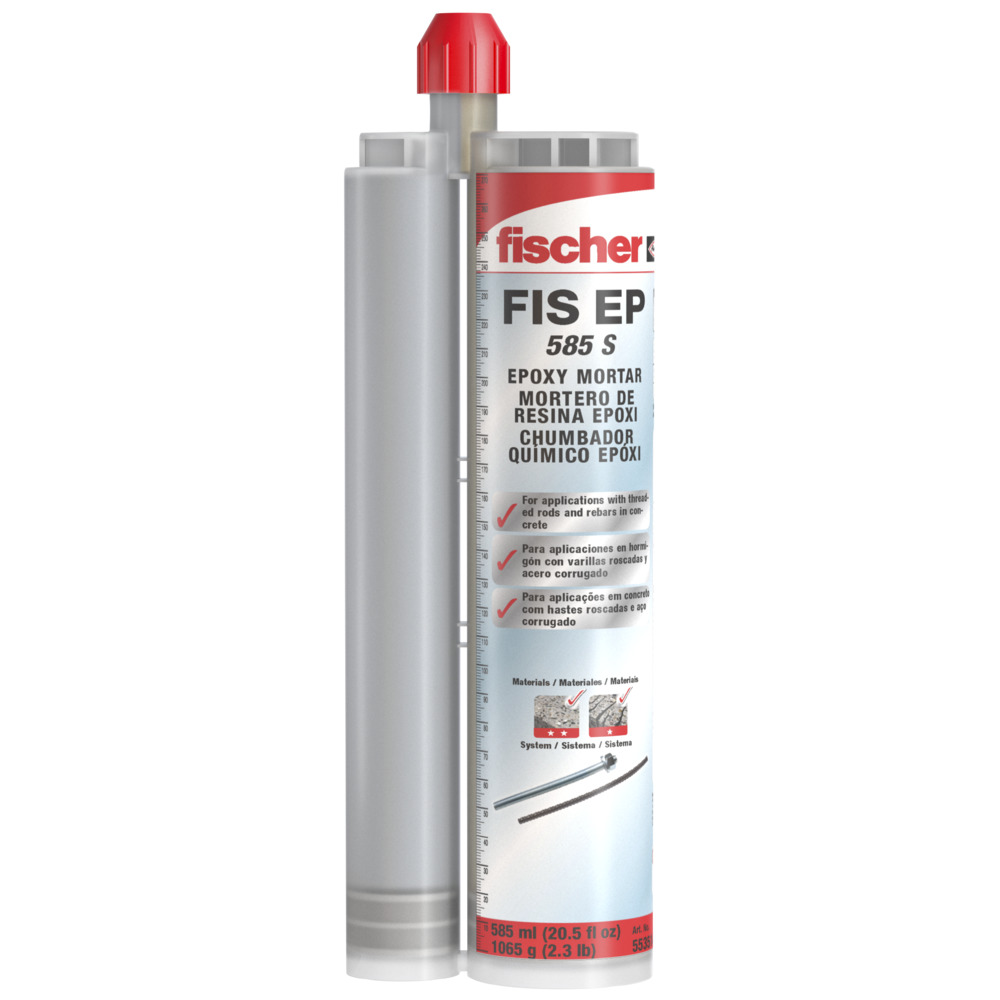

fischer Injection Mortar FIS EP 585 S

The cost-efficient epoxy mortar for applications in concrete

Price : 1850.24 ₹

Available Product Variants

Top Features

FIS EP for on-site installations even in cracked concrete.
Variable loads by selecting the anchoring depth of the anchor rod FIS A.
The epoxy resin mortar FIS EP can be used with all standard fischer accessories.

1 1

Variant	Art.-No. 553514	fischer Injection Mortar FIS EP 585 S
Quantity/pack		1	[St.]
GTIN (EAN-Code)		4048962367843
Price / Pack		1850.24 ₹

Product Description

In addition to the FIS EM Plus and the FIS EB, the FIS EP belongs to the family of fischer epoxy resin mortars. The FIS EP is the economical solution for all applications in cracked and non-cracked concrete that do not require approval. In combination with the anchor rod FIS A, the loads to be introduced can be selected variably by choosing the anchorage depth.

Advantages

FIS EP is the economical epoxy resin mortar for applications in concrete that do not require approval.
The epoxy mortar FIS EP can also be used in cracked concrete for construction site convenient installation.
With the anchor rod FIS A, the loads to be introduced can be selected variably by choosing the anchorage depth.
FIS EP can be used for smooth installation with the standard fischer accessories.

Application and Permission

Applications

Columns
Beams
Shear dowels
Starter bars
Polders

Building materials

Suitable for:

Concrete C20/25 to C50/60, non-cracked and cracked * You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality

The epoxy mortar FIS EP combined with the FIS A threaded rod is suitable for pre-positioned and push-through installation.
Resin and hardener are stored in two separate chambers, thus are not mixed and activated until extrusion through the static mixer.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
The anchor is set manually by slightly rotating it until the anchor reaches the drill hole base.
During push-through installation, the annular gap is filled with FIS EP.
