fischer Drop-in Anchor EA II M10x25

The cost-effective hammerset anchor with a rim for quick and easy installation

Price : 1038.40 ₹
Available Product Variants
Top Features
  • Simple Hammerset installation: no slippage during assembly due to the pronounced edge on the anchor sleeve.
  • Use of standard metric screws and threaded rods lowers complexity.
  • Power-saving series installation with machine setting tool EA II S-SDS.
  • Visual control due to embossing.
  • ETA approval for multiple fixings.

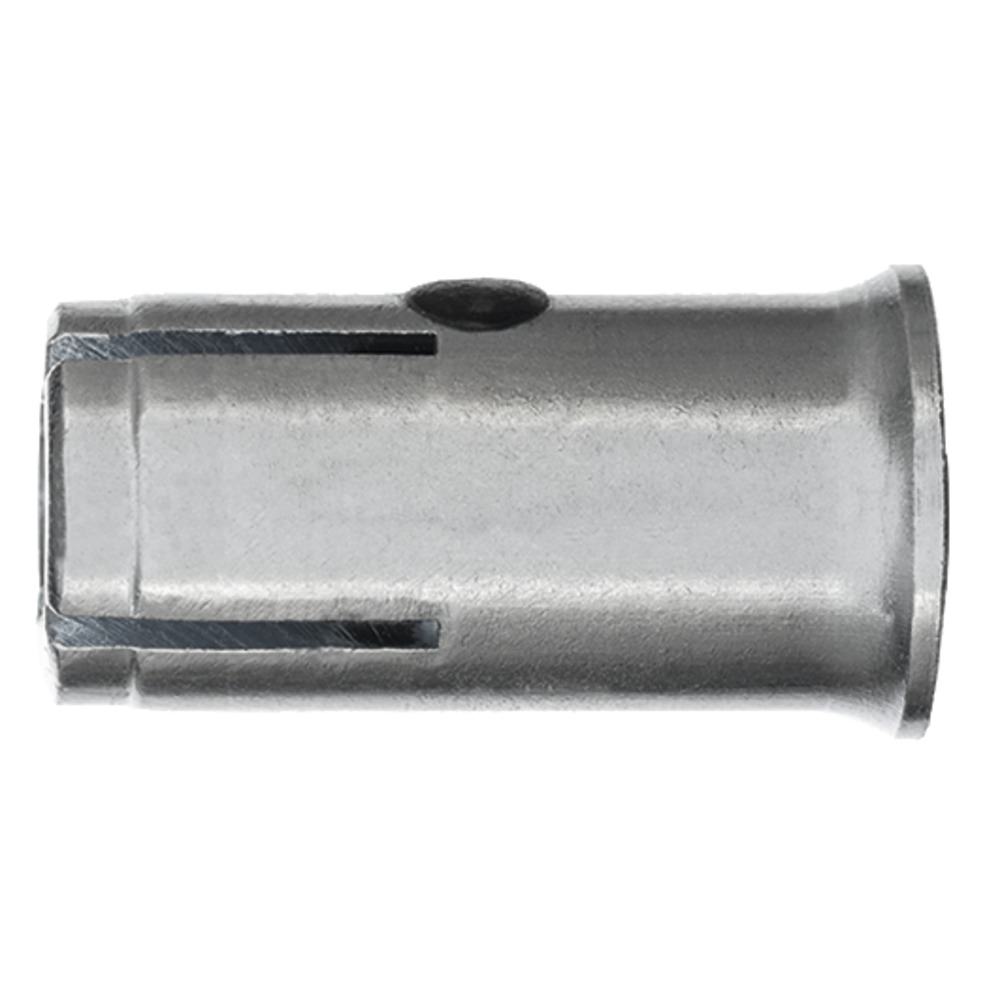

Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 560965 fischer Drop-in Anchor EA II M10x25
Price / Pack 1038.40 ₹

Product Description

The fischer Hammerset anchor EA II is an internal threaded anchor made of zinc-plated steel. The Hammerset anchor is set flush to the surface of the anchoring base using the hammer. With the setting tool EHS Plus or the machine setting tool EMS the sleeve is expanded by driving in the internal rod and expands against the drill hole wall. For correct expansion to take place, no torque must be applied to the screw or the threaded rod. The fischer Hammerset anchor EA II is ideal for fixing sprinkler systems, gratings, and consoles in internal areas with approval.
Advantages
  • The embossed rim prevents the anchor sleeve from slipping, thus ensuring a trouble-free hammerset installation.
  • The metric internal thread means that it is possible to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
  • The EMS machine setting tool allows for effortless installation, particularly in the case of series installations.
  • The embossing that is applied when expanding with the EHS Plus setting tool offers a simple control of the anchoring and provides increased safety.
  • Fixing point at hef 25 mm prevents anchor of falling out of the drill hole before being expanded.
  • The black fixing point prevents the anchor from falling out of the drill hole during overhead installation.

Application and Permission

Applications
  • Pipelines and ventilation ducts
  • Sprinkler systems
  • Cable conduits and wires
  • Gratings
  • Steel constructions
  • Machines
  • Consoles
  • Shuttering props
Building materials

Approved for:

  • Concrete C20/25 to C50/60, cracked, for the multiple fixings of non-load-bearing systems
  • Concrete C20/25 to C50/60, non-cracked Also suitable for:
  • Concrete C12/15
  • Natural stone with dense structure

* You can find detailed information on building materials in the registration document.

Permission

  • ETA-07/0135
  • ETA-07/0142
  • DoP No. 0003
  • DoP No. 0005
  • DoP No. 0044
  • DoP No. 0069

Assembly Instruction

Functionality
  • The EA II is suitable for pre-positioned installation.
  • Position the hammerset anchor in the drill hole and drive in flush to the surface of the anchor base using the hammer.
  • The sleeve is then expanded by driving in the internal bolt with the EHS Plus setting tool (alternative: EMS machine setting tool), and expanded against the drill hole wall.
  • The setting tools must sit on the rim of the anchor to ensure correct expansion.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 2 MB) European Technical Assessment for fischer Hammerset anchor EA II ETA-07/0135 09-12-2016
ETA - European Technical Assessment (PDF, 2 MB) European Technical Assessment for fischer Hammerset anchor EA II ETA-07/0142 09-12-2016
DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance Hammerset anchor EA II, according European Technical Assessment ETA-07/0142 DoP No. 0003 14-11-2014
DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance Hammerset anchor EA II, according European Technical Assessment ETA-07/0135 DoP No. 0005 03-02-2015
DOP - Declaration of Performance (PDF, 1 MB) DoP No. 0044 15-12-2016
DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance Hammerset anchor EA II, according European Technical Assessment ETA-07/0135 DoP No. 0069 15-12-2016
Factory Mutual (PDF, 128 KB)
