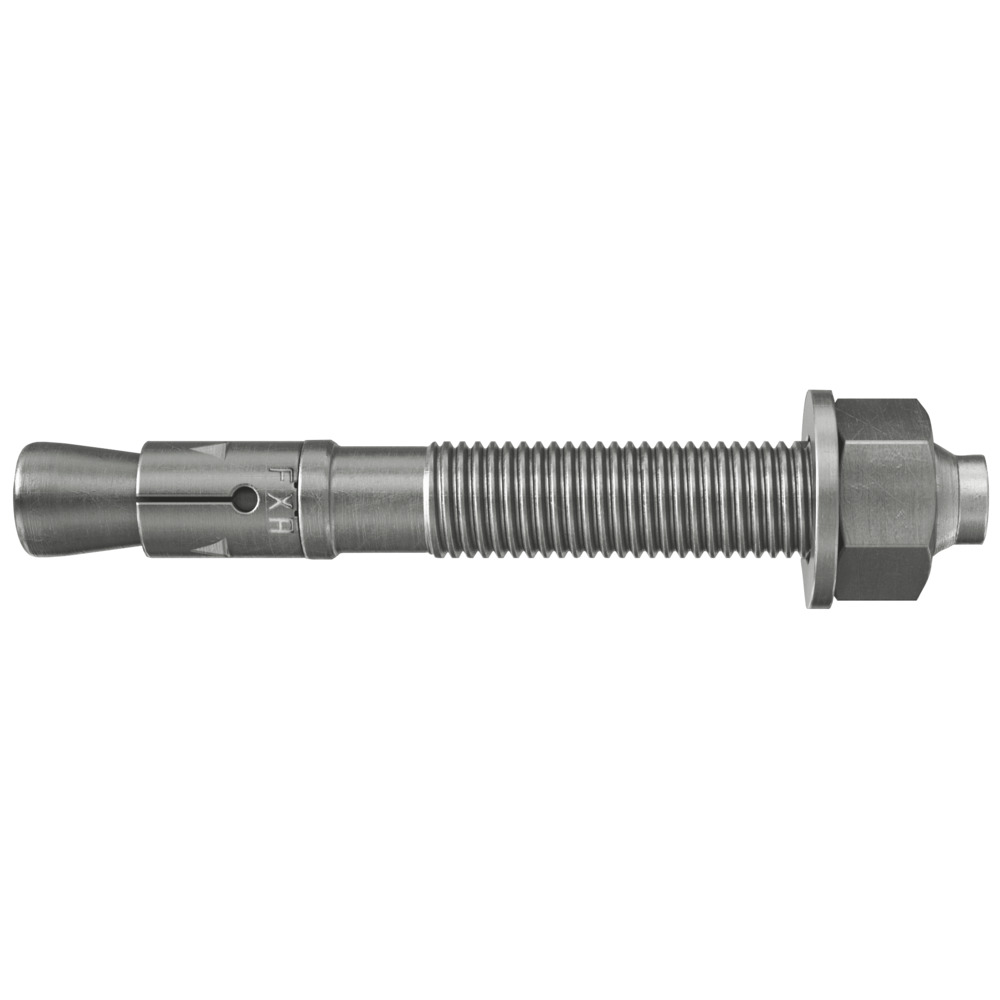

fischer Bolt Anchor FXA 8/10X71 R

Cost efficient fixing with ETA approval for non- cracked concrete

Price : 4908.80 ₹

Available Product Variants

1 1

Variant	Art.-No. 561424	fischer Bolt Anchor FXA 8/10X71 R
Price / Pack		4908.80 ₹

Product Description

Advantages

The standard anchorage depth achieves the maximum loadbearing capacities so fewer fixing points and smaller anchor plates are required.
With only a few hammer blows and minimal torque slippage installation is a simple process.
The drive-in pin protects the thread from damage, and ensures a faster installation and dismantling of the attachment.

Application and Permission

Applications

Building materials

Approved for:

* You can find detailed information on building materials in the registration document.

Permission

Assembly Instruction

Functionality

The FXA is suitable for pre-positioned and push through installation, also suitable for stand off installation under certain conditions.
Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
The head embossing offers a simple control of the anchoring.

Technical Data

Legend = Permission Available — = Permission not Available

Documents for Downloading

Approvals

Title	Type	Created
ETA - European Technical Assessment (PDF, 2 MB) European Technical Assessment for fischer Bolt anchor FXA - Torque controlied expansion anchor for use in non-cracked concrete	ETA-13/0772	27-09-2017
DOP - Declaration of Performance (PDF, 987 KB)	DoP 0193	28-07-2020
DOP - Declaration of Performance (PDF, 1 MB)	DoP No. 0034	06-10-2017
