fischer Concrete Screw FBS 6x60/5 SK countersunk head

The versatile screw solution for fast and simple installation

Price : 5475.20 ₹
Available Product Variants
Top Features
  • Two screw-in depths offer maximum flexibility.
  • Positive fit fixing.
  • Through-type installations save time.
  • Approval for multiple anchorings of non load-bearing systems.

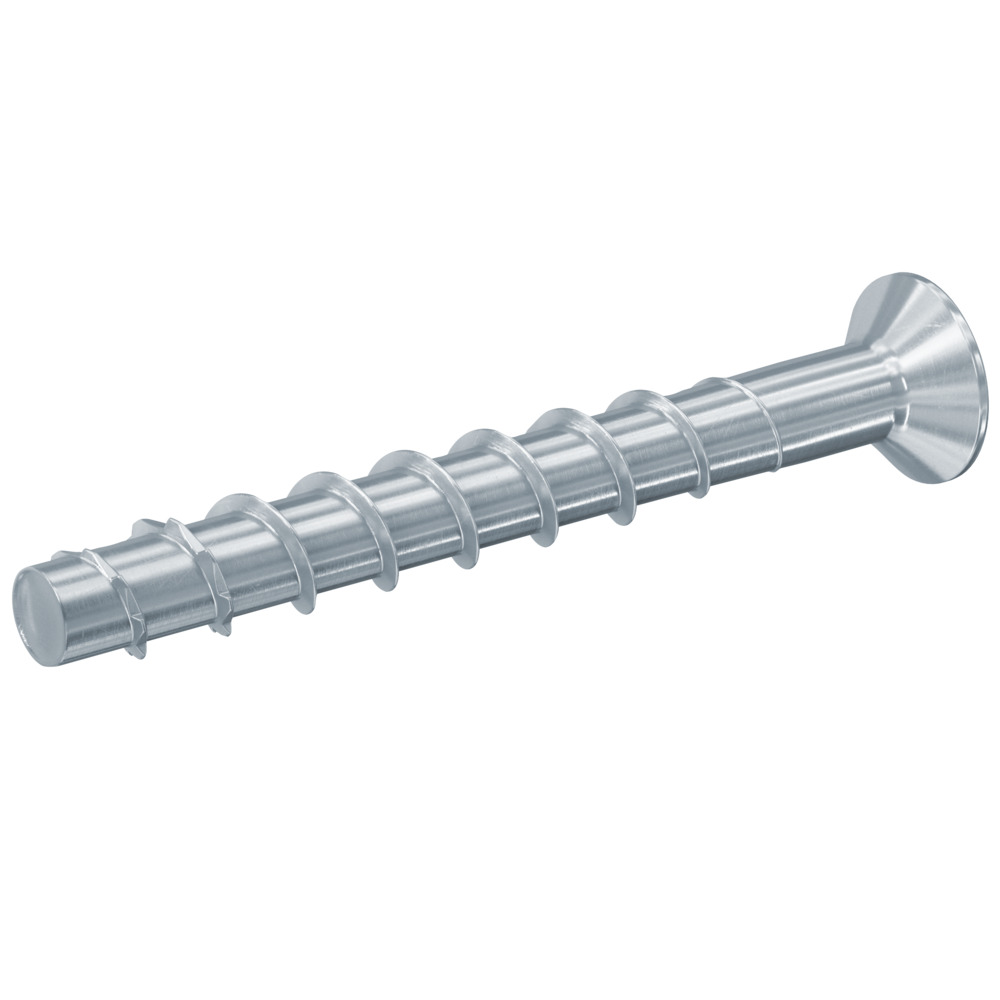

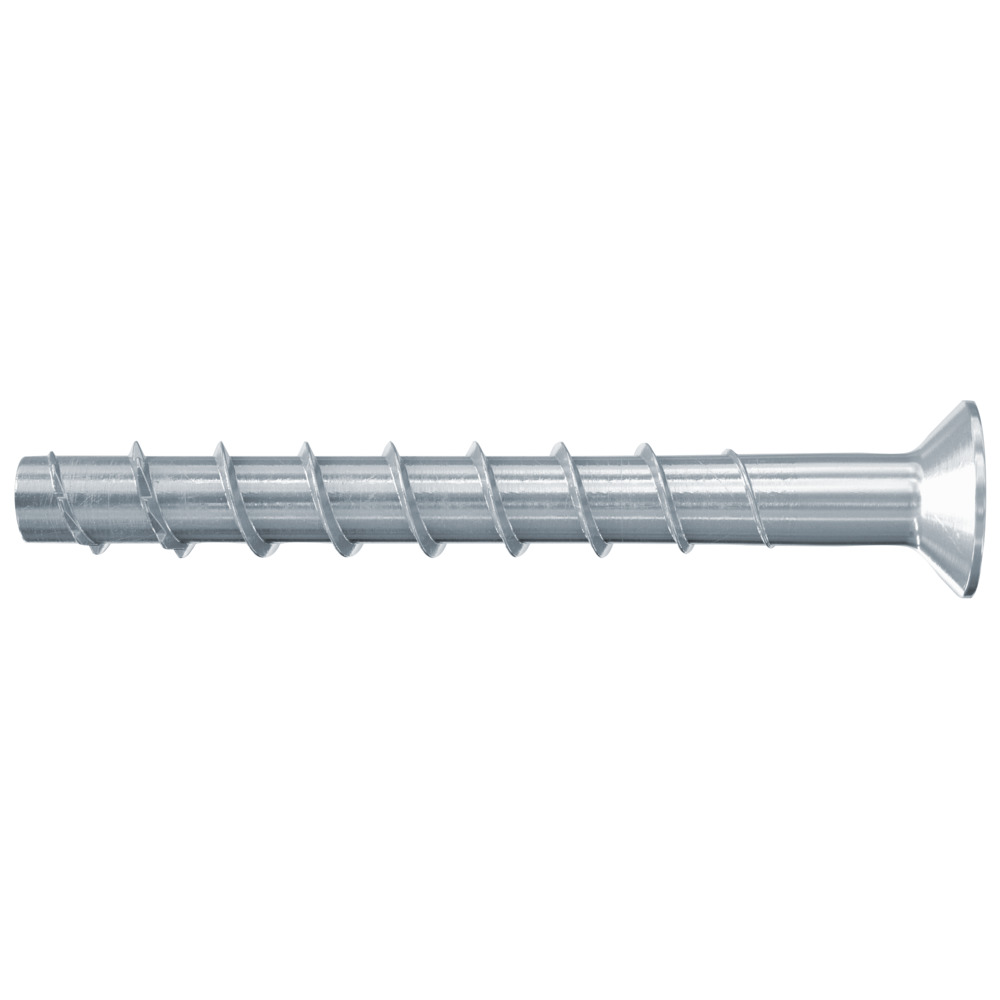

Product Picture
Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 66935 fischer Concrete Screw FBS 6x60/5 SK countersunk head
ETA-approval
Quantity/pack 100 [St.]
GTIN (EAN-Code) 4006209669358
Price / Pack 5475.20 ₹

Product Description

The fischer concrete screw FBS 6 SK is an anchoring solution with a countersunk head. The zinc-plated steel design enables use for visually demanding anchorings inside. When the concrete screw is screwed into the drill hole using an impact driver, the thread flanks cut into the concrete in a positive-locking manner, thus ensuring top load-bearing capacity. The low drilling effort saves time in the case of multiple fixations.
Advantages
  • Suitable for use in dry indoor surroundings
  • Fast, easy installation thanks to the special thread geometry
  • Countersunk head design for an attractive, flush-finished fixation

Application and Permission

Applications
  • Pipeline routes
  • Suspension for individual pipes
  • Suspended mounting rails
  • Prestressed concrete hollow core ceilings
  • Cable trays
  • Rails
  • Ventilation ducts
  • Perforated tapes
Building materials

Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked Also suitable for:
  • Concrete C12/15
  • Solid building materials
  • Masonry with a dense structure

* You can find detailed information on building materials in the registration document.

Permission

  • ETA-11/0093
  • DoP No. 0016
  • DoP No. 0017

Assembly Instruction

Functionality
  • Apply the fixture, and screw in the concrete screw using a tangential impact wrench until the head of the screw is flush with the fixture.
  • When the concrete screw is driven into the drill hole, its thread flanks cut into the concrete in a positive locking manner.
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Quantity/pack 100 [St.]
GTIN (EAN-Code) 4006209669358
Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 3 MB) European Technical Assessment for fischer concrete screw FBS 5 and FBS 6 ETA-11/0093 28-08-2015
DOP - Declaration of Performance (PDF, 3 MB) DoP No. 0016 04-09-2015
DOP - Declaration of Performance (PDF, 2 MB) DoP No. 0017 23-03-2016
