fischer Wash basin fixing WST 10 x 140

Complete fixing set for wash basins

Price : 217.12 ₹
Available Product Variants
Top Features
  • Complete fixing set with plug, stud screw, flush sleeve and nut.
  • The flush sleeve with collar prevents direct contact between the ceramics and screw, thus protecting the ceramics from damage.
  • UX plug for fixings in all solid and hollow building materials. Pre-positioned and push-through installation possible.
  • High-strength nylon that is resistant to ageing.
Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 80660 fischer Wash basin fixing WST 10 x 140
Packaging Foldingbox
Quantity/pack 2 [St.]
GTIN (EAN-Code) 4006209806609
Price / Pack 217.12 ₹

Product Description

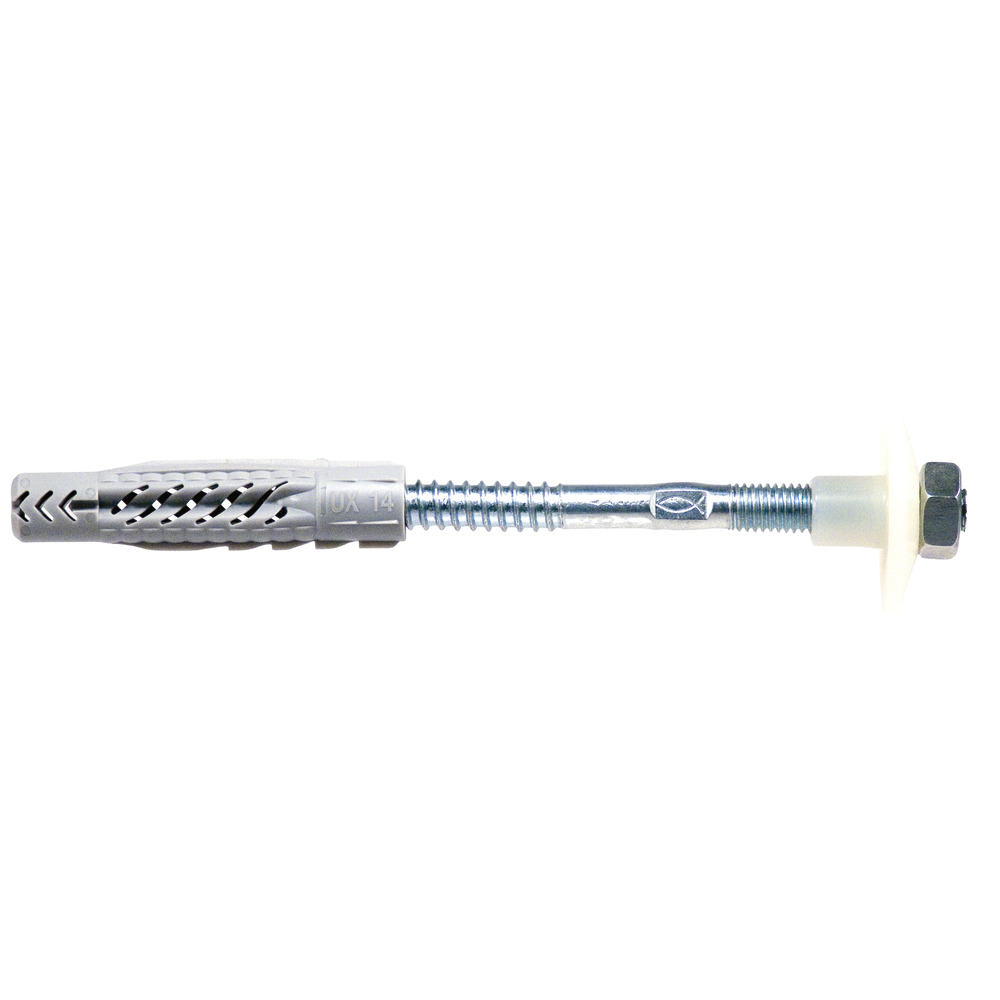

The fischer fixing set WST contains all elements required for the safe fixing of wash basins to the wall: Two fischer universal plugs UX 14 x 75 made from high-quality nylon, two zinc-plated stud screws, two zinc-plated hexagonal nuts and two flush sleeves. With the fischer universal plug UX, the set can be mounted in solid and hollow building materials.
Advantages
  • Complete fixing sets allow for quick and easy installation.
  • The universal plug UX can be used in all solid, hollow and board materials, thus offering a high level of flexibility.
  • Flanged nuts and collar sleeves made of high-strength nylon are resistant to ageing and chemicals, and guarantee a long-lasting fixing that will not damage the ceramics.

Application and Permission

Applications
  • Wash basins
  • Urinals
  • Built-in toilets
  • Cisterns
Building materials
  • Concrete
  • Vertically perforated brick
  • Hollow blocks made from lightweight concrete
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Natural stone
  • Aerated concrete
  • Solid panel made from gypsum
  • Solid brick made from lightweight concrete
  • Solid brick

You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality
  • The rimless UX is suitable for pre-positioned and push-through installation.
  • Screwing in the screw causes the UX to expand in solid and hollow building materials.
  • Maximum load-bearing capacity is achieved only if the minimum screw-in depth is reached.
  • Tiles and plaster are not classed as load-bearing base materials.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Packaging Foldingbox
Quantity/pack 2 [St.]
GTIN (EAN-Code) 4006209806609
Legend = Permission Available — = Permission not Available
