Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

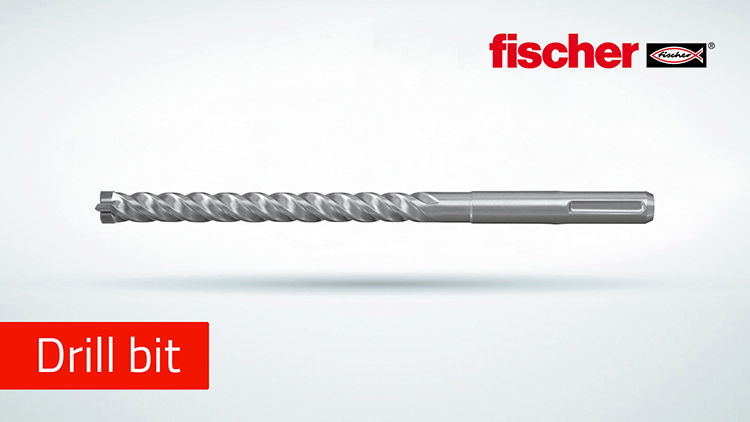

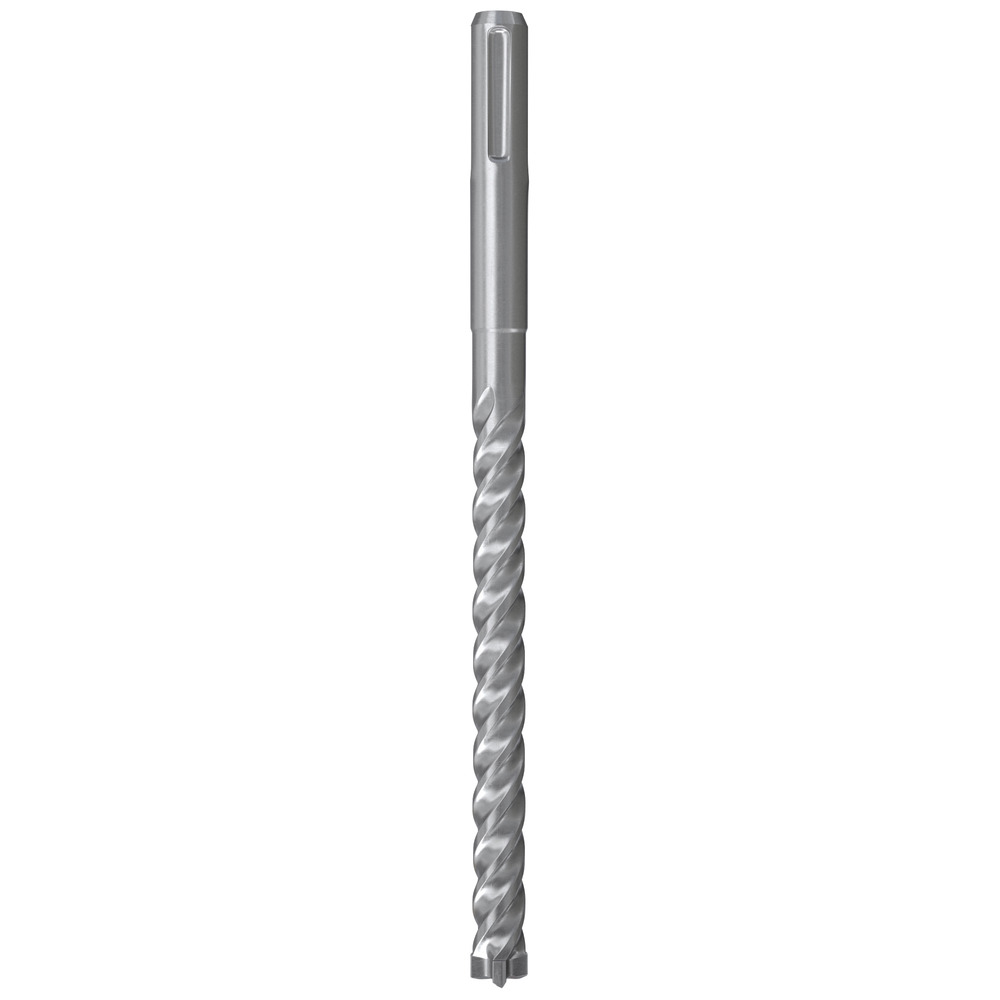

fischer hammer drill Quattric II is a high-performance drill bit with SDS-Plus adapter. The carbide head and the new two-piece spiral design enable faster drilling and increase service life. Its reinforcement chamfers prevent jamming in the reinforcement. The drill bit is perfectly suitable for approval-compliant drill holes in accordance with PGM.

To all Variants
Product Picture
Video
Product Picture
Video
1   1

Product Description

Advantages
  • Carbide head (up to ø 10mm) for long service life.
  • Power shoulders for improved breakup performance in concrete.
  • Massive main cutting edges for quick drilling progress.
  • Reinforcement chamfers prevent jamming in the reinforcement.
  • Centring tip for simple positioning.
  • Wear mark for simple recognition of wear limit in accordance with PGM.
  • Two-piece spiral for quick drilling progress and increased service life.

Available Product Variants

Variant
Drill diameter
Total length
Working length
Contents
Price/pack
Legend = Permission Available — = Permission not Available

Application and Permission

Applications
  • To create approval-compliant drill holes in unreinforced and reinforced concrete, solid brick, sand-lime brick.
Building materials
  • Reinforced / unreinforced concrete
  • Solid and vertically perforated brick
  • Sand-lime brick
  • Solid brick
  • Natural stone

* You can find detailed information on building materials in the registration document.
