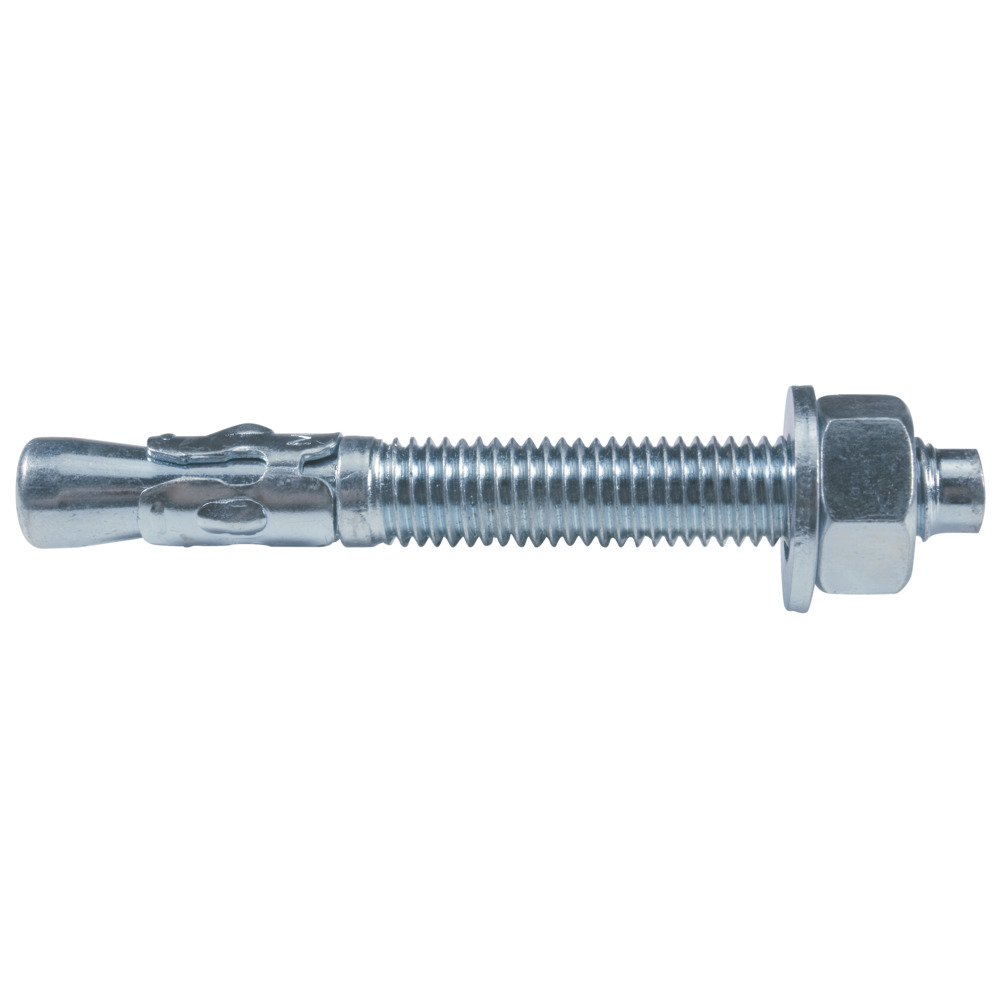

fischer Bolt Anchor FWA 10X95

The cost-effective fixation without approval - for use in non-cracked concrete

Price : 2360.00 ₹
Available Product Variants
Product Picture
Product Picture
Application Picture
Application Picture
1   3
Variant Art.-No. 45793 fischer Bolt Anchor FWA 10X95
Drill diameter 10 [mm]
Min. drill hole depth for through fixings 95 [mm]
Anchor length 95 [mm]
Width across nut 17 [mm]
Packaging Folding-box
Quantity/pack 50 [St.]
GTIN (EAN-Code) 4006209457931
Price / Pack 2360.00 ₹
The fischer bolt anchor FWA is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvanised steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.
Advantages
  • The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • Available with metric and imperial threads
