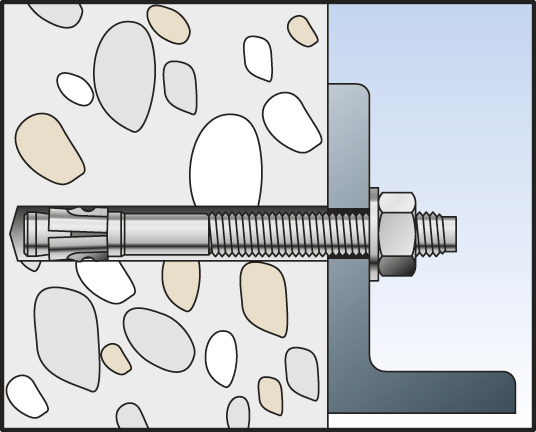

The fischer bolt anchor FWA is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvanised steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.
Product Description
Available Product Variants
Attributes
| Drill diameter | 6 [mm] |
| Min. drill hole depth for through fixings | 40 [mm] |
| Anchor length | 40 [mm] |
| Width across nut | 10 [mm] |
| Packaging | - |
| Quantity/pack | 100 [St.] |
| GTIN (EAN-Code) | 4006209455364 |
Attributes
| Drill diameter | 6 [mm] |
| Min. drill hole depth for through fixings | 70 [mm] |
| Anchor length | 70 [mm] |
| Width across nut | 10 [mm] |
| Packaging | - |
| Quantity/pack | 100 [St.] |
| GTIN (EAN-Code) | 4006209455982 |
Attributes
| Drill diameter | 10 [mm] |
| Min. drill hole depth for through fixings | 65 [mm] |
| Anchor length | 65 [mm] |
| Width across nut | 17 [mm] |
| Packaging | - |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4006209456453 |
Attributes
| Drill diameter | 12 [mm] |
| Min. drill hole depth for through fixings | 80 [mm] |
| Anchor length | 80 [mm] |
| Width across nut | 19 [mm] |
| Packaging | - |
| Quantity/pack | 25 [St.] |
| GTIN (EAN-Code) | 4006209456477 |
Attributes
| Drill diameter | 12 [mm] |
| Min. drill hole depth for through fixings | 100 [mm] |
| Anchor length | 100 [mm] |
| Width across nut | 19 [mm] |
| Packaging | - |
| Quantity/pack | 25 [St.] |
| GTIN (EAN-Code) | 4006209456484 |
Attributes
| Drill diameter | 16 [mm] |
| Min. drill hole depth for through fixings | 105 [mm] |
| Anchor length | 105 [mm] |
| Width across nut | 24 [mm] |
| Packaging | Folding-box |
| Quantity/pack | - |
| GTIN (EAN-Code) | 4006209456491 |
Attributes
| Drill diameter | 8 [mm] |
| Min. drill hole depth for through fixings | 65 [mm] |
| Anchor length | 65 [mm] |
| Width across nut | 13 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4006209457887 |
Attributes
| Drill diameter | 8 [mm] |
| Min. drill hole depth for through fixings | 80 [mm] |
| Anchor length | 80 [mm] |
| Width across nut | 13 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4006209457894 |
Attributes
| Drill diameter | 8 [mm] |
| Min. drill hole depth for through fixings | 95 [mm] |
| Anchor length | 95 [mm] |
| Width across nut | 13 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4006209457900 |
Attributes
| Drill diameter | 10 [mm] |
| Min. drill hole depth for through fixings | 80 [mm] |
| Anchor length | 80 [mm] |
| Width across nut | 17 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4006209457924 |
Attributes
| Drill diameter | 10 [mm] |
| Min. drill hole depth for through fixings | 95 [mm] |
| Anchor length | 95 [mm] |
| Width across nut | 17 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4006209457931 |
Attributes
| Drill diameter | 10 [mm] |
| Min. drill hole depth for through fixings | 115 [mm] |
| Anchor length | 115 [mm] |
| Width across nut | 17 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 25 [St.] |
| GTIN (EAN-Code) | 4006209457948 |
Attributes
| Drill diameter | 12 [mm] |
| Min. drill hole depth for through fixings | 120 [mm] |
| Anchor length | 120 [mm] |
| Width across nut | 19 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 25 [St.] |
| GTIN (EAN-Code) | 4006209457955 |
Attributes
| Drill diameter | 12 [mm] |
| Min. drill hole depth for through fixings | 150 [mm] |
| Anchor length | 150 [mm] |
| Width across nut | 19 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 25 [St.] |
| GTIN (EAN-Code) | 4006209457962 |
Attributes
| Drill diameter | 16 [mm] |
| Min. drill hole depth for through fixings | 140 [mm] |
| Anchor length | 140 [mm] |
| Width across nut | 24 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 10 [St.] |
| GTIN (EAN-Code) | 4006209457986 |
Attributes
| Drill diameter | 16 [mm] |
| Min. drill hole depth for through fixings | 180 [mm] |
| Anchor length | 180 [mm] |
| Width across nut | 24 [mm] |
| Packaging | Folding-box |
| Quantity/pack | 10 [St.] |
| GTIN (EAN-Code) | 4006209457993 |
Attributes
| Drill diameter | 20 [mm] |
| Min. drill hole depth for through fixings | 160 [mm] |
| Anchor length | 160 [mm] |
| Width across nut | 30 [mm] |
| Packaging | Folding-box |
| Quantity/pack | - |
| GTIN (EAN-Code) | 4006209458006 |

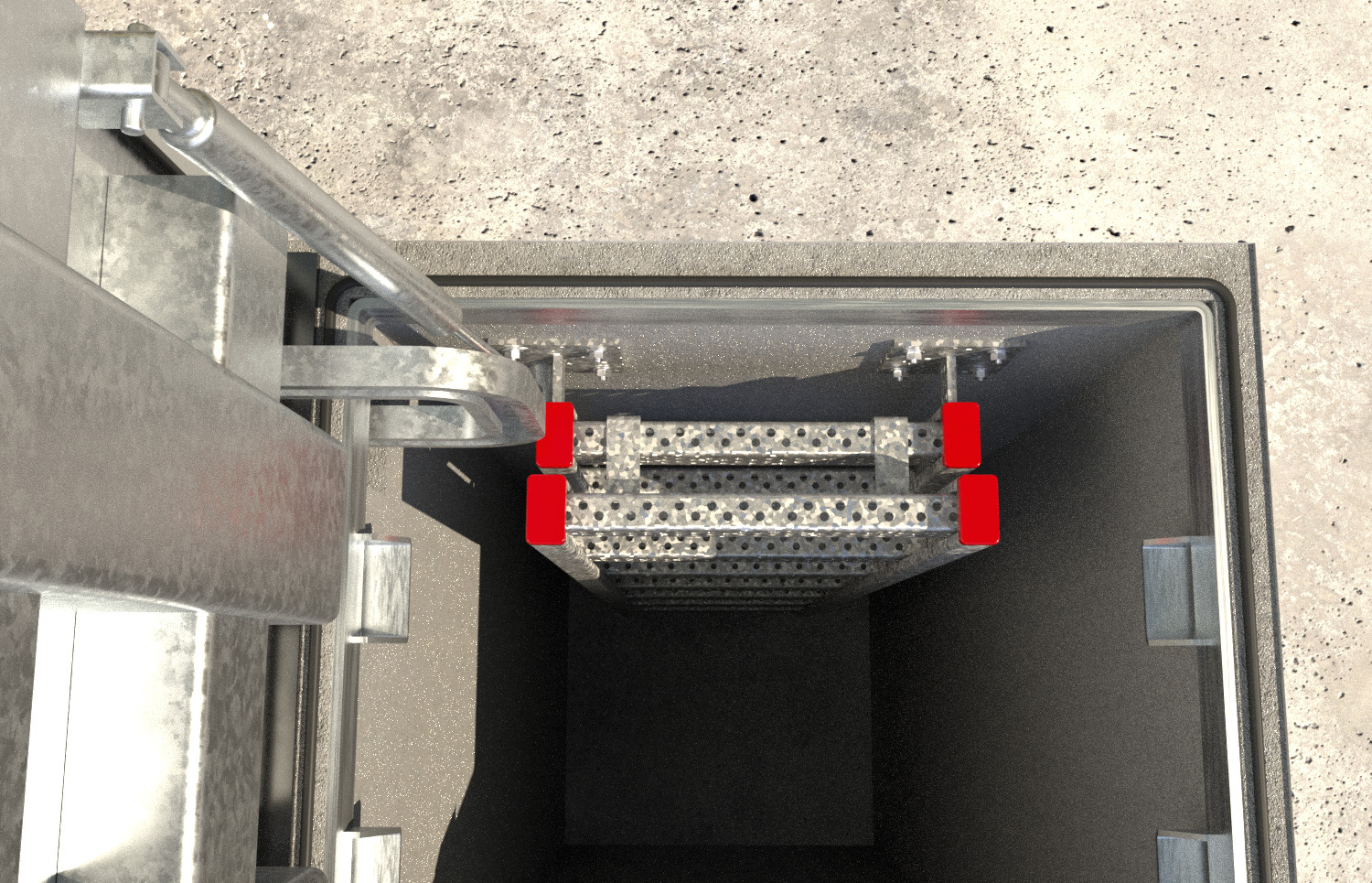

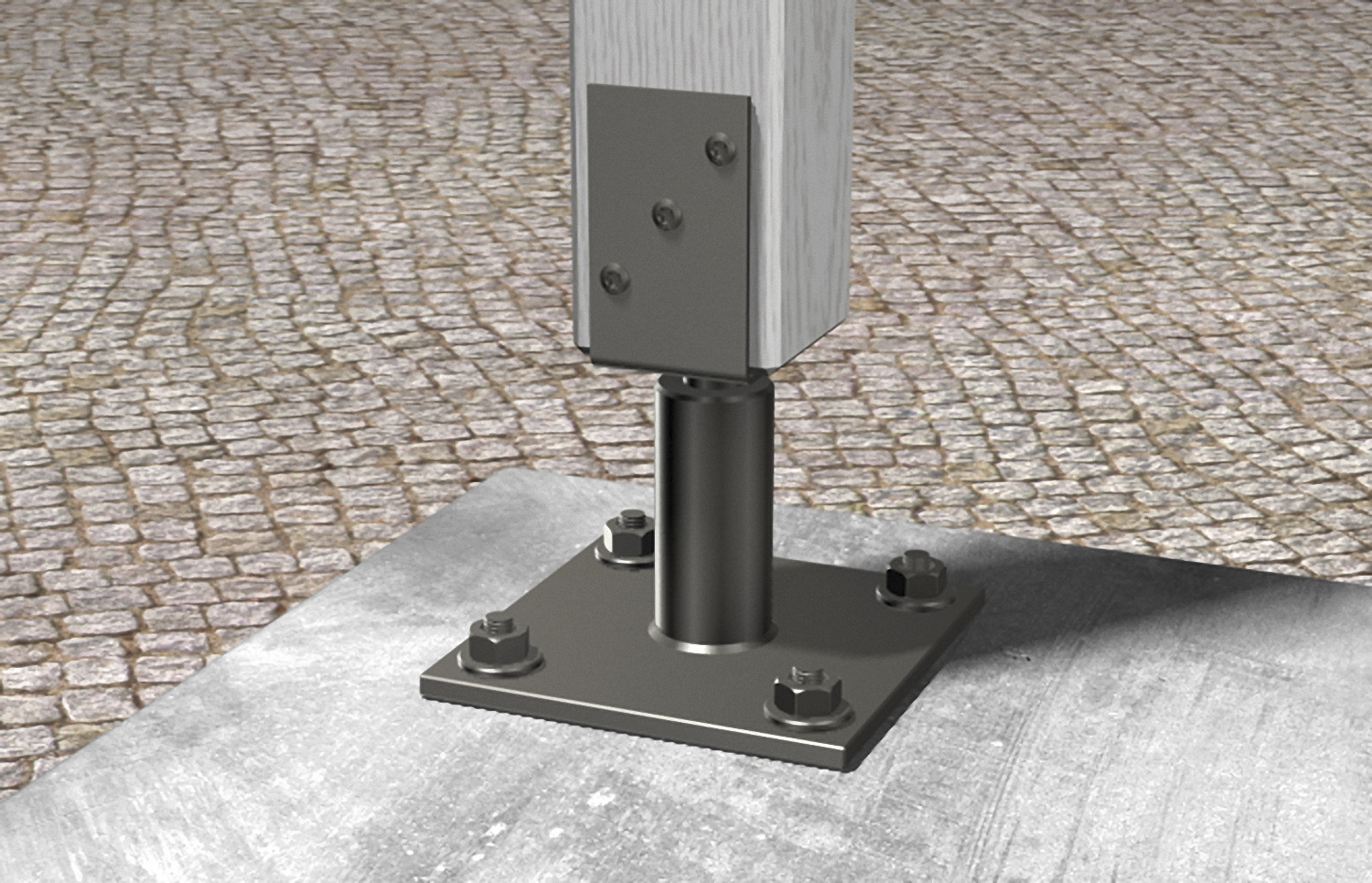

Application and Permission
* You can find detailed information on building materials in the registration document.

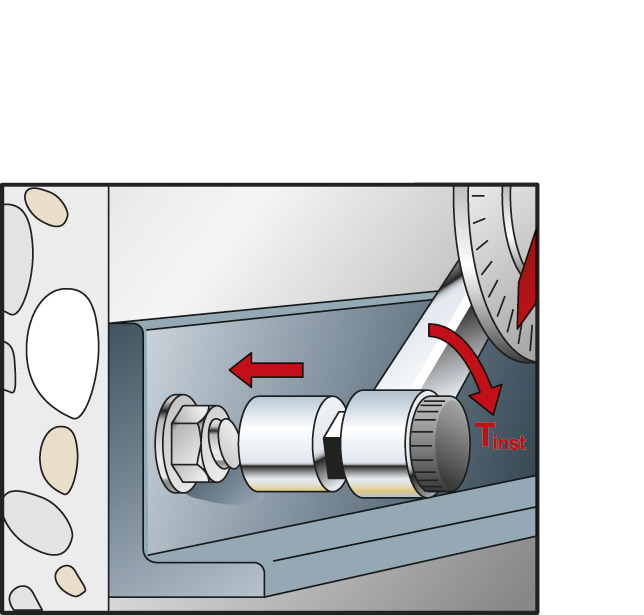

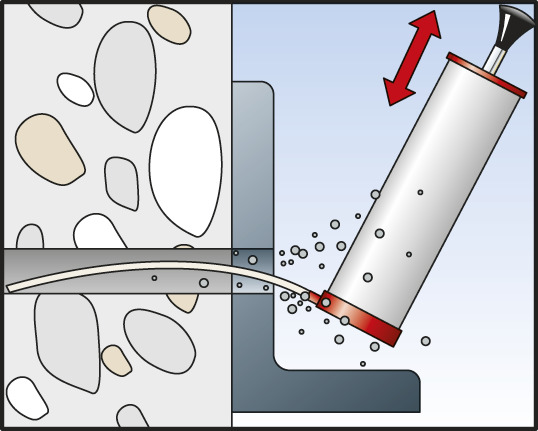

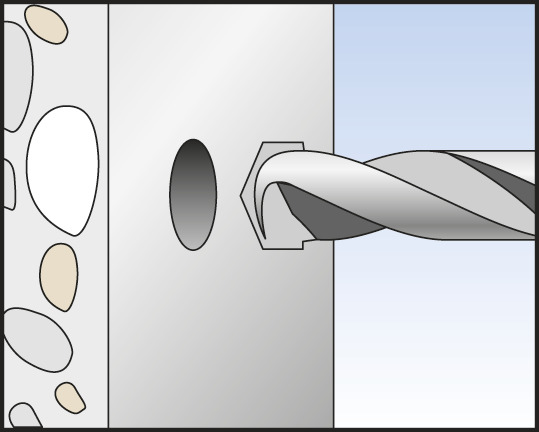

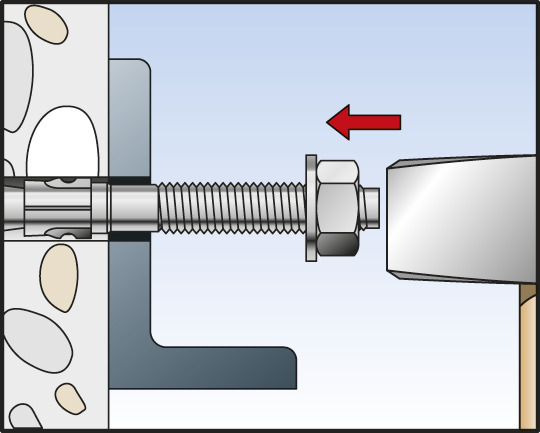

Assembly Instruction
