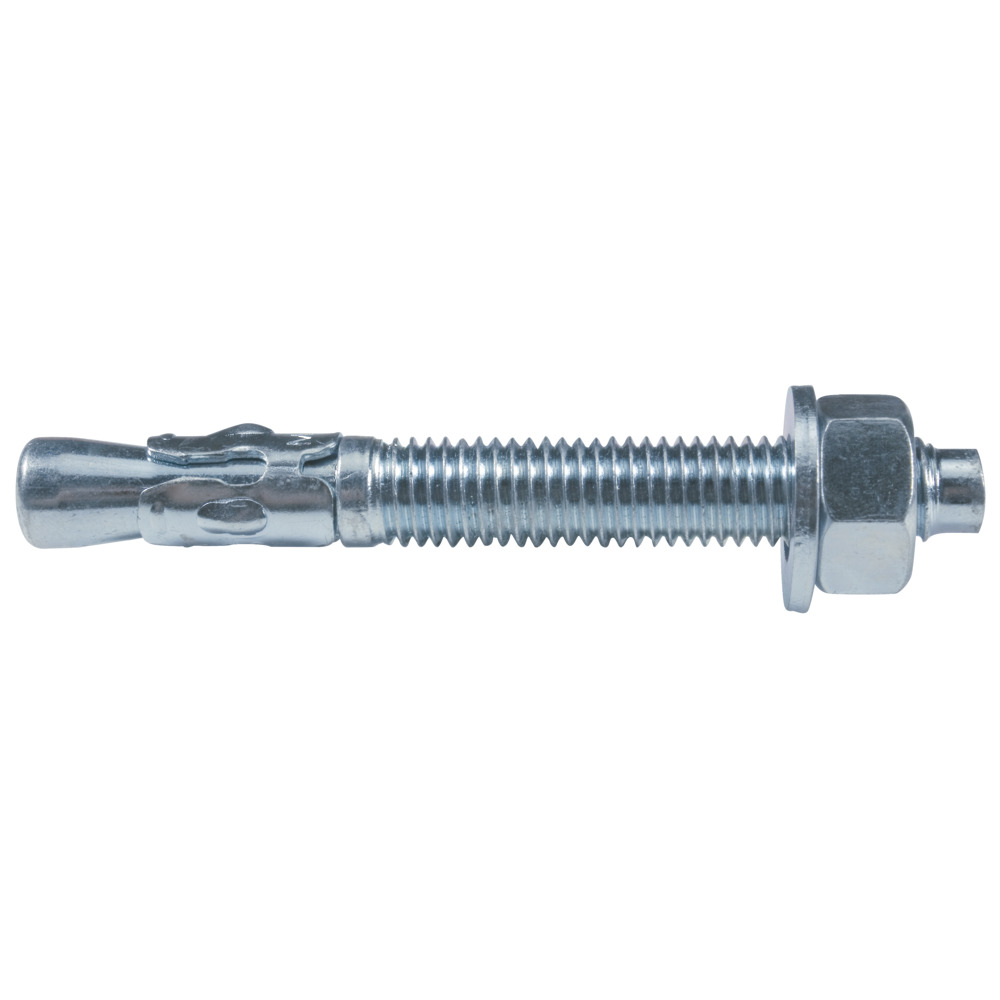

fischer Bolt Anchor FWA 12X150

The cost-effective fixation without approval - for use in non-cracked concrete

Price : 2336.40 ₹
Available Product Variants
Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 45796 fischer Bolt Anchor FWA 12X150
Drill diameter 12 [mm]
Min. drill hole depth for through fixings 150 [mm]
Anchor length 150 [mm]
Width across nut 19 [mm]
Packaging Folding-box
Quantity/pack 25 [St.]
GTIN (EAN-Code) 4006209457962
Price / Pack 2336.40 ₹

Product Description

The fischer bolt anchor FWA is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvanised steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.
Advantages
  • The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • Available with metric and imperial threads

Application and Permission

Applications
  • Steel constructions
  • Guard rails
  • Consoles
  • Ladders
  • Cable trays
  • Machines
  • Staircases
  • Gates
  • Façades
Building materials
  • Concrete C20/25, non-cracked

* You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality
  • The FWA is suitable for pre-positioned and push-through installation.
  • Prior to installation, place the hex nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hex nut).
  • When the torque is applied, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Drill diameter 12 [mm]
Min. drill hole depth for through fixings 150 [mm]
Anchor length 150 [mm]
Width across nut 19 [mm]
Packaging Folding-box
Quantity/pack 25 [St.]
GTIN (EAN-Code) 4006209457962
Legend = Permission Available — = Permission not Available
