fischer Frame Fixing SXR 10X200 FUS hexagonal screw gvz

The efficient with short expansion element

Price : 8118.40 ₹
Available Product Variants
Top Features
  • Low anchorage depth saves time and costs.
  • ETA rating in concrete and masonry.
  • Plug expands in solid building materials.
  • The plug anchors itself in the cavity in perforated building materials.
  • With pre-mounted safety screw with hexagonal hexagonal head and moulded washer.

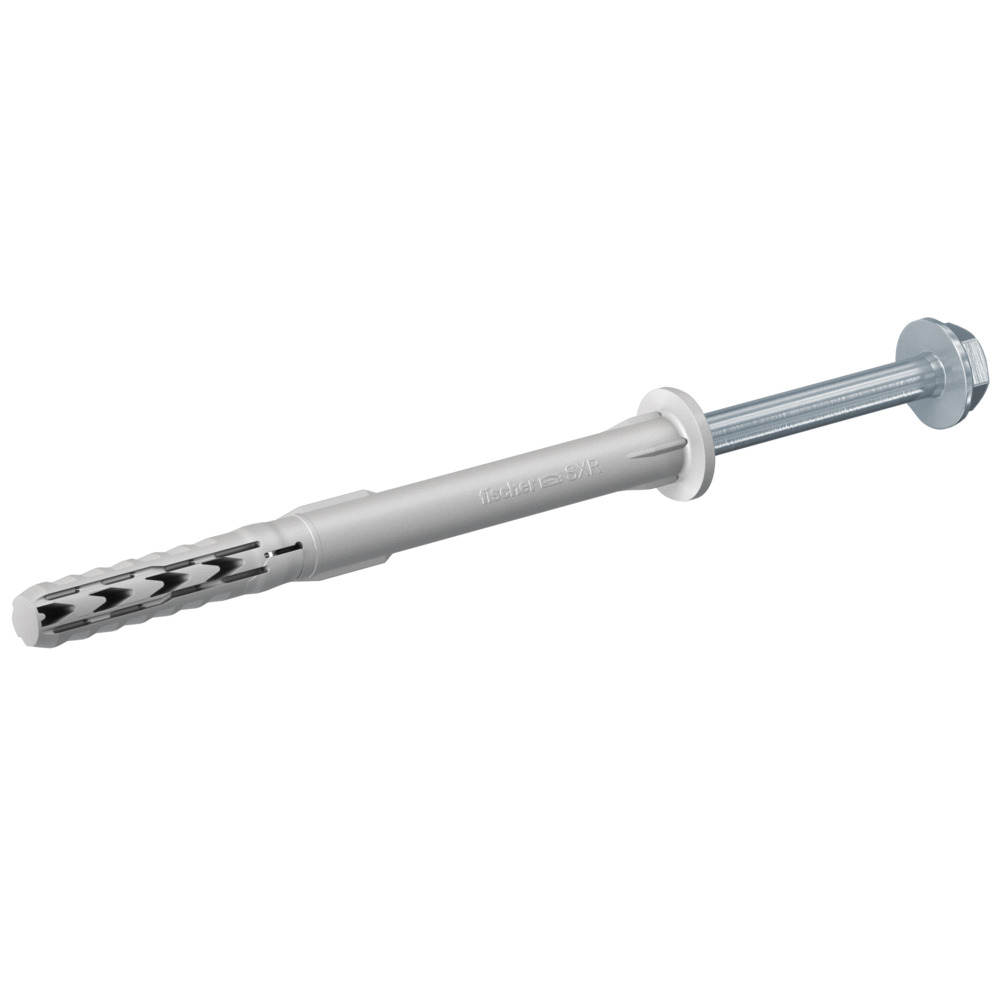

Product Picture

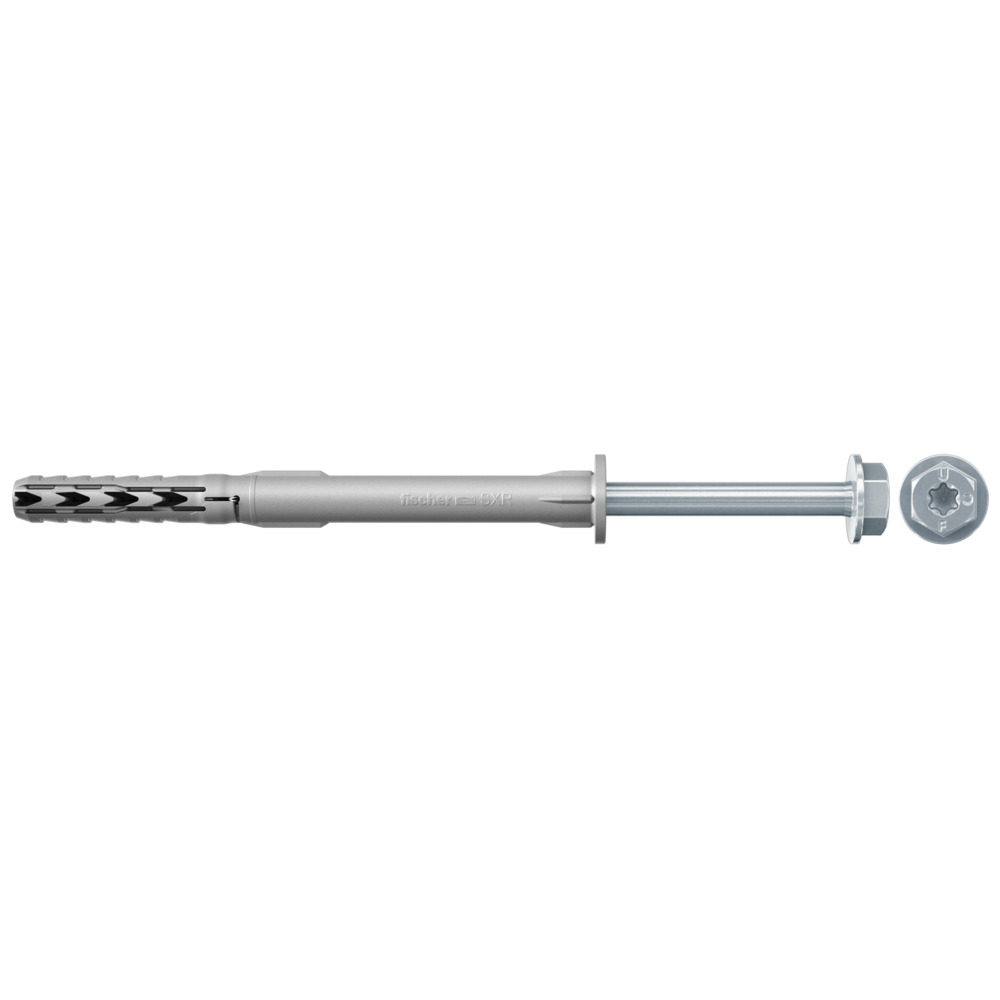

Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 46336 fischer Frame Fixing SXR 10X200 FUS hexagonal screw gvz
ETA-approval
Drill diameter 10 [mm]
Min. drill hole depth for through fixings 210 [mm]
Anchor length 200 [mm]
Max. fixture thickness 150 [mm]
Drive TX40/SW-13
Packaging Folding-box
Quantity/pack 50 [St.]
GTIN (EAN-Code) 4006209463369
Price / Pack 8118.40 ₹

Product Description

The fischer frame fixing SXR is a plug made from high-quality nylon. Thanks to its special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of just 50 mm, the frame fixing can work particularly cost-effectively. The low drill hole depth saves time and reduces bit wear. The SXR is offered with a diameter of 10 mm up to a fixing length of 260 mm with hexagonal screws made from zinc-plated steel, hot-dip galvanised steel and stainless steel. The European Technical Approval offers added safety. The SXR with hexagonal screw and moulded washer is particularly recommended for fixing metal constructions.
Advantages
  • The special functioning allows for use in solid and hollow building materials with an anchorage depth of just 50 mm, ensuring an economical fixing.
  • The ETA assessment covers use in a range of solid and hollow building materials, and guarantees a secure fixing.
  • The specially developed combination of plugs and screws ensures the very best handling. The plug has a noticeable hold, making installation more convenient.

Application and Permission

Applications
  • Façade, ceiling and roof substructures made of wood and metal
  • Windows
  • Gates and doors
  • Wardrobes
  • Kitchen hanging cabinets
  • Squared timbers
  • Beams
  • TV consoles
  • Wall covering
  • Metal brackets
  • Metal supports
  • Cable ducts
  • Cable trays
Building materials

Approved for:

  • Concrete ≥ C12/15
  • Vertically perforated brick
  • Hollow blocks made from lightweight concrete
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Aerated concrete
  • Solid block made from lightweight and normal weight concrete
  • Solid brick
  • Thermal insulation blocks Also suitable for:
  • Natural stone with dense structure
  • Solid panel made from gypsum * You can find detailed information on building materials in the registration document.

Permission

  • ETA-07/0121
  • DoP No. 0048
  • DoP No. 0092
  • DoP No. 0152

Assembly Instruction

Functionality
  • The SXR is suitable for push-through installation.
  • The SXR expands in solid building materials.
  • In hollow building materials the loads are transferred in the area of the block fillets.
  • With vertically perforated bricks, only use rotary drilling (no impact drilling).
  • Countersunk head screws are recommended for fixing timber constructions. For metal constructions, plug with wide sleeve rim and hexagon head screws with moulded washer.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Drill diameter 10 [mm]
Min. drill hole depth for through fixings 210 [mm]
Anchor length 200 [mm]
Max. fixture thickness 150 [mm]
Drive TX40/SW-13
Packaging Folding-box
Quantity/pack 50 [St.]
GTIN (EAN-Code) 4006209463369
Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 12 MB) European Technical Assessment fischer Frame fixing SXR / SXRL ETA-07/0121 13-12-2018
DOP - Declaration of Performance (PDF, 7 MB) Declaration of Performance fischer Frame fixing SXR / SXRL, according European Technical Assessment ETA-07/0121 DoP No. 0048 20-04-2015
DOP - Declaration of Performance (PDF, 8 MB) Declaration of Performance fischer Frame fixing SXR / SXRL, according European Technical Assessment ETA-07/0121 DoP No. 0092 06-04-2017
DOP - Declaration of Performance (PDF, 11 MB) Declaration of Performance fischer Frame fixing SXR / SXRL, according European Technical Assessment ETA-07/0121 DoP No. 0152 20-12-2018
