fischer Frame Fixing SXR 8X100 T with safety screw gvz

The efficient with short expansion element

Price : 2596.00 ₹
Available Product Variants
Top Features
  • Cost-effective fixing due to low anchorage depth.
  • Plug expands in solid building materials.
  • The plug anchors itself in the cavity in perforated building materials.
  • ETA approval in concrete and masonry.
  • With safety screw with countersunk head.

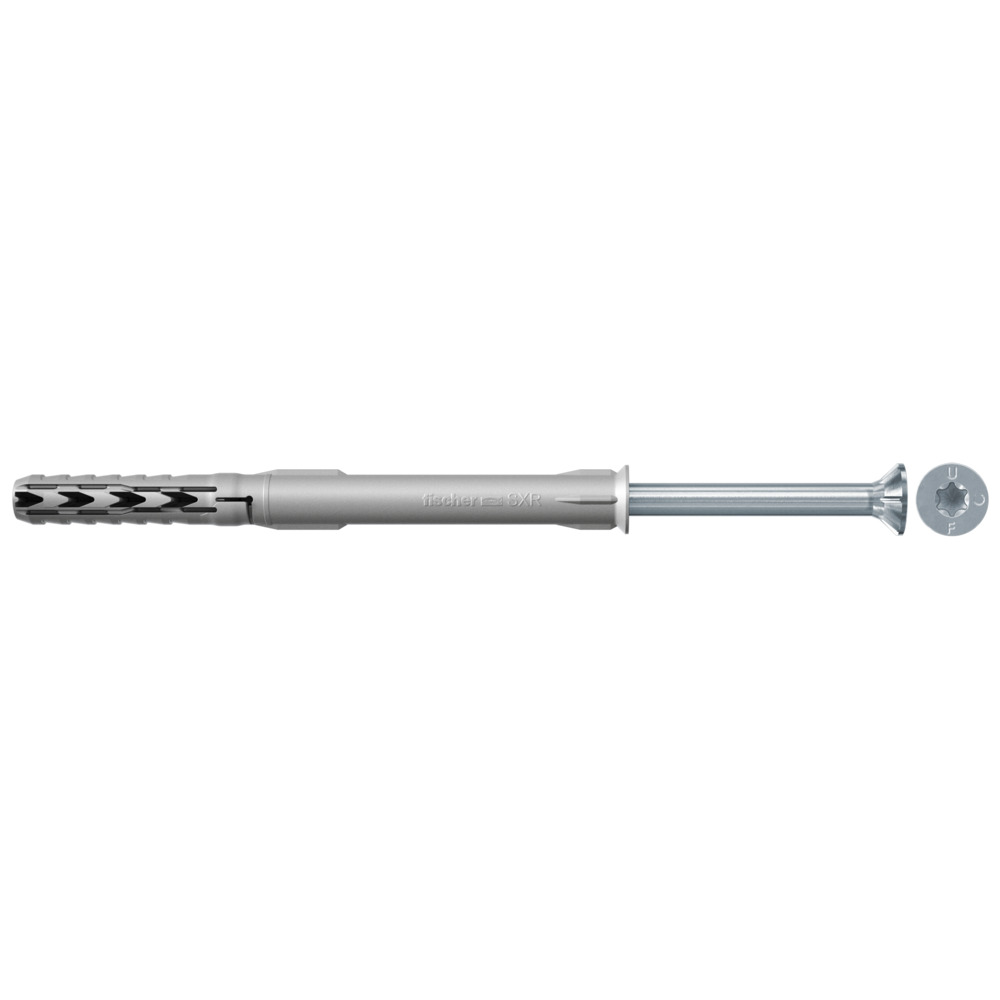

Product Picture

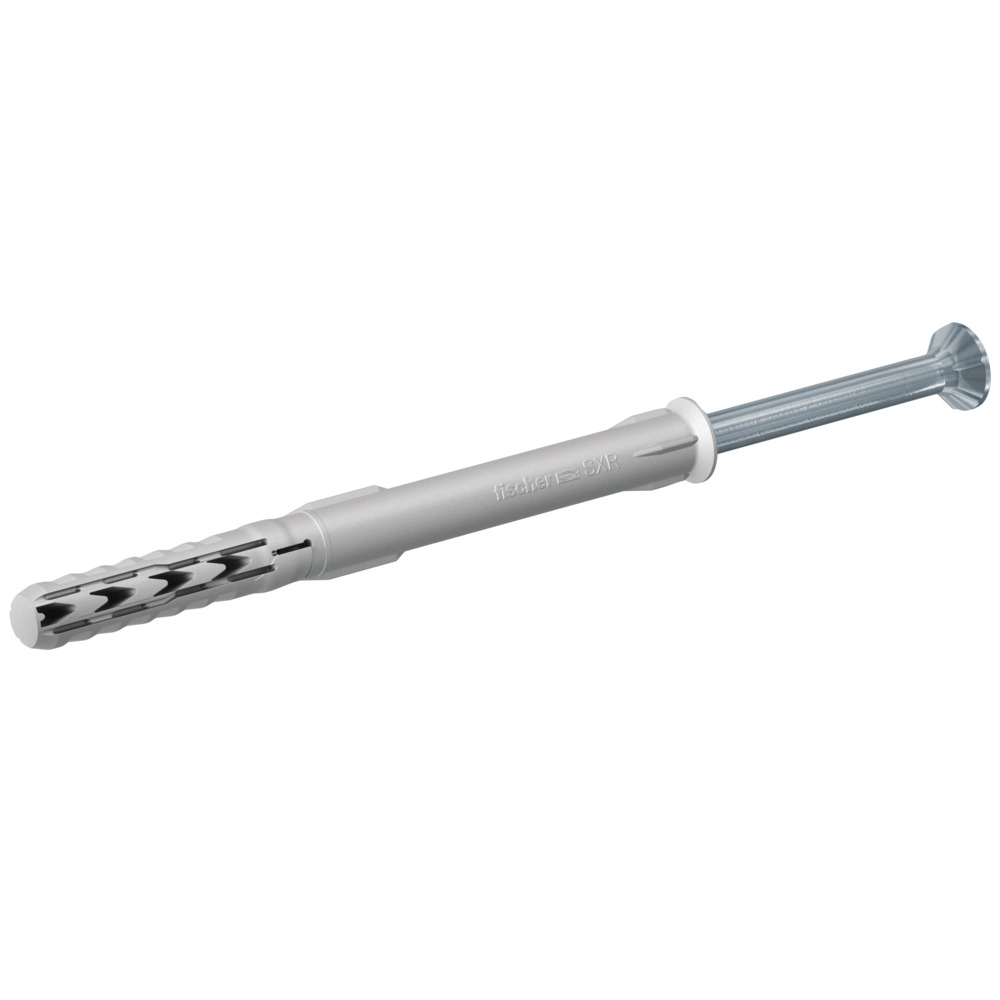

Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 503001 fischer Frame Fixing SXR 8X100 T with safety screw gvz
ETA-approval
Drill diameter 8 [mm]
Min. drill hole depth for through fixings 110 [mm]
Anchor length 100 [mm]
Max. fixture thickness 50 [mm]
Drive TX30
Packaging Folding-box
Quantity/pack 50 [St.]
GTIN (EAN-Code) 4048962016291
Price / Pack 2596.00 ₹

Product Description

The fischer frame fixing SXR-T is a plug made of high-quality nylon along with the pre-mounted fischer safety screw with countersunk head. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of only 50 mm, the frame fixing can be handled in an especially cost-effective manner for multiple fixing of non-load-bearing systems. The fischer frame fixing SXR-T is particularly recommended with the countersunk head screw for fixing timber constructions.
Advantages
  • The special functioning allows for use in solid and hollow building materials with an anchorage depth of just 50 mm, ensuring an economical fixing.
  • The ETA assessment covers use in a range of solid and hollow building materials, and guarantees a secure fixing.
  • The specially developed combination of plugs and screws ensures the very best handling. The plug has a noticeable hold, making installation more convenient.
  • The extensive range offers the right plug for every fixing.

Application and Permission

Applications
  • Façade, ceiling and roof substructures made of wood and metal
  • Windows
  • Gates and doors
  • Wardrobes
  • Kitchen hanging cabinets
  • Squared timbers
  • Beams
  • TV consoles
  • Wall covering
  • Metal brackets
  • Metal supports
  • Cable ducts
  • Cable trays
Building materials

Approved for:

  • Concrete ≥ C12/15
  • Vertically perforated brick
  • Hollow blocks made from lightweight concrete
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Aerated concrete
  • Solid block made from lightweight and normal weight concrete
  • Solid brick
  • Thermal insulation blocks

Also suitable for:

  • Natural stone with dense structure
  • Solid panel made from gypsum

You can find detailed information on building materials in the registration document.

Permission

  • ETA-07/0121
  • DoP No. 0048
  • DoP No. 0092
  • DoP No. 0152

Assembly Instruction

Functionality
  • The SXR is suitable for push-through installation.
  • The SXR expands in solid building materials.
  • In hollow building materials the loads are transferred in the area of the block fillets.
  • With vertically perforated bricks, only use rotary drilling (no impact drilling).
  • Countersunk head screws are recommended for fixing timber constructions. For metal constructions, plug with wide sleeve rim and hexagon head screws with moulded washer.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Drill diameter 8 [mm]
Min. drill hole depth for through fixings 110 [mm]
Anchor length 100 [mm]
Max. fixture thickness 50 [mm]
Drive TX30
Packaging Folding-box
Quantity/pack 50 [St.]
GTIN (EAN-Code) 4048962016291
Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 12 MB) European Technical Assessment fischer Frame fixing SXR / SXRL ETA-07/0121 13-12-2018
DOP - Declaration of Performance (PDF, 7 MB) Declaration of Performance fischer Frame fixing SXR / SXRL, according European Technical Assessment ETA-07/0121 DoP No. 0048 20-04-2015
DOP - Declaration of Performance (PDF, 8 MB) Declaration of Performance fischer Frame fixing SXR / SXRL, according European Technical Assessment ETA-07/0121 DoP No. 0092 06-04-2017
DOP - Declaration of Performance (PDF, 11 MB) Declaration of Performance fischer Frame fixing SXR / SXRL, according European Technical Assessment ETA-07/0121 DoP No. 0152 20-12-2018
