fischer Concrete Screw FBS II 12X110 50/35/10 US

The high-performance concrete screw for absolute installation ease

Price : 5852.80 ₹
Available Product Variants
Top Features
  • With up to 3 embedment depths, it allows for the same screw to be used for different component thicknesses.
  • The special saw tooth geometry enables fast cutting into the concrete.
  • The approved adjustment for the concrete screws allows the screw to be unscrewed twice to align the attached part, and then to tighten the screw again.

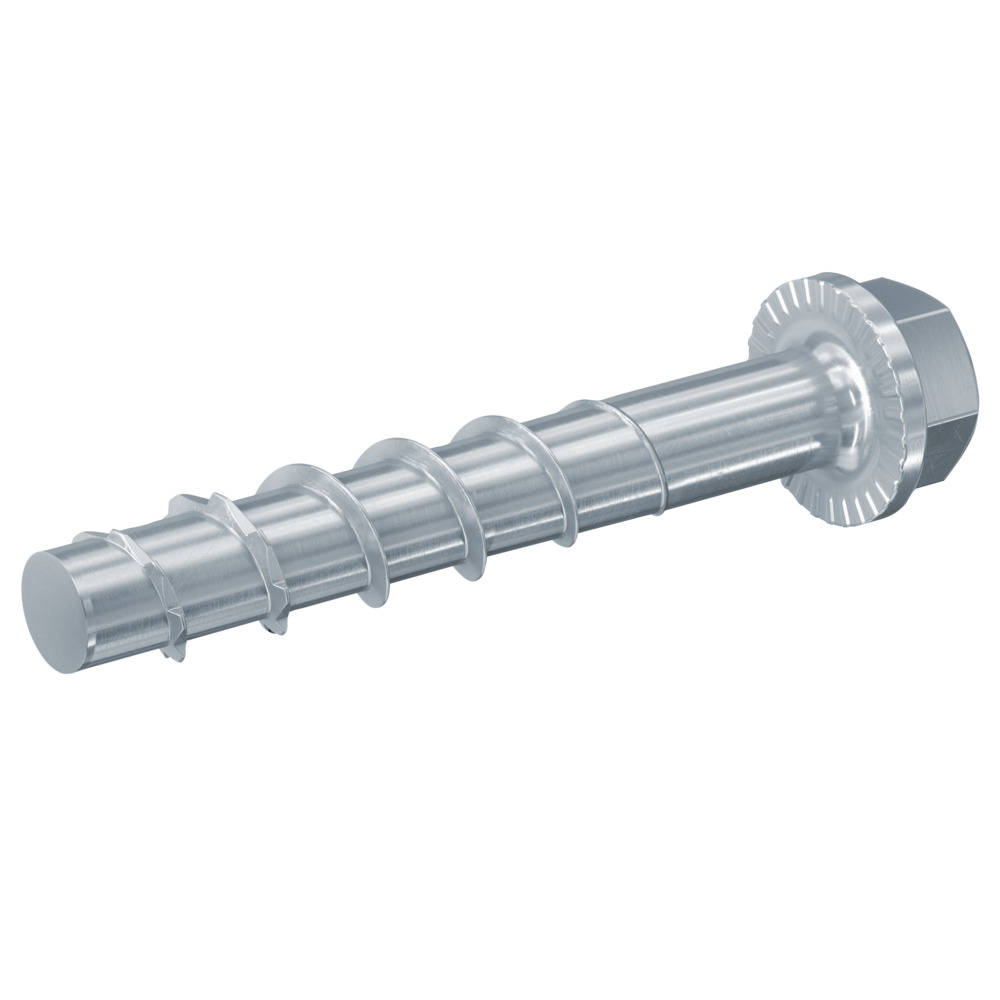

Product Picture

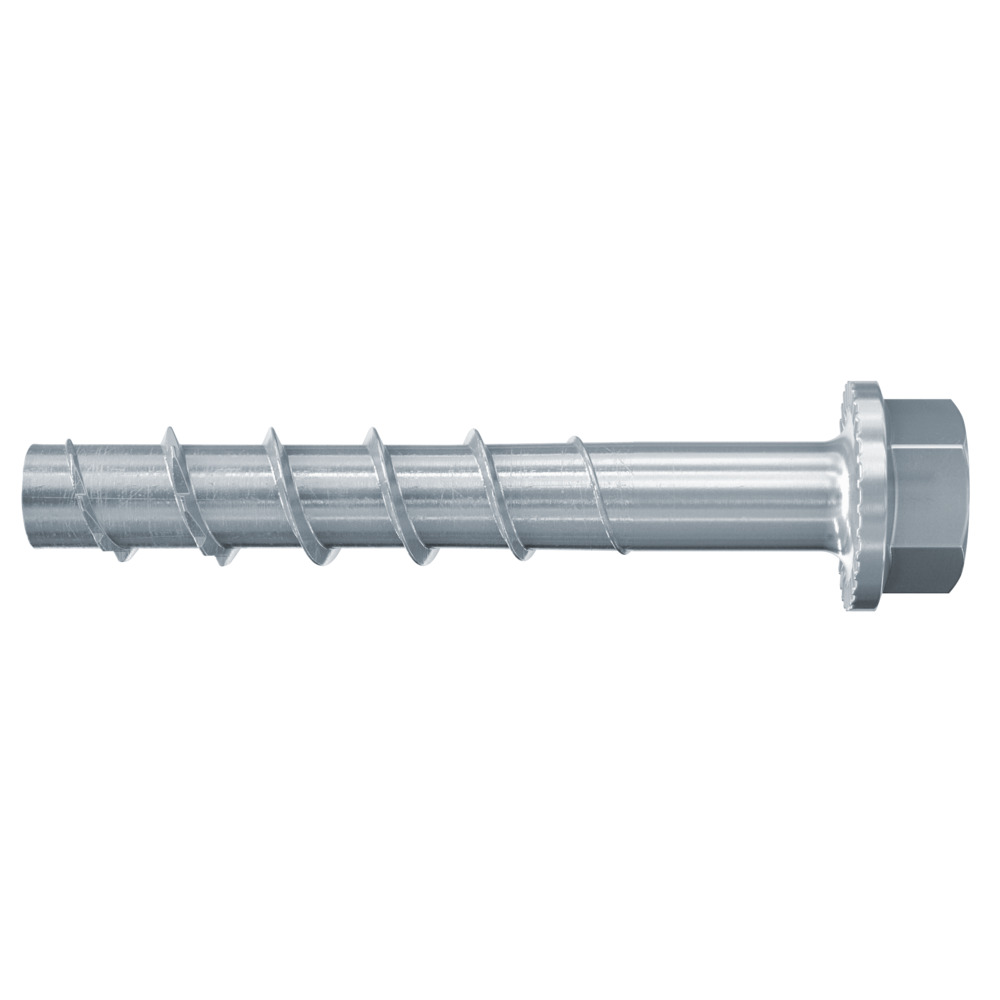

Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 536871 fischer Concrete Screw FBS II 12X110 50/35/10 US
ETA-approval
Drill diameter 12 [mm]
Screw 14x110 [mm]
Screw-in depth with fixture thickness 100/10 [mm]
Drive SW-17
Packaging Folding-box
Quantity/pack 20 [St.]
GTIN (EAN-Code) 4048962251548
Price / Pack 5852.80 ₹

Product Description

The fischer ULTRACUT FBS II is the perfect concrete screw for top installation comfort. The special saw tooth geometry enables fast cutting into the concrete. Drill hole cleaning is not required for installations in ceilings or floors. Thanks to the national approval, multiple usage for temporary anchorings (for example, formwork construction) is permitted. For the installation of the wall screw, we recommend a tangential impact driver with a compatible socket or a special TX bit. The concrete screw is ideal for the fixation of railings, protection barriers, cantilevers, and formwork bracings, for example.
Advantages
  • With up to 3 embedment depths, the ULTRACUT FBS II US allows for the same screw to be used for different component thicknesses.
  • The special saw tooth geometry enables fast cutting into the concrete.
  • Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
  • Expansion-free anchoring (undercut) allows for lowest edge- and axial spacings.
  • The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2.
  • The approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again.
  • The checking gauge allows for reuse in temporary fixings (e.g. inclined supports) covered by the national approval.

Application and Permission

Applications
  • Guard rails
  • Consoles/Base plates
  • Metal profiles
  • Shelving systems
  • Protection barriers
  • Results / beam anchors
  • Temporary anchoring, e.g. of building site equipment
  • Shuttering props
Building materials

Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked Also suitable for:
  • Concrete C12/15
  • Solid building materials
  • Masonry with a dense structure

* You can find detailed information on building materials in the registration document.

Permission

  • ETA-15/0352
  • DoP 0184
  • DoP No. 0078
  • DoP No. 0146
  • Z-21.8-2049

Assembly Instruction

Functionality
  • The ULTRACUT FBS II is recommended for the push-through installation.
  • Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
  • We recommend using a tangential impact screwdriver with a suitable impact screwdriver socket or an internal TX drive.
  • The screw is installed correctly when the screw head sits flush on the fixture and cannot be screwed in deeper (visual setting control).
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Drill diameter 12 [mm]
Screw 14x110 [mm]
Screw-in depth with fixture thickness 100/10 [mm]
Drive SW-17
Packaging Folding-box
Quantity/pack 20 [St.]
GTIN (EAN-Code) 4048962251548
Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 5 MB) European Technical Assessment for fischer concrete screw ULTRACUT FBS II 05-10-2020
DOP - Declaration of Performance (PDF, 3 MB) DoP 0184 28-04-2020
DOP - Declaration of Performance (PDF, 2 MB) DoP No. 0078 19-04-2016
DOP - Declaration of Performance (PDF, 3 MB) DoP No. 0146 06-11-2018
DIBt, National German Approval (PDF, 1 MB) Z-21.8-2049 13-07-2016 13-07-2021
