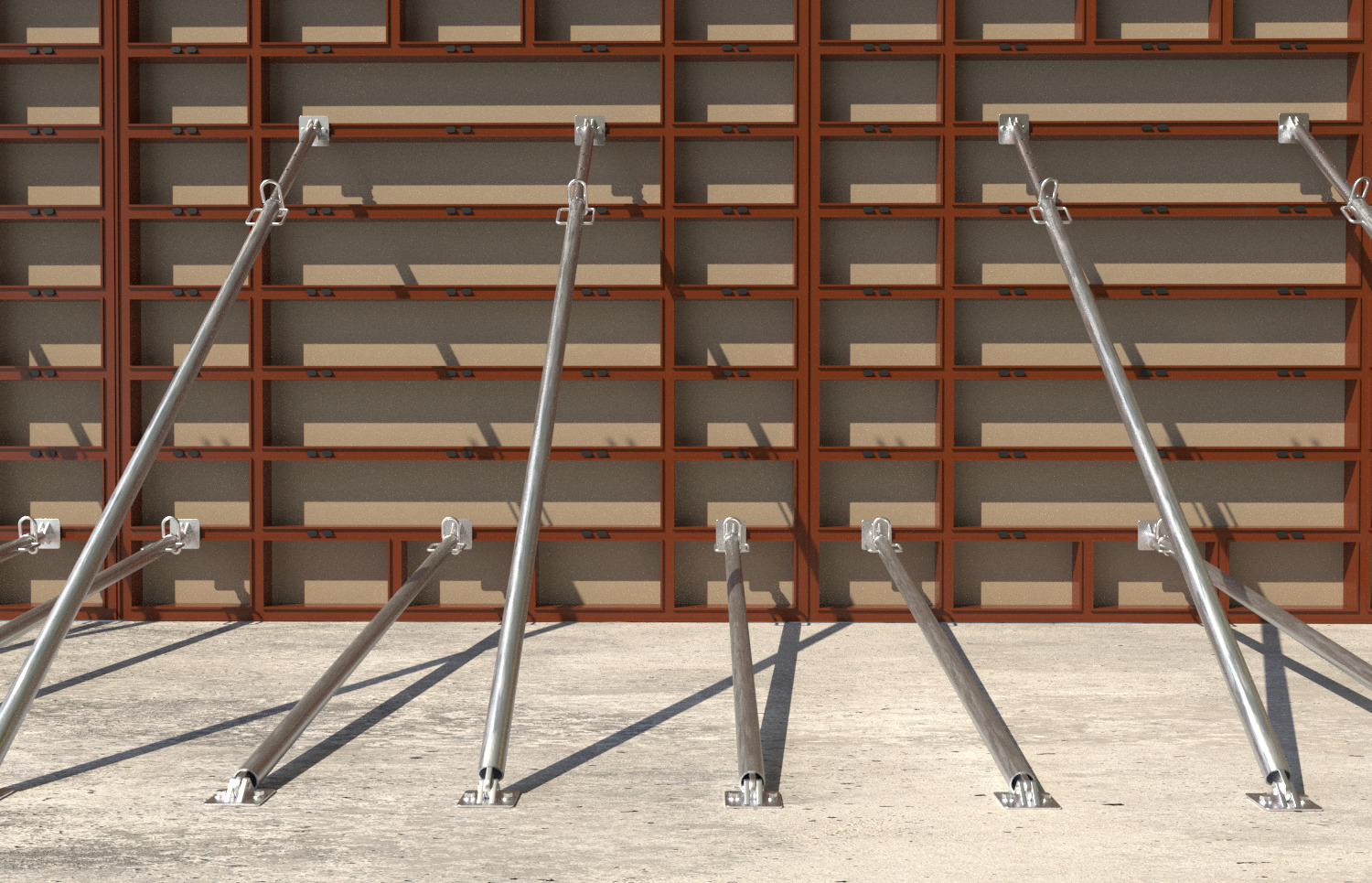

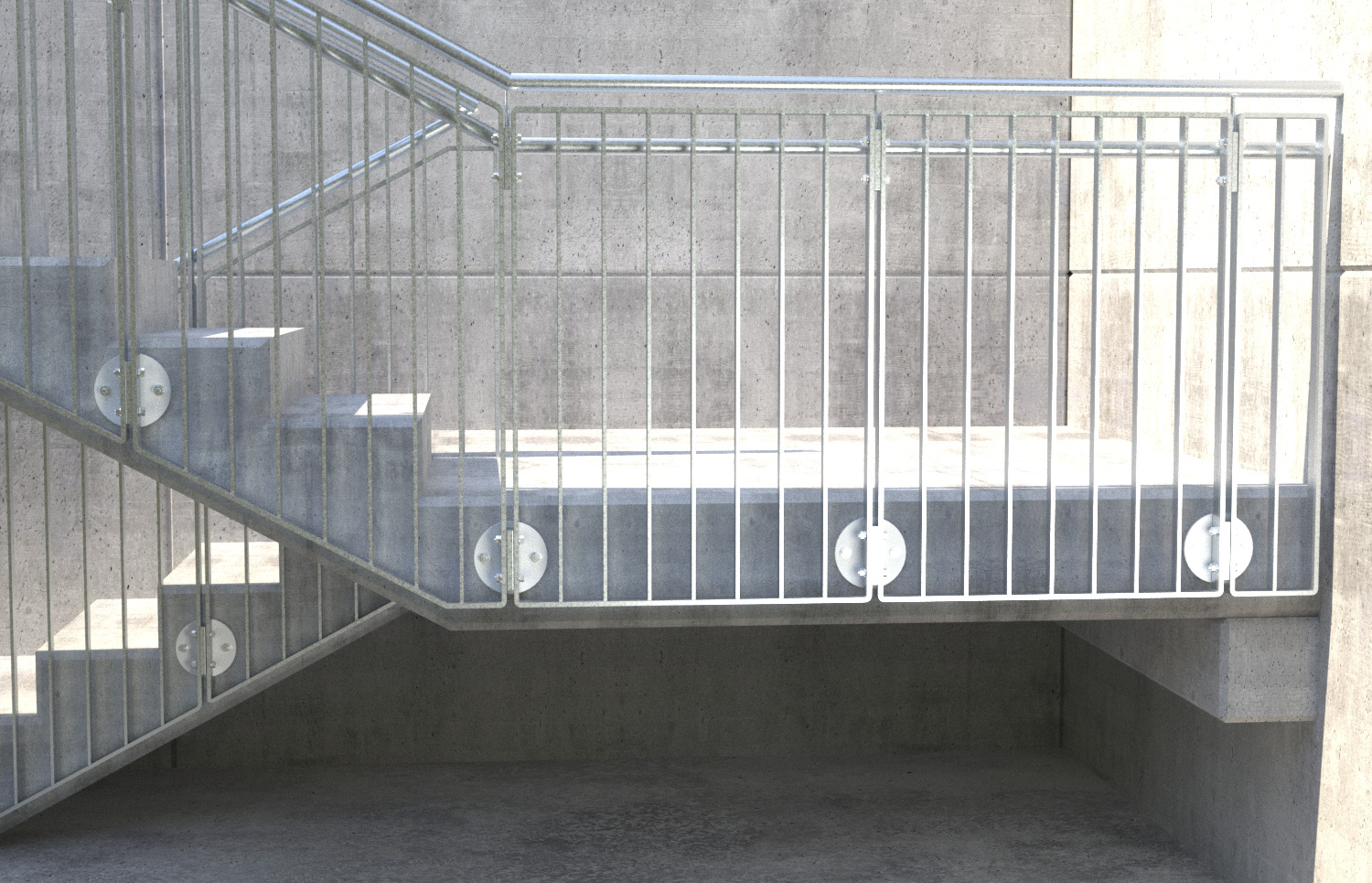

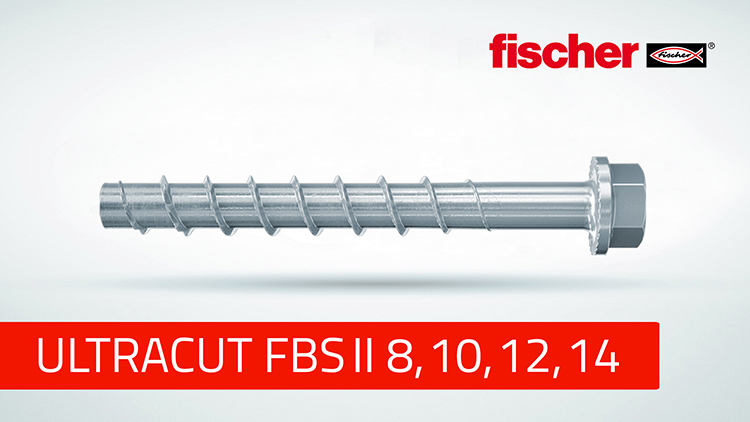

The fischer ULTRACUT FBS II is the perfect concrete screw for top installation comfort. The special saw tooth geometry enables fast cutting into the concrete. Drill hole cleaning is not required for installations in ceilings or floors. Thanks to the national approval, multiple usage for temporary anchorings (for example, formwork construction) is permitted. For the installation of the wall screw, we recommend a tangential impact driver with a compatible socket or a special TX bit. The concrete screw is ideal for the fixation of railings, protection barriers, cantilevers, and formwork bracings, for example.
Product Description
Available Product Variants
Attributes
Attributes
| ETA-approval | |
| Drill diameter | 8 [mm] |
| Screw | 10x80 [mm] |
| Screw-in depth with fixture thickness | 65/65 [mm] |
| Drive | TX40/SW-13 |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4048962251364 |
Attributes
| ETA-approval | |
| Drill diameter | 10 [mm] |
| Screw | 12x70 [mm] |
| Screw-in depth with fixture thickness | - |
| Drive | SW-15 |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4048962251425 |
Attributes
| ETA-approval | |
| Drill diameter | 10 [mm] |
| Screw | 12x90 [mm] |
| Screw-in depth with fixture thickness | 85/5 [mm] |
| Drive | SW-15 |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4048962251449 |
Attributes
| ETA-approval | |
| Drill diameter | 10 [mm] |
| Screw | 12x100 [mm] |
| Screw-in depth with fixture thickness | 85/15 [mm] |
| Drive | SW-15 |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4048962251456 |
Attributes
| ETA-approval | |
| Drill diameter | 10 [mm] |
| Screw | 12x120 [mm] |
| Screw-in depth with fixture thickness | 85/35 [mm] |
| Drive | SW-15 |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4048962251463 |
Attributes
| ETA-approval | |
| Drill diameter | 12 [mm] |
| Screw | 14x110 [mm] |
| Screw-in depth with fixture thickness | 100/10 [mm] |
| Drive | SW-17 |
| Packaging | Folding-box |
| Quantity/pack | 20 [St.] |
| GTIN (EAN-Code) | 4048962251548 |
Attributes
| ETA-approval | |
| Drill diameter | 14 [mm] |
| Screw | 16x125 [mm] |
| Screw-in depth with fixture thickness | 85/5 [mm] |
| Drive | SW-21 |
| Packaging | Folding-box |
| Quantity/pack | 10 [St.] |
| GTIN (EAN-Code) | 4048962251609 |
Attributes
| ETA-approval | |
| Drill diameter | 10 [mm] |
| Screw | 12x120 [mm] |
| Screw-in depth with fixture thickness | 85/15 [mm] |
| Drive | TX50 |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4048962251708 |
Attributes
| ETA-approval | |
| Drill diameter | 10 [mm] |
| Screw | 12x120 [mm] |
| Screw-in depth with fixture thickness | 85/35 [mm] |
| Drive | TX50 |
| Packaging | Folding-box |
| Quantity/pack | 50 [St.] |
| GTIN (EAN-Code) | 4048962251715 |
Application and Permission
Approved for:
* You can find detailed information on building materials in the registration document.

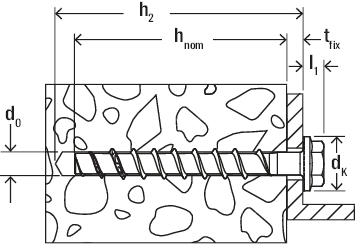

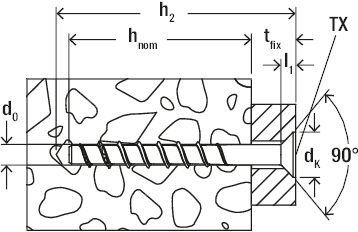

Assembly Instruction
Documents for Downloading
Additional Documents
Approvals
| Title | Type | Created | Valid Till |
|---|---|---|---|
| Title ETA - European Technical Assessment (PDF, 5 MB) European Technical Assessment for fischer concrete screw ULTRACUT FBS II | Type | Created 05-10-2020 | Valid Till |
| Title DOP - Declaration of Performance (PDF, 3 MB) | Type DoP 0184 | Created 28-04-2020 | Valid Till |
| Title DOP - Declaration of Performance (PDF, 2 MB) | Type DoP No. 0078 | Created 19-04-2016 | Valid Till |
| Title DOP - Declaration of Performance (PDF, 3 MB) | Type DoP No. 0146 | Created 06-11-2018 | Valid Till |
| Title DIBt, National German Approval (PDF, 1 MB) | Type Z-21.8-2049 | Created 13-07-2016 | Valid Till 13-07-2021 |
