fischer DUOPOWER DUOPOWER 8x65 S

The duo of power and intelligence

Price : 660.80 ₹

Available Product Variants

Top Features

Combination of two material components for more performance.
Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting).
Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole.
Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly.
With the appropriate screw for a perfect hold.

1 1

Variant	Art.-No. 538246	fischer DUOPOWER DUOPOWER 8x65 S
Drill diameter		8	[mm]
Min. drill hole depth		85	[mm]
Min. panel thickness		2x12.5	[mm]
Anchor length		65	[mm]
Min. bolt penetration		70	[mm]
Wood and chipboard screws		5.0x80	[mm]
Drive		PZ2
Quantity/pack		25	[St.]
Packaging		Foldingbox
GTIN (EAN-Code)		4048962262131
Price / Pack		660.80 ₹

Product Description

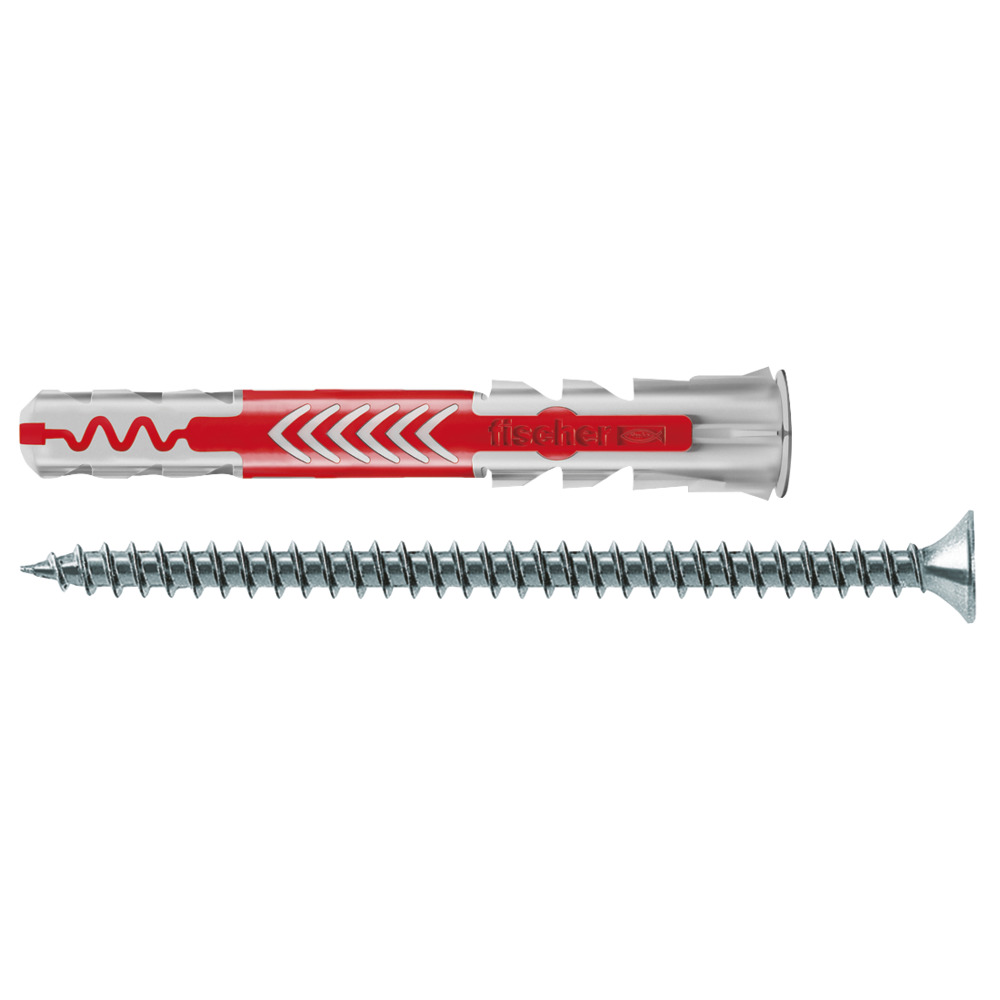

The fischer DUOPOWER offers very good hold values as a result of its 2 components: Depending on the building material, the grey components made from high quality nylon automatically activates the optimum product function (expansion, folding, knotting) for the best hold. The expansion wings of the red component support the secure expansion and offer additional security to the grey component. Easy screwing-in of the screw and correct "tightening" to close. No over-tightening of the screw. The preshaped edge on the plug head prevents the plug from slipping into the drill hole. The screws provided are optimally suited to the fischer expansion plug Duopower.

Advantages

Two component materials for top load values and intelligent functioning depending on the substrate.
Great feedback (feel-good factor) of the plug. You can feel exactly when the plug is installed perfectly.
The narrow plug rim prevents slipping into the drill hole.
The serrated anti-rotation feature prevents rotation in the drill hole during installation.

Application and Permission

Applications

TV consoles
Lighting
Shelves
Mirror cabinets
Letter boxes
Pictures
Fixing blinds
Curtain rails
Wash basin fixings
Plumbing and heating fixings
Bath and toilet installations
Wall cabinets
Range hood

Building materials

Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Plasterboard
Gypsum plasterboard and gypsum fibreboards
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete or similar
Natural stone
Chipboard
Solid panel made from gypsum
Solid brick made from lightweight concrete

You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality

The DUOPOWER is suitable for pre-positioned and push-through installation.
The duo of two different materials and its multiple functional abilities (expanding, folding, and knotting) extend the range of applications to additional materials with top loads.
The required screw length is given by the plug length + fixture thickness + 1x the screw diameter.
Suitable for wood and chipboard screws, as well as stud screws.
In the case of fixing boards, the threadless part of the screw must not be longer than the fixture.

Technical Data

Drill diameter	8	[mm]
Min. drill hole depth	85	[mm]
Min. panel thickness	2x12.5	[mm]
Anchor length	65	[mm]
Min. bolt penetration	70	[mm]
Wood and chipboard screws	5.0x80	[mm]
Drive	PZ2
Quantity/pack	25	[St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4048962262131

Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Load Table (PDF, 155 KB)
