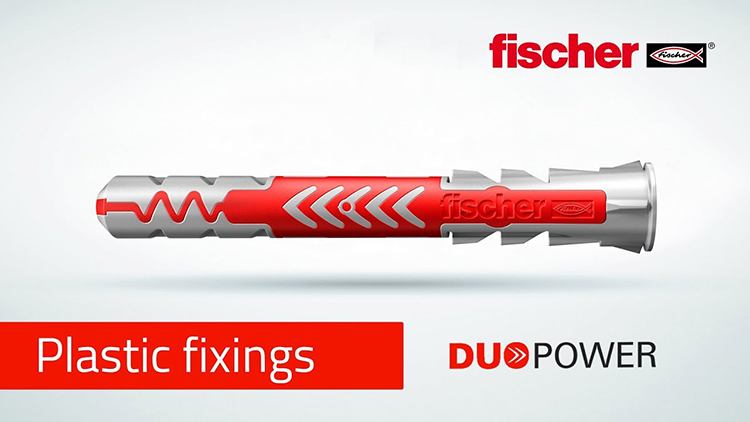

The fischer DUOPOWER is an intelligent 2-component plug with three product functions. The intelligent universal plug is suitable for fixing in all building materials. This allows a variety of applications with just one plug. The fischer DUOPOWER adjusts itself automatically to the building material and transfers the highest loads through the three product functions of folding, expanding and knotting. The very good feedback from the plug when screwing the screw in generates extra security. The fischer DUOPOWER 6 x 50, 8 x 65 and 10 x 80, because of the larger anchorage depth, are particularly suitable for fixings in hollow building materials, aerated concrete and for bridge plaster.
Product Description
Available Product Variants
Attributes
| Drill diameter | 8 [mm] |
| Min. drill hole depth | 85 [mm] |
| Min. panel thickness | 2x12.5 [mm] |
| Anchor length | 65 [mm] |
| Min. bolt penetration | 70 [mm] |
| Wood and chipboard screws | 5.0x80 [mm] |
| Drive | PZ2 |
| Contents | |
| Quantity/pack | 25 [St.] |
| Packaging | Foldingbox |
| GTIN (EAN-Code) | 4048962262131 |
Attributes
| Drill diameter | 8 [mm] |
| Min. drill hole depth | 60 [mm] |
| Min. panel thickness | 12.5 [mm] |
| Anchor length | 40 [mm] |
| Min. bolt penetration | 45 [mm] |
| Wood and chipboard screws | 5.0x55 [mm] |
| Drive | PZ2 |
| Contents | - |
| Quantity/pack | 50 [St.] |
| Packaging | Foldingbox |
| GTIN (EAN-Code) | 4048962235616 |
Application and Permission
You can find detailed information on building materials in the registration document.

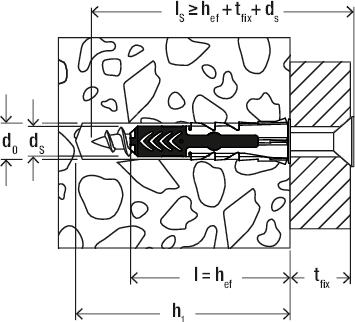

Assembly Instruction
Documents for Downloading
Additional Documents
System Components & Related Categories
System Components
