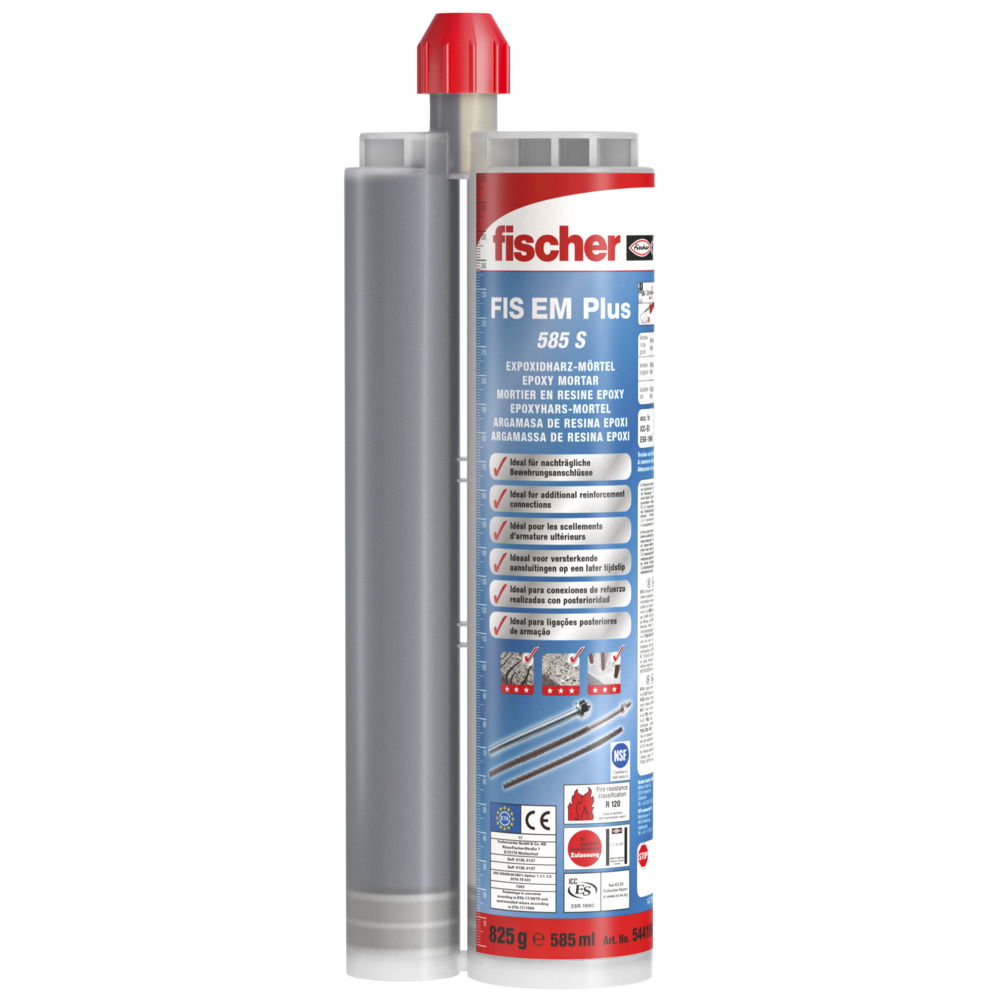

fischer Injection Mortar FIS EM PLUS 585 S

The powerful injection mortar for rebar connections and cracked concrete

Price : 4720.00 ₹

Available Product Variants

Top Features

FIS EM Plus with optimised formulation for improved load values in cracked and non-cracked concrete.
The ETA assessment guarantees a service life of 100 years, an external expert report even up to 120 years.
For rebar connections from diameter 8 to 40 mm.
Can be used with threaded rod FIS A or internal threaded anchor RG M I for temporary and removable fixing points.
FIS EM Plus is to be processed at temperatures down to -5°C.
More safety due to approvals for diamond drilled and water-filled drill holes as well as seismic applications of performance categories C1, C2.

1 1

Variant	Art.-No. 544166	fischer Injection Mortar FIS EM PLUS 585 S
ETA-approval
Languages on the cartridge		DE,EN,FR,NL,ES,PT
Contents		1-Cartridge-585-ml-2-x-Static-mixer-FIS-UMR
Quantity/pack		1	[St.]
GTIN (EAN-Code)		4048962312164
Price / Pack		4720.00 ₹

Product Description

Product Description The fischer injection mortar FIS EM Plus 390 S is a high-quality epoxy resin mortar for maximum load-bearing capacity in cracked and non-cracked concrete. Alongside the injection mortar, the injection system consists of reinforcement steel, the approved components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths. This enables the system to be ideally adjusted to the load to be supported. This optimises the use of materials. The epoxy resin mortar is suitable for fixings in indoor and outdoor areas such as shear connectors for concrete layers, high racks, or heavy-duty steel constructions.

Advantages

The optimised formulation of the epoxy mortar FIS EM Plus leads to improved load values in cracked and non-cracked concrete.
The ETA assessment guarantees a service life of 100 years. The IEA expert report even confirms a working life up to 120 years and thus underlines the reliability and durability of the FIS EM Plus.
The mortar can be used for rebar connections from diameter 8 to 40 mm.
With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.
Temporary and detachable fixing points are possible with the internal threaded anchor RG M I.
For practical use on the building site, FIS EM Plus can be processed at low temperatures down to -5° C.
The mortar is approved for diamond-drilled and water-filled drill holes as well as seismic applications of performance categories C1, C2 and thus offers safety under extreme conditions.

Application and Permission

Applications

Post-installed rebar connections
Jointers for concrete layers
Rim beam anchorings
Seismic applications
Anchorings in diamond-drilled or in waterfilled drill holes
Heavy steel constructions
Silo installations
Tall shelving
Sound barriers
Temporary or removable fixings (with internal threaded anchor RG M I)

Building materials

Approved for anchorings in:

Concrete C20/25 to C50/60, cracked and non-cracked Also suitable for:
Natural stone with dense structure * You can find detailed information on building materials in the registration document.

Permission

ETA-17/0979
ETA-17/1056, ETAG 001-5
DoP No. 0135
DoP No. 0137
DoP No. 0157
DoP No. 0173
ESR-1990
GS 3.2/18-020-2 Ä
Report No MRF 19 26082687/C

Assembly Instruction

Functionality

The epoxy mortar FIS EM Plus combined with the FIS A threaded rod, is suitable for pre-positioned and push-through installation and with the internal threaded anchor RG M I for pre-positioned installation.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
The mortar is injected bubble-free from the drill hole base.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
The anchor is set manually by lightly rotating it until it reaches the drill hole base.
During push-through installation, the annular gap between the anchor rod and attachment is filled with FIS EM Plus.

Technical Data

ETA-approval
Languages on the cartridge	DE,EN,FR,NL,ES,PT
Contents	1-Cartridge-585-ml-2-x-Static-mixer-FIS-UMR
Quantity/pack	1	[St.]
GTIN (EAN-Code)	4048962312164

Legend = Permission Available — = Permission not Available

Documents for Downloading

Additional Documents

Approvals

Title	Type	Created	Valid Till
ETA - European Technical Assessment (PDF, 5 MB) European Technical Assessment for fischer injection system FIS EM Plus, Bonded fastener for use in concrete	ETA-17/0979	17-06-2020
ETA - European Technical Assessment (PDF, 5 MB)	ETA-17/1056, ETAG 001-5	07-02-2020
DOP - Declaration of Performance (PDF, 8 MB)	DoP No. 0135	12-04-2018
DOP - Declaration of Performance (PDF, 6 MB)	DoP No. 0137	21-12-2017
DOP - Declaration of Performance (PDF, 13 MB)	DoP No. 0157	14-12-2018
DOP - Declaration of Performance (PDF, 3 MB)	DoP No. 0173	01-08-2019
ICC-approval (PDF, 876 KB)	ESR-1990	01-09-2019	30-09-2021
Test report (fire protection) (PDF, 20 MB)	GS 3.2/18-020-2 Ä	01-05-2018	31-05-2023
Test report (fire protection) (PDF, 2 MB)	Report No MRF 19 26082687/C	14-11-2019
