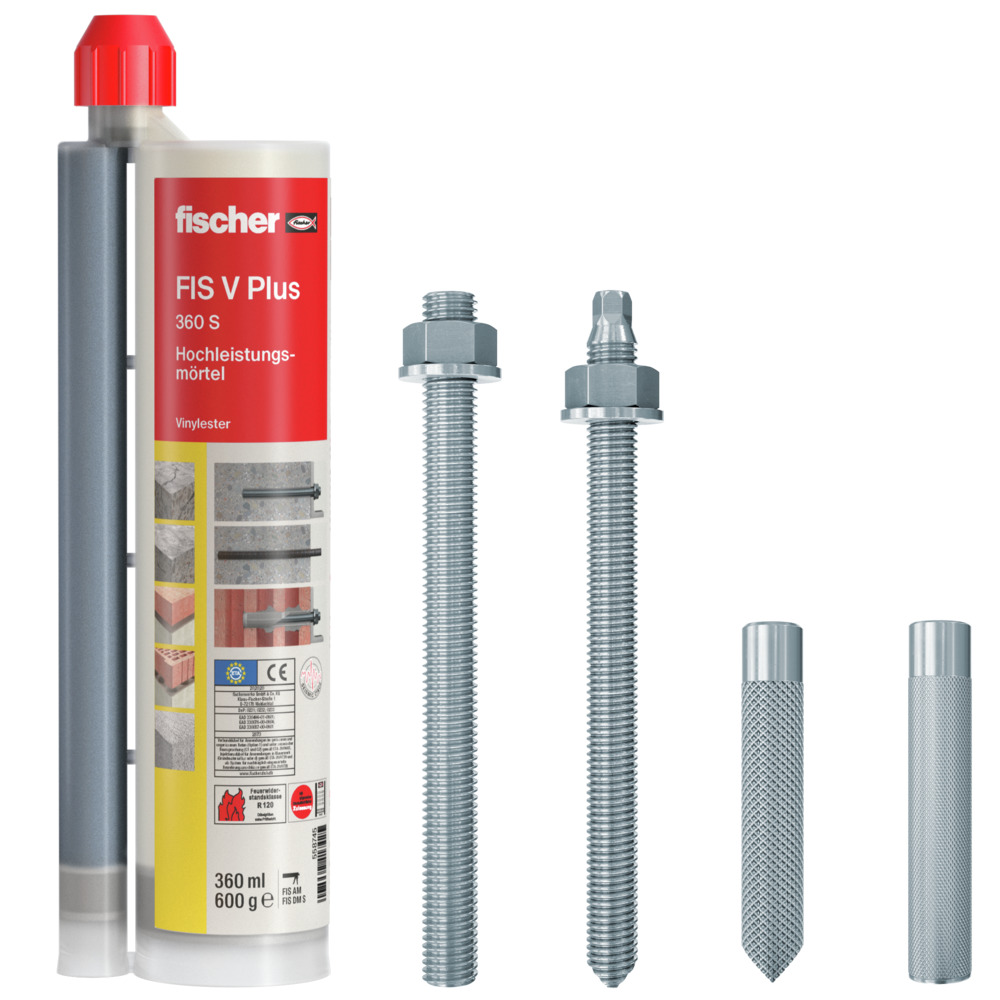

fischer Injection Mortar FIS V Plus IN 360 S (IN)

The powerful universal mortar for concrete and masonry.

Price : 1746.40 ₹
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 558744 fischer Injection Mortar FIS V Plus IN 360 S (IN)
ETA-approval
Contents 1-cartridge-360-ml,-2-x-FIS-MR-Plus
Quantity/pack 1 [St.]
GTIN (EAN-Code) 4048962301847
Price / Pack 1746.40 ₹

Product Description

The fischer high-performance mortar FIS V Plus is the universal all-rounder for the highest requirements. The styrene-free vinyl ester hybrid mortar with its numerous fixing elements is approved for fixations in cracked and non-cracked concrete as well as in masonry. However, the injection mortar is also used with the approved system components for rebar connections, the fischer remedial wall tie VBS 8, the fischer weather facing wall tie FWS II, and the stand-off installation system TherMax. The variant FIS VS Plus Low Speed enables an extended processing time at higher processing temperatures or a greater drill hole depth. The shorter hardening time of the variant FIS VW Plus High Speed enables swift work progress even at low temperatures.
Advantages
  • The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, ma­sonry and for special applications.
  • The ETA assessment for a service life of 100 years offers permanent safety for all applications.
  • The approved use in water-filled drill holes enables a wide range of applica­tions, even under harsh environmental conditions.
  • FIS VW Plus High Speed has a significantly shorter hardening time than FIS V Plus, which ensures swift work progress even at low temperatures.
  • The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.
  • The extensive range of accessories is ideally suited to the FIS V Plus injection mortar family, increases the great flexi­bility of the system and thus allows for a broad range of applications.

Application and Permission

Applications
  • Steelwork constructions
  • Timber constructions
  • Guard rails
  • Façades
  • Staircases
  • Steel brackets
  • Machines
  • Masts
  • Awnings
  • Canopies
  • Gates
  • Consoles
  • Pipelines
  • Gratings
  • Satellite antennas
Building materials

Approved for anchorings in:

  • Concrete C20/25 to C50/60, cracked and non-cracked
  • Hollow blocks made from lightweight concrete
  • Hollow blocks made from concrete
  • Vertically perforated brick
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Aerated concrete
  • Solid brick

Approved for:

Rebar connections Remedial wall tie VBS 8 Weather facing reconstruction system FWS II Stand-off installation Thermax

/* You can find detailed information on building materials in the registration document.

Permission

  • ETA-20/0603
  • ETA-20/0728
  • ETA-20/0729
  • DoP 0231
  • DoP 0232
  • DoP 0233
  • ESR-2786
  • 18050 /15511 /CT /FA
  • 20046/15515
  • 22044

Assembly Instruction

Functionality
  • FIS V is a 2-component injection mortar based on a vinyl ester hybrid concept.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
  • The mortar is extruded bubble free from the drill hole base.
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
  • The injection cartridges are quick and easy to use with the fischer dispensers.
  • Partially used cartridges can be reused by changing the static mixer.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Contents 1-cartridge-360-ml,-2-x-FIS-MR-Plus
Quantity/pack 1 [St.]
GTIN (EAN-Code) 4048962301847
Legend = Permission Available = Permission not Available

Documents for Downloading

Approvals

Title Type Created Valid Till
DOP - Declaration of Performance (PDF, 4 MB) DoP 0188 27-05-2020
Test report (fire protection) (PDF, 1 MB) Report on fire evaluation of post installed rebar connections with fischer FIS V / FIS VS Low Speed injection system 18050 /15511 /CT /FA 07-01-2019
Test report (fire protection) (PDF, 601 KB) Fire resistance of Injection system FIS V in masonry 21843_2 16-01-2019
Test report (fire protection) (PDF, 566 KB) 21843_3dekurz 12-08-2019
