Fischer

Advantages

The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for special applications.
The ETA assessment for a service life of 100 years offers permanent safety for all applications.
The approved use in water-filled drill holes enables a wide range of applications, even under harsh environmental conditions.
FIS VW Plus High Speed has a significantly shorter hardening time than FIS V Plus, which ensures swift work progress even at low temperatures.
The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.
The extensive range of accessories is ideally suited to the FIS V Plus injection mortar family, increases the great flexibility of the system and thus allows for a broad range of applications.

Variant

ETA-approval

Langauge on the cartridge

Contents

Quantity/pack

Price/pack

FIS V Plus IN 360 S (IN)

Art-Nr. 558744

-

1-cartridge-360-ml,-2-x-FIS-MR-Plus

1 [St.]

1746.40 ₹

Attributes

Legend = Permission Available — = Permission not Available

Applications

Building materials

Approved for anchorings in:

Approved for:

Rebar connections Remedial wall tie VBS 8 Weather facing reconstruction system FWS II Stand-off installation Thermax

/* You can find detailed information on building materials in the registration document.

Permissions

Functionality

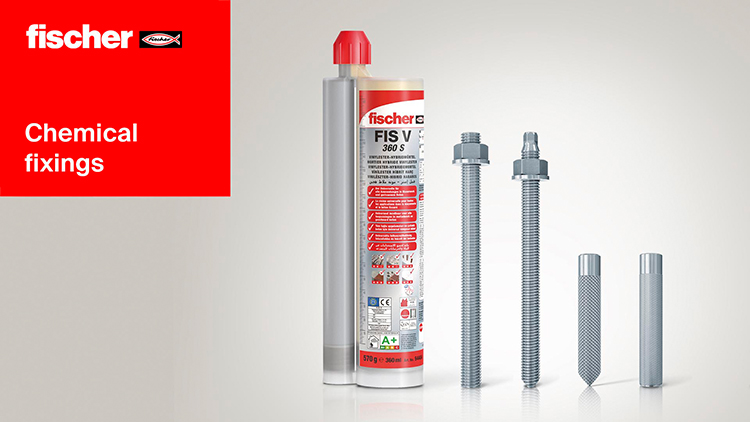

FIS V is a 2-component injection mortar based on a vinyl ester hybrid concept.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
The mortar is extruded bubble free from the drill hole base.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
The injection cartridges are quick and easy to use with the fischer dispensers.
Partially used cartridges can be reused by changing the static mixer.

Additional Documents

Approvals

Title	Type	Created
DOP - Declaration of Performance (PDF, 4 MB)	DoP 0188	27-05-2020
Test report (fire protection) (PDF, 1 MB) Report on fire evaluation of post installed rebar connections with fischer FIS V / FIS VS Low Speed injection system	18050 /15511 /CT /FA	07-01-2019
Test report (fire protection) (PDF, 601 KB) Fire resistance of Injection system FIS V in masonry	21843_2	16-01-2019
Test report (fire protection) (PDF, 566 KB)	21843_3dekurz	12-08-2019
