fischer Bolt Anchor FBN II 12/20 R stainless steel

The cost-efficient fixing for flexible use in non-cracked concrete

Price : 5852.80 ₹
Available Product Variants
Top Features
  • The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
  • If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
  • Component tolerances are balanced out with the long thread. In addition, FBN II is also suitable for stand-off installations. This increases flexibility.
  • Simple assembly due to few taps and minimal slippage.
  • Stainless steel: permanent safety in outdoor use.

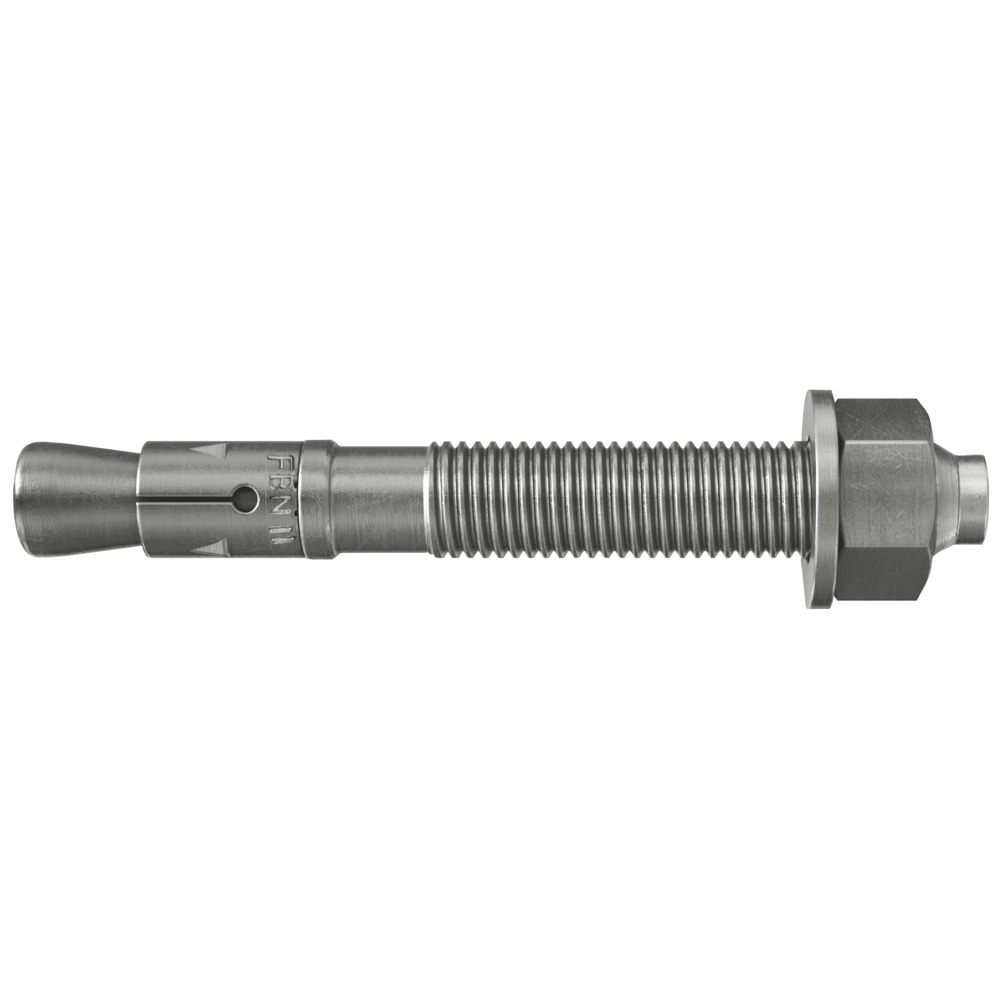

Product Picture

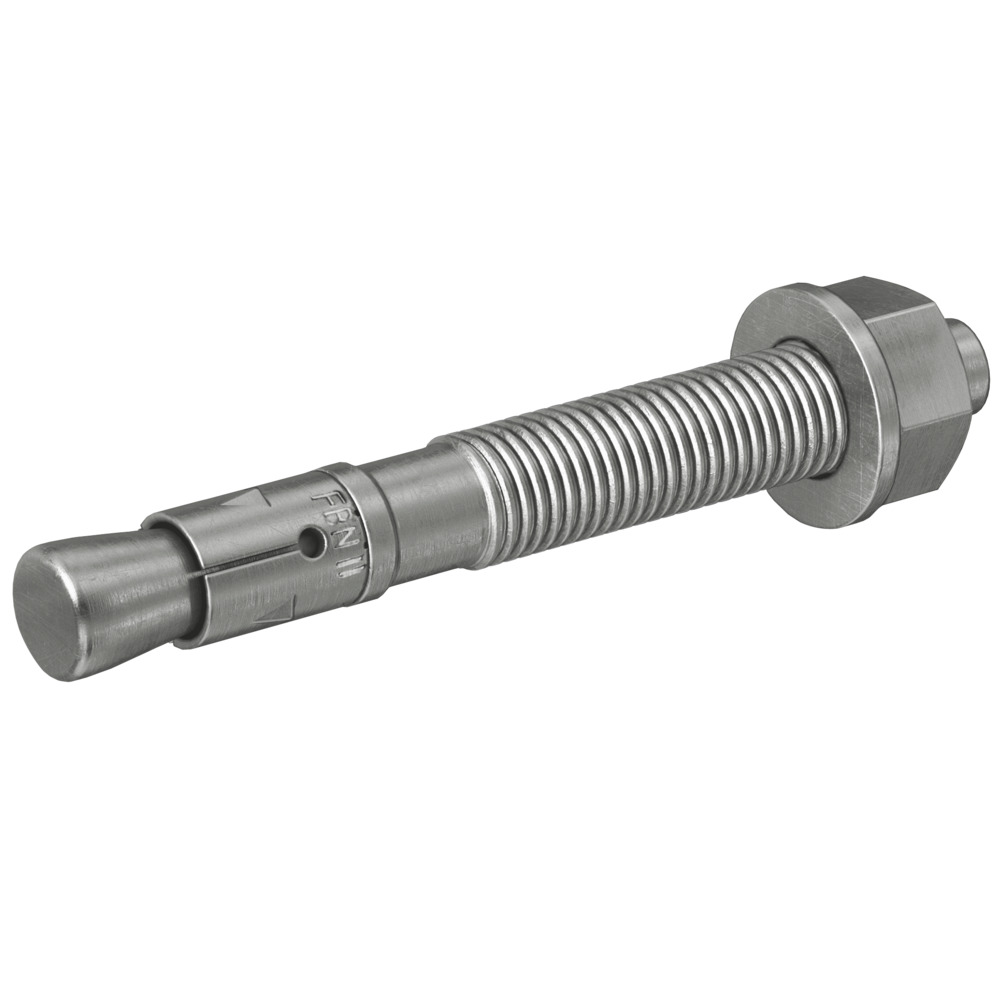

Product Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 560954 fischer Bolt Anchor FBN II 12/20 R stainless steel
Price / Pack 5852.80 ₹

Product Description

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.
Advantages
  • The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
  • Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
  • The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

Application and Permission

Applications
  • Steel constructions
  • Guard rails
  • Consoles
  • Ladders
  • Cable trays
  • Machines
  • Staircases
  • Gates
  • Façades
Building materials

Approved for:

  • Concrete C20/25 to C50/60, non-cracked

Also suitable for:

  • Concrete C12/15
  • Natural stone with dense structure

* You can find detailed information on building materials in the registration document.

Permission

  • ETA-07/0211
  • DoP 0192
  • DoP No. 0015

Assembly Instruction

Functionality
  • The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
  • Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
  • When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
  • The head embossing offers a simple control of the anchoring.
  • In the case of series installation, we recommend using the FABS bolt anchor setting tool.
