Product Description

Advantages

The rimless plug sleeve allows for the plug to be set as deep as required below the plaster to the bearing substrate to achieve the maximum load-bearing capacity.
As the plug only expands in two directions, it is possible to direct the expansion forces so that they run parallel to the edge of the building material by turning the plug. This allows for smaller edge distances.
The slimline plug geometry makes it easy to push the plug into the drill hole. For a fast and simple installation.
The anti-rotation lock prevents the plug rotating in the drill hole, thus guaranteeing a high level of installation safety.

Available Product Variants

Variant

Drill diameter

Anchor length

Min. drill hole depth

Wood and chipboard screws

Price/pack

S 5 PLUG

Art-Nr. 50105

5 [mm]

25 [mm]

35 [mm]

3-4 [mm]

231.28 ₹

Attributes

Drill diameter	5 [mm]
Anchor length	25 [mm]
Min. drill hole depth	35 [mm]
Wood and chipboard screws	3-4 [mm]
Quantity/pack	100 [St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4006209501054

To product variant

S 6 PLUG

Art-Nr. 50106

6 [mm]

30 [mm]

40 [mm]

4-5 [mm]

283.20 ₹

Attributes

Drill diameter	6 [mm]
Anchor length	30 [mm]
Min. drill hole depth	40 [mm]
Wood and chipboard screws	4-5 [mm]
Quantity/pack	100 [St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4006209501061

To product variant

S 8 PLUG

Art-Nr. 50108

8 [mm]

40 [mm]

55 [mm]

4.5-6 [mm]

424.80 ₹

Attributes

Drill diameter	8 [mm]
Anchor length	40 [mm]
Min. drill hole depth	55 [mm]
Wood and chipboard screws	4.5-6 [mm]
Quantity/pack	100 [St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4006209501085

To product variant

S 10 PLUG

Art-Nr. 50110

10 [mm]

50 [mm]

70 [mm]

6-8 [mm]

283.20 ₹

Attributes

Drill diameter	10 [mm]
Anchor length	50 [mm]
Min. drill hole depth	70 [mm]
Wood and chipboard screws	6-8 [mm]
Quantity/pack	50 [St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4006209501108

To product variant

S 12 PLUG

Art-Nr. 50112

12 [mm]

60 [mm]

80 [mm]

8-10 [mm]

330.40 ₹

Attributes

Drill diameter	12 [mm]
Anchor length	60 [mm]
Min. drill hole depth	80 [mm]
Wood and chipboard screws	8-10 [mm]
Quantity/pack	25 [St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4006209501122

To product variant

S 14 PLUG

Art-Nr. 50114

14 [mm]

75 [mm]

90 [mm]

10-12 [mm]

679.68 ₹

Attributes

Drill diameter	14 [mm]
Anchor length	75 [mm]
Min. drill hole depth	90 [mm]
Wood and chipboard screws	10-12 [mm]
Quantity/pack	20 [St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4006209501146

To product variant

S 16 PLUG

Art-Nr. 50116

16 [mm]

80 [mm]

100 [mm]

1/2" [mm]

519.20 ₹

Attributes

Drill diameter	16 [mm]
Anchor length	80 [mm]
Min. drill hole depth	100 [mm]
Wood and chipboard screws	1/2" [mm]
Quantity/pack	10 [St.]
Packaging	Foldingbox
GTIN (EAN-Code)	4006209501160

To product variant

S 5 loosely 10000 pieces

Art-Nr. 51105

5 [mm]

25 [mm]

35 [mm]

3-4 [mm]

16992.00 ₹

Attributes

Drill diameter	5 [mm]
Anchor length	25 [mm]
Min. drill hole depth	35 [mm]
Wood and chipboard screws	3-4 [mm]
Quantity/pack	10.000 [St.]
Packaging	-
GTIN (EAN-Code)	4006209511053

To product variant

S 6 loosely packed 10000 pieces

Art-Nr. 51106

6 [mm]

40 [mm]

4-5 [mm]

13216.00 ₹

Attributes

Drill diameter	6 [mm]
Anchor length
Min. drill hole depth	40 [mm]
Wood and chipboard screws	4-5 [mm]
Quantity/pack	10.000 [St.]
Packaging	-
GTIN (EAN-Code)	4006209511060

To product variant

S 8 loosely packed 5000 pieces

Art-Nr. 51108

8 [mm]

55 [mm]

4.5-6 [mm]

17700.00 ₹

Attributes

Drill diameter	8 [mm]
Anchor length
Min. drill hole depth	55 [mm]
Wood and chipboard screws	4.5-6 [mm]
Quantity/pack	5.000 [St.]
Packaging	-
GTIN (EAN-Code)	4006209511084

To product variant

S 10 loosely packed 2.500 pieces

Art-Nr. 51110

10 [mm]

70 [mm]

6-8 [mm]

11210.00 ₹

Attributes

Drill diameter	10 [mm]
Anchor length
Min. drill hole depth	70 [mm]
Wood and chipboard screws	6-8 [mm]
Quantity/pack	2.500 [St.]
Packaging
GTIN (EAN-Code)	4006209511107

To product variant

Legend = Permission Available — = Permission not Available

Application and Permission

Applications

Pictures
Lighting
Skirting
Light shelves
Mirror cabinets
Letter boxes
Motion detectors
Information boards
Curtain rails
Electrical installations

Building materials

Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick made from lightweight concrete
Solid brick

You can find detailed information on building materials in the registration document.

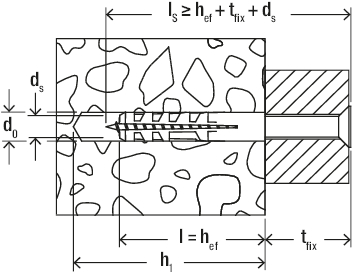

Assembly Instruction

Functionality

The expansion plug S is suitable for pre-positioned and push-through installation.
When turning in the screw, the expansion plug S expands in two directions, thus providing a secure anchoring in the building material.
The required screw length is given by the plug length + plaster and/or insulation material thickness + fixture thickness + 1 x screw diameter.
Suitable for wood and chipboard screws.
The edge distance must be at least one plug length.
For installations close to the edge, turn the plug so that the expansion force acts parallel to the edge.
