Drop-in Anchor EA II

The cost-effective hammerset anchor with a rim for quick and easy installation

The fischer Hammerset anchor EA II is an internal threaded anchor made of zinc-plated steel. The Hammerset anchor is set flush to the surface of the anchoring base using the hammer. With the setting tool EHS Plus or the machine setting tool EMS the sleeve is expanded by driving in the internal rod and expands against the drill hole wall. For correct expansion to take place, no torque must be applied to the screw or the threaded rod. The fischer Hammerset anchor EA II is ideal for fixing sprinkler systems, gratings, and consoles in internal areas with approval.

To all Variants
Product Picture

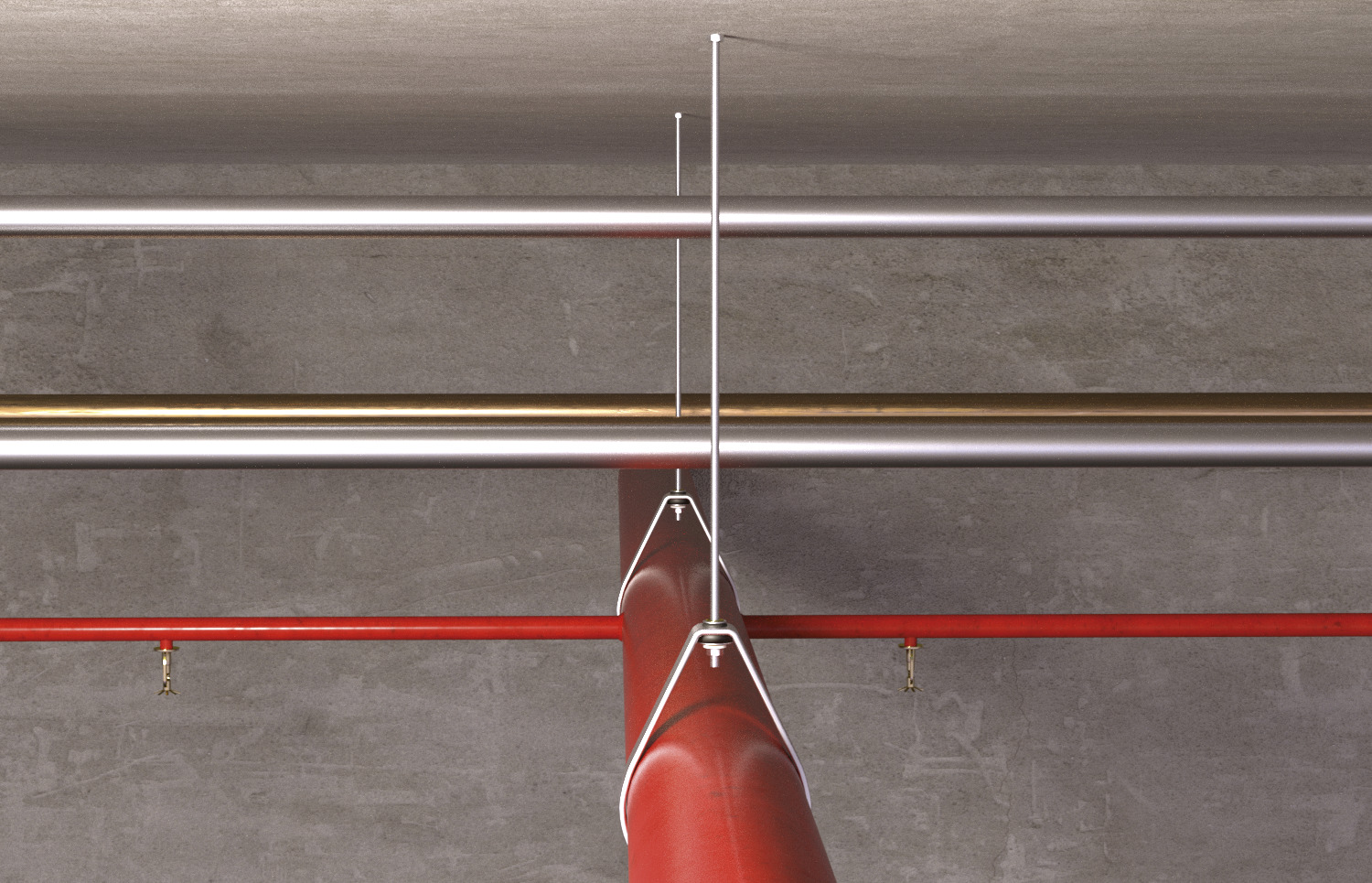

Application Image

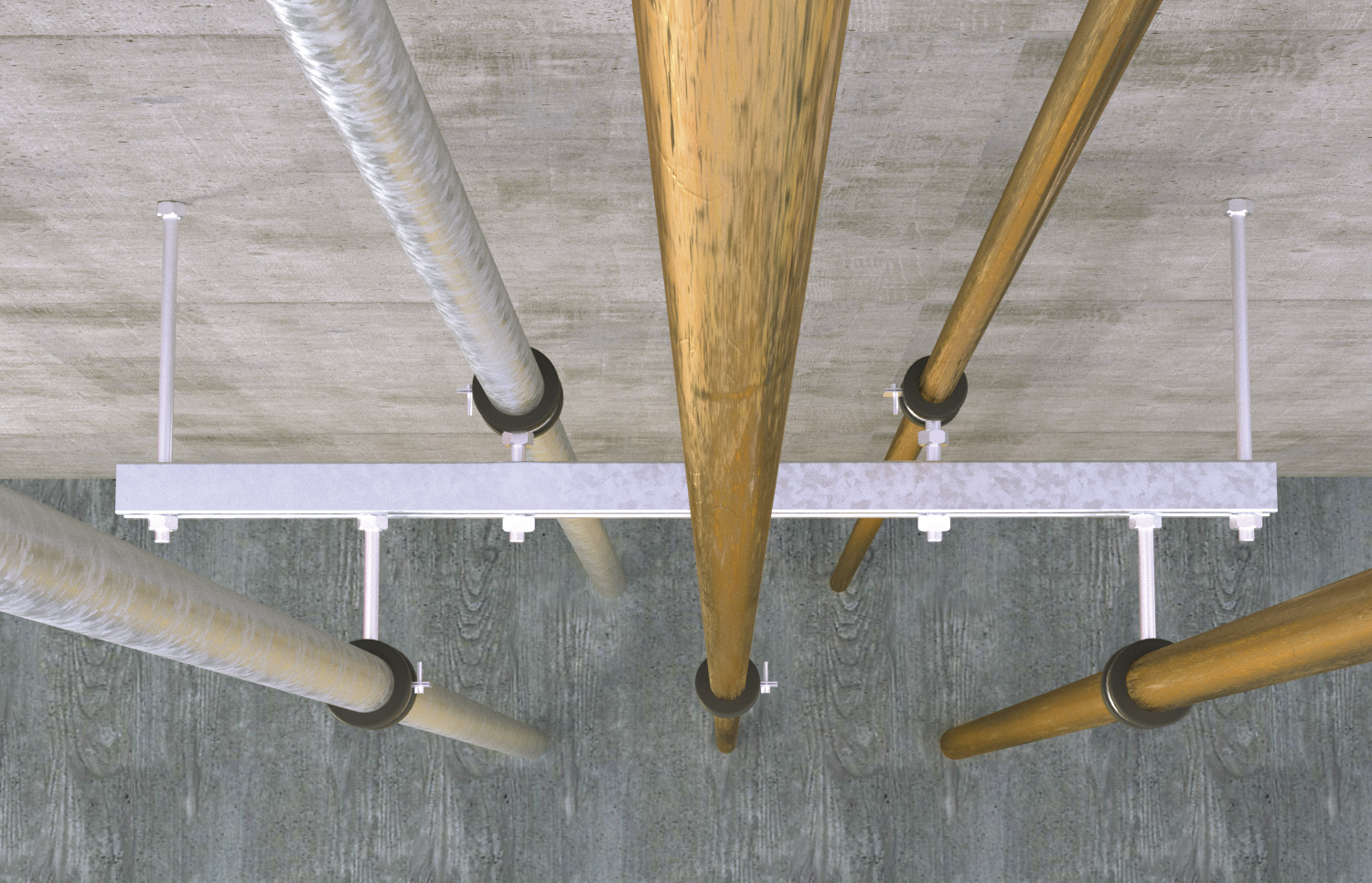

Application Image
Product Picture
Application Image
Application Image
1   1

Product Description

Advantages
  • The embossed rim prevents the anchor sleeve from slipping, thus ensuring a trouble-free hammerset installation.
  • The metric internal thread means that it is possible to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
  • The EMS machine setting tool allows for effortless installation, particularly in the case of series installations.
  • The embossing that is applied when expanding with the EHS Plus setting tool offers a simple control of the anchoring and provides increased safety.
  • Fixing point at hef 25 mm prevents anchor of falling out of the drill hole before being expanded.
  • The black fixing point prevents the anchor from falling out of the drill hole during overhead installation.

Available Product Variants

Variant
Price/pack
EA II M10 electro zinc plated
Art-Nr. 560967

1132.80 ₹

EA II M10x25
Art-Nr. 560965

1038.40 ₹

EA II M10X30 electro zinc plated
Art-Nr. 560966

1062.00 ₹

EA II M12 electro zinc plated
Art-Nr. 560969

1085.60 ₹

EA II M12x25
Art-Nr. 560968

1274.40 ₹

EA II M6 electro zinc plated
Art-Nr. 560961

1340.48 ₹

EA II M8x25
Art-Nr. 560962

2265.60 ₹

EA II M8X30 electro zinc plated
Art-Nr. 560963

1529.28 ₹

EA II M8X40 electro zinc plated
Art-Nr. 560964

920.40 ₹

Legend = Permission Available — = Permission not Available

Application and Permission

Applications
  • Pipelines and ventilation ducts
  • Sprinkler systems
  • Cable conduits and wires
  • Gratings
  • Steel constructions
  • Machines
  • Consoles
  • Shuttering props
Building materials

Approved for:

  • Concrete C20/25 to C50/60, cracked, for the multiple fixings of non-load-bearing systems
  • Concrete C20/25 to C50/60, non-cracked Also suitable for:
  • Concrete C12/15
  • Natural stone with dense structure

* You can find detailed information on building materials in the registration document.

Permissions
  • ETA-07/0135
  • ETA-07/0142
  • DoP No. 0003
  • DoP No. 0005
  • DoP No. 0044
  • DoP No. 0069

Assembly Instruction

Functionality
  • The EA II is suitable for pre-positioned installation.
  • Position the hammerset anchor in the drill hole and drive in flush to the surface of the anchor base using the hammer.
  • The sleeve is then expanded by driving in the internal bolt with the EHS Plus setting tool (alternative: EMS machine setting tool), and expanded against the drill hole wall.
  • The setting tools must sit on the rim of the anchor to ensure correct expansion.

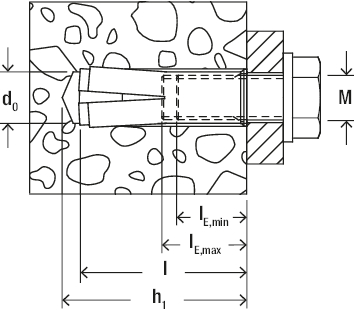

Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 2 MB) European Technical Assessment for fischer Hammerset anchor EA II ETA-07/0135 09-12-2016
ETA - European Technical Assessment (PDF, 2 MB) European Technical Assessment for fischer Hammerset anchor EA II ETA-07/0142 09-12-2016
DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance Hammerset anchor EA II, according European Technical Assessment ETA-07/0142 DoP No. 0003 14-11-2014
DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance Hammerset anchor EA II, according European Technical Assessment ETA-07/0135 DoP No. 0005 03-02-2015
DOP - Declaration of Performance (PDF, 1 MB) DoP No. 0044 15-12-2016
DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance Hammerset anchor EA II, according European Technical Assessment ETA-07/0135 DoP No. 0069 15-12-2016
Factory Mutual (PDF, 128 KB)
